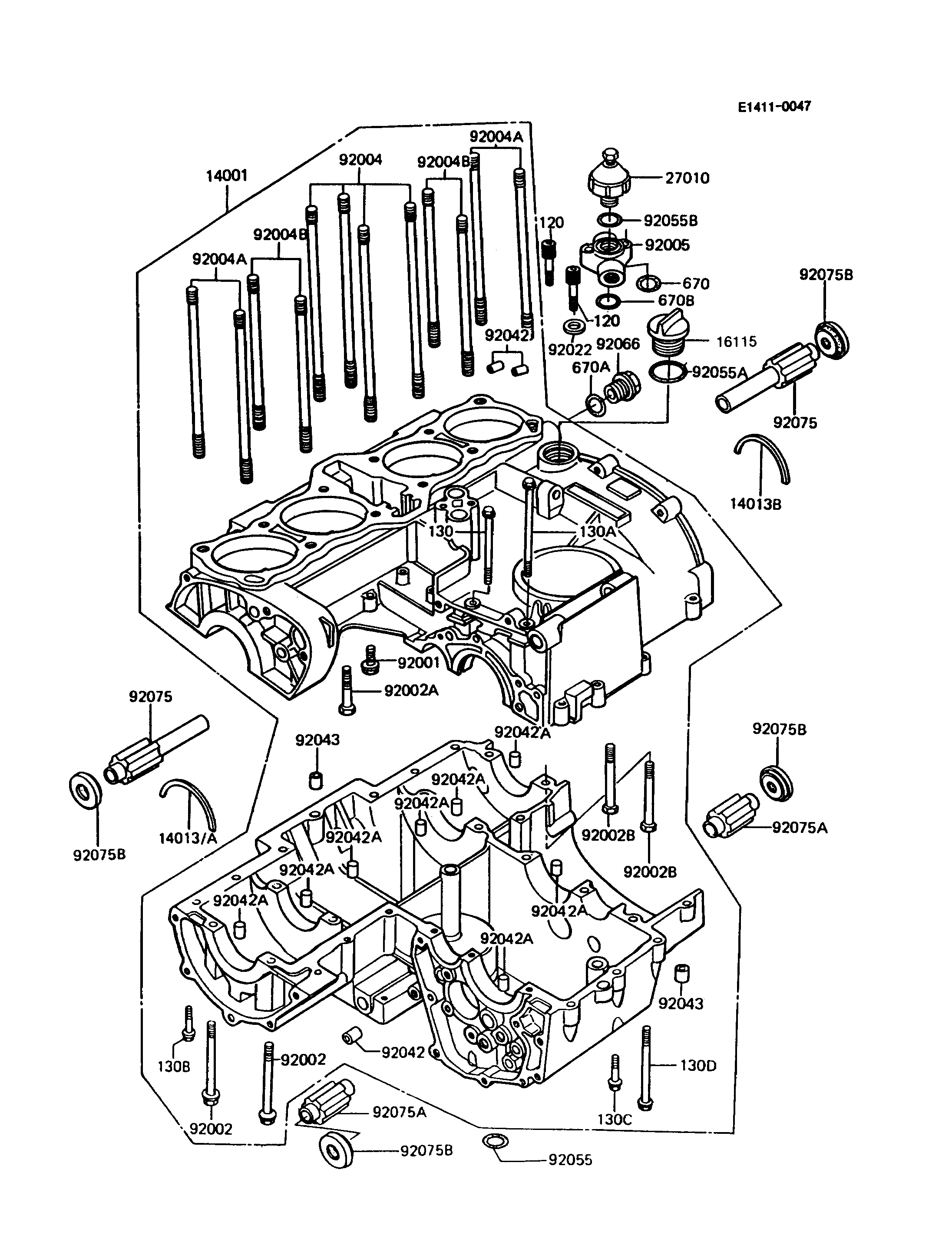

1995 Police 1000 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SET-CRANKCASE,SILVER 14001 14001-5099 1
RING-POSITION,T=1.90 14013 14013-013 1
RING-POSITION,T=1.98 14013A 14013-1004 1
RING-POSITION,T=1.98 14013B 14013-1005 1
CAP-OIL FILLER 16115 16115-1062 1
SWITCH,OIL PRESSURE 27010 27010-1013 1
BOLT,FLANGED,8X16 92001 92001-1349 1
BOLT,8X95 92002 92002-1077 2
BOLT,8X72 92002A 92002-1329 8
BOLT,8X80 92002B 92002-1649 2
STUD,10X167 92004 92004-1002 4
STUD,10X158 92004A 92004-1003 4
STUD,10X133 92004B 92004-1004 4
FITTING,OIL PRESSURE SWITCH 92005 92005-1030 1
WASHER,8.2X16X1 92022 92022-1086 1
PIN,DOWEL,6.3X8X14 92042 92042-007 6
PIN,DOWEL,6X16 92042A 92042-016 10
PIN,DOWEL,10X14 92043 92043-1037 2
RING-O,OD=18 92055 92055-048 1
RING-O,31.5X2.6 92055A 92055-049 1
RING-O,19.5X1.5 92055B 92055-055 1
PLUG,14X12 92066 92066-021 1
DAMPER,ENGINE MOUNT,UPP 92075 92075-1272 2
DAMPER,ENGINE MOUNT,LWR 92075A 92075-1273 2
DAMPER,ENGINE MOUNT,SIDE 92075B 92075-1274 4
BOLT-SOCKET 120 120Z0835 2
BOLT-FLANGED 130 130Y06100 1
BOLT-FLANGED 130A 130Y06115 1
BOLT-FLANGED 130B 130Y0640 3
BOLT-FLANGED 130C 130Y0655 2
BOLT-FLANGED 130D 130Y0695 3
O RING,9MM 670 670B1509 1
O RING,15MM 670A 670B2015 1
O RING,18MM 670B 670B2018 2
