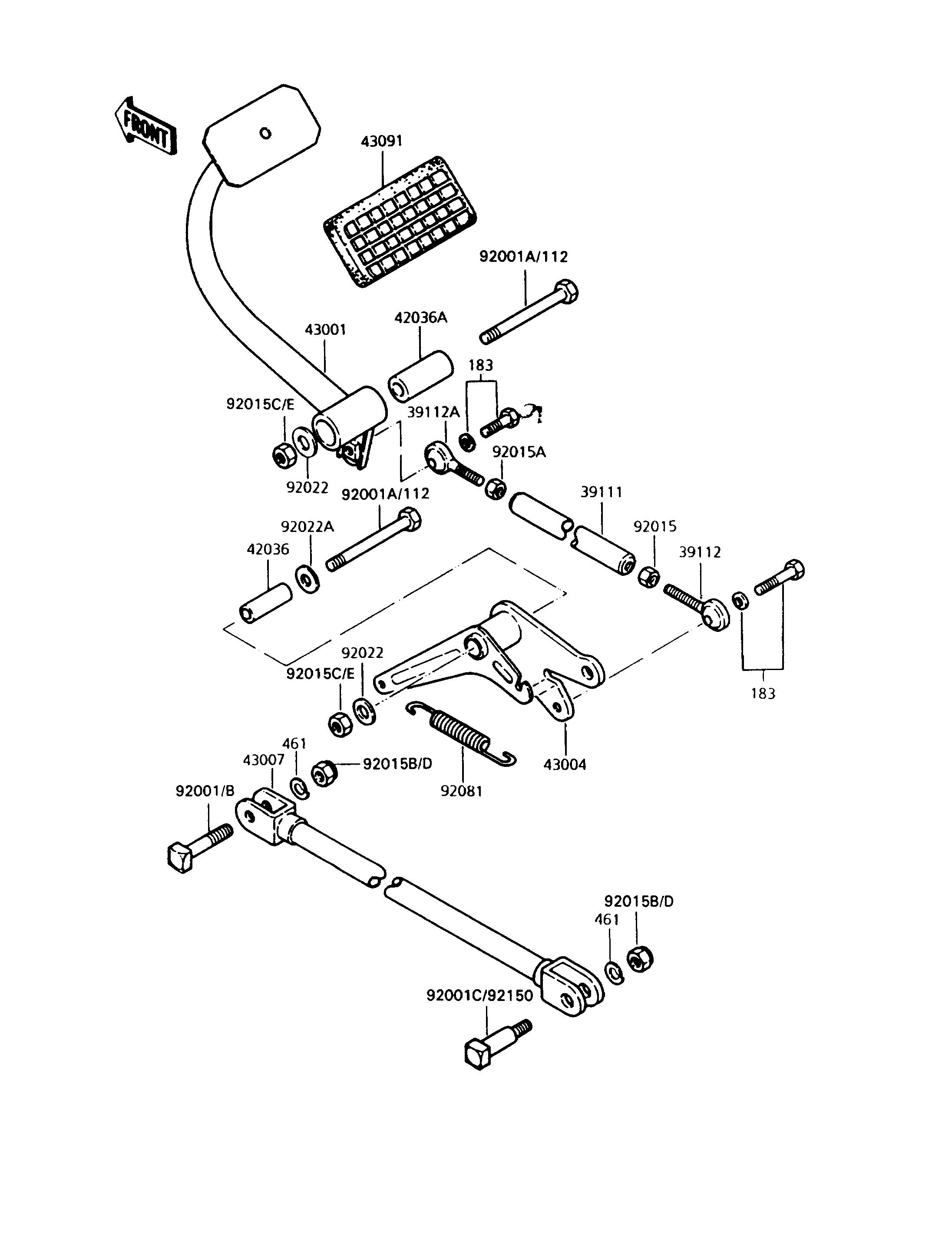

1995 Police 1000 - Brake Pedal/Torque Link
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ROD-TIE,L=360 | 39111 | 39111-4002 | 1 | ||
RODEND-TIE,RH THREAD | 39112 | 39112-1001 | 1 | ||
RODEND-TIE,LH THREAD | 39112A | 39112-1002 | 1 | ||
SLEEVE | 42036 | 42036-4005 | 1 | ||
SLEEVE,CHANGE LEVER | 42036A | 42036-4006 | 1 | ||
LEVER-BRAKE,PEDAL | 43001 | 43001-4015 | 1 | ||
SHAFT-BRAKE,PEDAL | 43004 | 43004-4002 | 1 | ||
ROD-TORQUE,RR | 43007 | 43007-1015 | 1 | ||
RUBBER,BRAKE PEDAL | 43091 | 43091-002 | 1 | ||
BOLT,FLANGED,10X85 | 92001A | 92001-1619 | 2 | ||
BOLT,10X45,BLACK | 92001B | 92001-1645 | 1 | ||
BOLT,10X37,BLACK | 92001C | 92001-1646 | 1 | ||
NUT,RH THREAD | 92015 | 92015-1005 | 1 | ||
NUT,LH THREAD | 92015A | 92015-1006 | 1 | ||
NUT,LOCK,10MM,BLACK | 92015B | 92015-1189 | 2 | ||
NUT,LOCK,10MM | 92015C | 92015-1376 | 2 | ||
WASHER,10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
WASHER,10.5X22X4.5 | 92022A | 92022-1022 | 1 | ||
SPRING,BRAKE PEDAL | 92081 | 92081-1296 | 1 | ||
BOLT-UPSET-WS-SMALL | 183 | 183G0825 | 2 | ||
WASHER-SPRING,10MM | 461 | 461F1000 | 2 |
