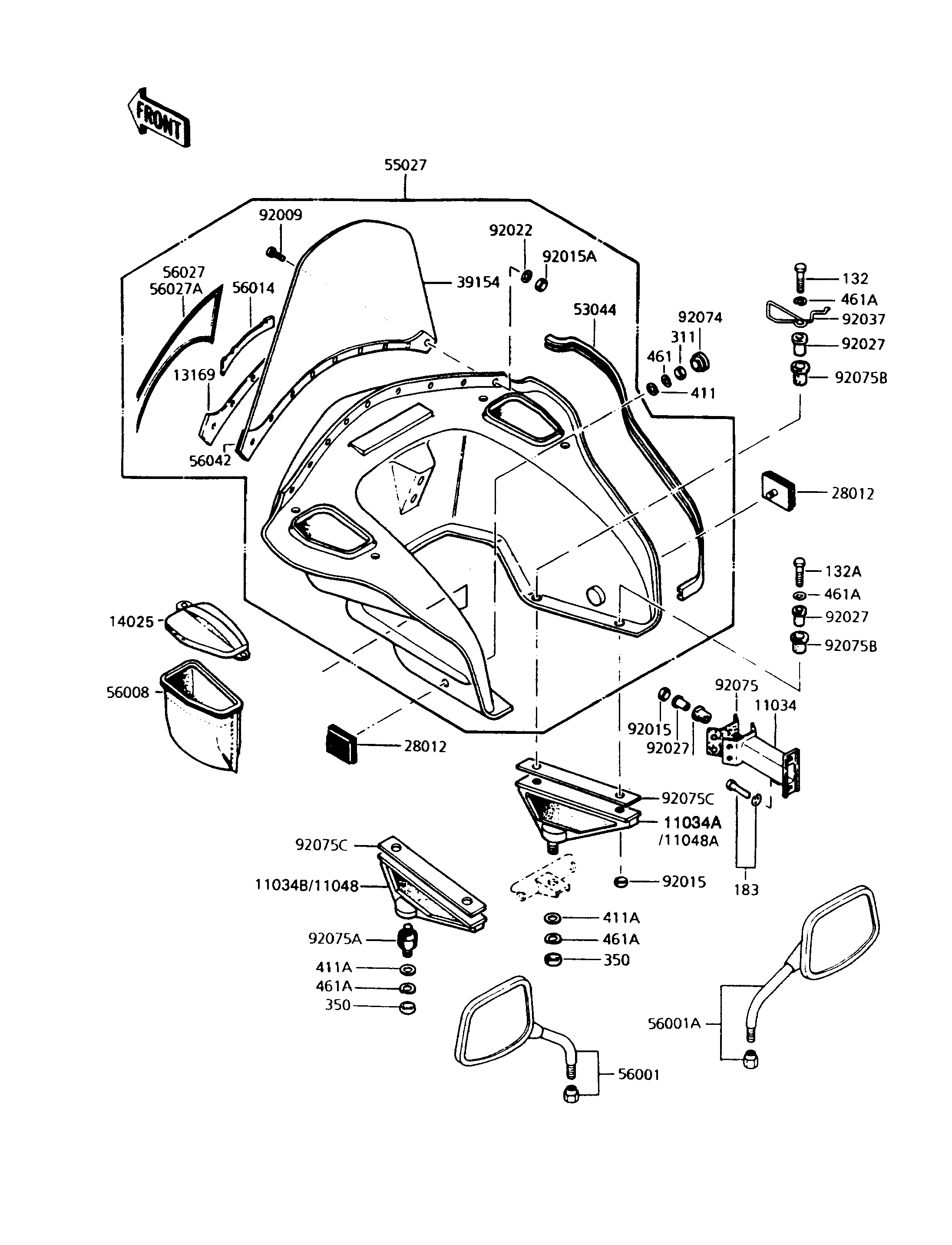

1995 Police 1000 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWLING,FR 11034 11034-4089 1
BRACKET,COWLING,LH 11048 11048-1470 1
BRACKET,COWLING,RH 11048A 11048-1471 1
PLATE,WINDSHIELD 13169 13169-4014 1
COVER,BAG 14025 14025-4013 2
REFLECTOR-REFLEX 28012 28012-1003 2
WINDSHIELD 39154 39154-4003 1
TRIM,COWLING 53044 53044-4001 2
COWLING-ASSY,J.WHITE 55027 55027-4003-8C 1
MIRROR-ASSY,LH 56001 56001-1368 1
MIRROR-ASSY,RH 56001A 56001-1369 1
BAG 56008 56008-4003 2
EMBLEM,GOLD 56014 56014-4011 1
PATTERN,PINSTRIPE,RH 56027 56027-4055 1
PATTERN,PINSTRIPE,LH 56027A 56027-4056 1
ADHESIVE 56042 56042-4003 1
SCREW,PLASTIC,5X28 92009 92009-4005 9
NUT,LOCK,8MM 92015 92015-1124 4
NUT,PLASTIC,5MM 92015A 92015-4014 9
WASHER,PLAIN,5MM,PLASTIC 92022 92022-4015 9
COLLAR 92027 92027-4015 6
CLAMP,COWLING HARNESS 92037 92037-4005 1
PLUG,25X2.5 92074 92074-027 2
DAMPER,COWLING FITTING 92075 92075-1179 1
DAMPER,COWLING BRACKET 92075A 92075-4013 2
DAMPER 92075B 92075-4020 6
DAMPER,COWLING BRACKET 92075C 92075-4033 2
BOLT-FLANGED-SMALL 132 132E0830 2
BOLT-FLANGED-SMALL 132A 132E0835 2
BOLT-UPSET-WS-SMALL 183 183G0816 2
NUT-HEX 311 311B0500 2
NUT-UNF INSERT 350 350BA1000 2
WASHER-PLAIN,5MM 411 411B0500 2
WASHER-PLAIN,8MM 411A 411B0800 2
WASHER-SPRING,5MM 461 461F0500 2
WASHER-SPRING,8MM 461A 461F0800 2
