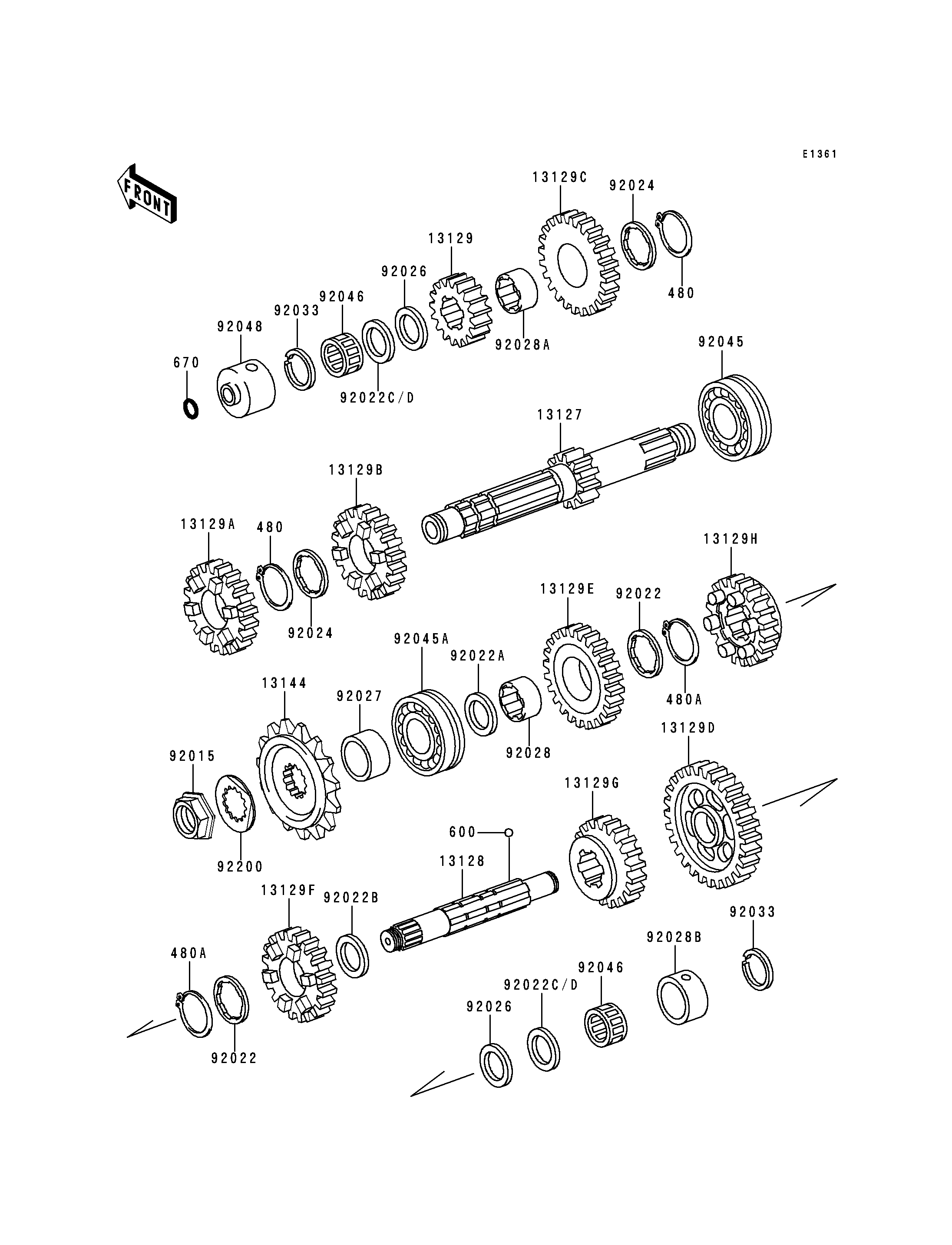

1996 Police 1000 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480
480A
480A
600
670
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
13129H
13144
92015
92022
92022
92022A
92022B
92022C
92022C
92022D
92022D
92024
92024
92026
92026
92027
92028
92028A
92028B
92033
92033
92045
92045A
92046
92046
92048
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,28MM 480 480J2800 2
CIRCLIP-TYPE-C,32MM 480A 480J3200 2
BALL-STEEL,3/16" 600 600A0600 3
O RING,8MM 670 670B1508 1
SHAFT-TRANSMISSION INPUT,14T 13127 13127-1034 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1048 1
GEAR,INPUT 2ND,18T 13129 13129-1235 1
GEAR,INPUT 3RD,21T 13129A 13129-1236 1
GEAR,INPUT 4TH,23T 13129B 13129-1237 1
GEAR,INPUT TOP,25T 13129C 13129-1238 1
GEAR,OUTPUT LOW,37T 13129D 13129-1239 1
GEAR,OUTPUT 2ND,33T 13129E 13129-1240 1
GEAR,OUTPUT 3RD,30T 13129F 13129-1241 1
GEAR,OUTPUT 4TH,27T 13129G 13129-1242 1
GEAR,OUTPUT TOP,26T 13129H 13129-1243 1
SPROCKET-OUTPUT,15T 13144 13144-1042 1
NUT,20MM 92015 92015-1210 1
WASHER,TOOTHED,30X42X1.4 92022 92022-1218 2
WASHER,28.3X42X2.9 92022A 92022-1219 1
WASHER,32.3X42X3 92022B 92022-1220 1
WASHER,22.3X35X1.6 92022C 92022-212 2
WASHER,22.3X35X1.2 92022D 92022-213 AR
WASHER,TOOTHED,26X35.5X1.5 92024 92024-042 2
SPACER,22X35.5X1.0 92026 92026-1020 2
COLLAR,28X40X20.5 92027 92027-1339 1
BUSHING,2ND GEAR 92028 92028-1112 1
BUSHING,TOP GEAR 92028A 92028-1124 1
BUSHING,OUTPUT SHAFT 92028B 92028-123 1
RING-SNAP,20X25.5X1.2 92033 92033-025 2
BEARING-BALL,5305NSH2 92045 92045-1028 1
BEARING-BALL 92045A 92045-1186 1
BEARING-NEEDLE,FWF-223014 92046 92046-031 2
RACE,DRIVE SHAFT BEARING 92048 92048-1012 1
WASHER,TOOTHED,23.9X45X1.0 92200 92200-1234 1
