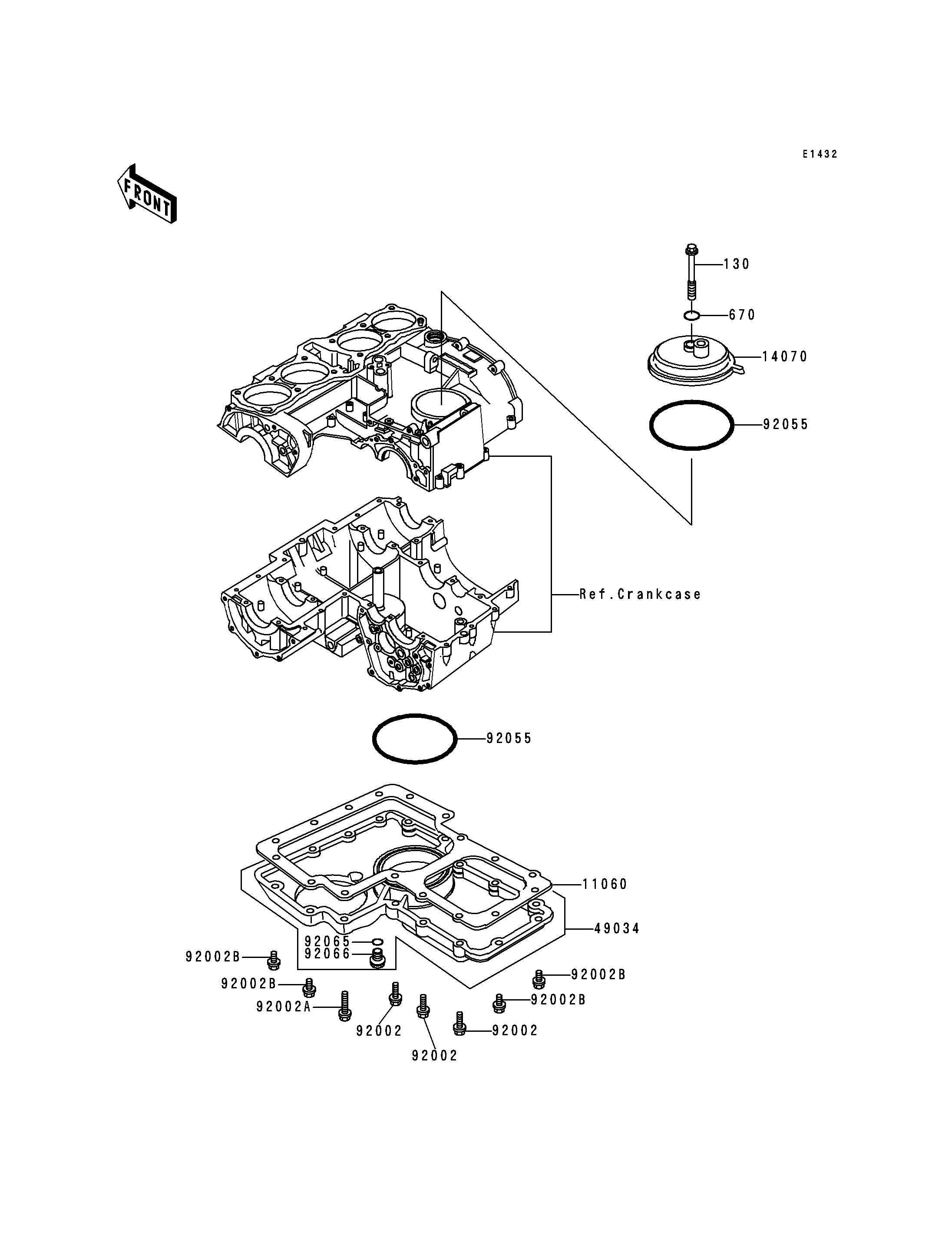

1996 Police 1000 - Breather Cover/Oil Pan
130
670
11060
14070
49034
92002
92002
92002
92002A
92002B
92002B
92002B
92002B
92055
92055
92065
92066
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130Z0870 | 1 | ||
| O RING,8MM | 670 | 670B1508 | 1 | ||
| GASKET,OIL PAN | 11060 | 11060-1074 | 1 | ||
| BODY-BREATHER,BLACK | 14070 | 14070-1010 | 1 | ||
| PAN-OIL | 49034 | 49034-5018 | 1 | ||
| BOLT,FLANGED,6X35 | 92002 | 92002-1051 | 3 | ||
| BOLT,6X45 | 92002A | 92002-1088 | 1 | ||
| BOLT,6X25 | 92002B | 92002-1089 | 13 | ||
| RING-O,91.6X3.4 | 92055 | 92055-052 | 2 | ||
| GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 |
