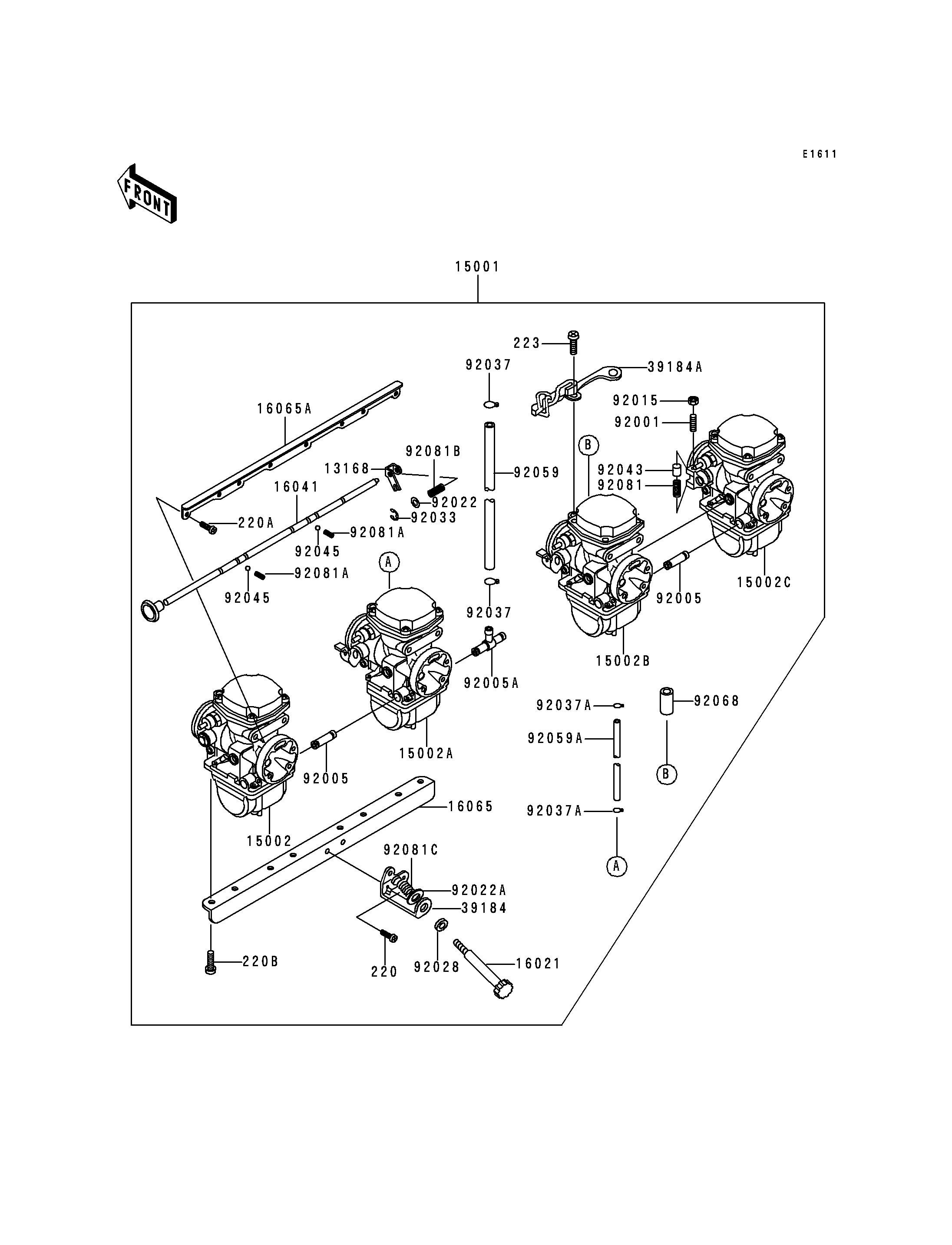

1996 Police 1000 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
220
220A
220B
223
13168
15001
15002
15002A
15002B
15002C
16021
16041
16065
16065A
39184
39184A
92001
92005
92005
92005A
92015
92022
92022A
92028
92033
92037
92037
92037A
92037A
92043
92045
92045
92059
92059A
92068
92081
92081A
92081A
92081B
92081C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,5X8 220 220B0508 1
SCREW-PAN-CROS 220A 220B0510 8
SCREW-PAN-CROS,6X14 220B 220B0614 8
SCREW-PAN-WS-CROS 223 223B0514 2
LEVER,CHOKE 13168 13168-1091 4
CARBURETOR-ASSY 15001 15001-1929 1
CARBURETOR,LH,OUTSIDE 15002 15002-1258 1
CARBURETOR,LH,INSIDE 15002A 15002-1259 1
CARBURETOR,RH,INSIDE 15002B 15002-1260 1
CARBURETOR,RH,OUTSIDE 15002C 15002-1261 1
SCREW-THROTTLE STOP 16021 16021-1103 1
SHAFT-CARBURETOR,CHOKE 16041 16041-1024 1
HOLDER-CARBURETOR,LWR 16065 16065-1043 1
HOLDER-CARBURETOR,UPP 16065A 16065-1044 1
BRACKET-ASSY,IDLING ADJUSTER 39184 39184-1007 1
BRACKET-ASSY,THROTTLE CABLE 39184A 39184-1013 1
BOLT,ADJUSTING 92001 92001-1447 3
FITTING,FUEL,I-TYPE 92005 92005-1035 2
FITTING,FUEL,T-TYPE 92005A 92005-1036 1
NUT,THROTTLE VALVE ADJUSTING 92015 92015-1119 3
WASHER,SPRING 92022 92022-1255 4
WASHER,THROTTLE STOP SCREW 92022A 92022-1491 1
BUSHING,IDLING ADJUSTER 92028 92028-1266 1
RING-SNAP,E-TYPE 92033 92033-1066 4
CLAMP,TUBE 92037 92037-1184 2
CLAMP,BREATHER TUBE 92037A 92037-174 2
PIN,THROTTLE VALVE ADJUST 92043 92043-1079 3
BALL-STEEL,1/8" 92045 92045-1044 2
TUBE,7.5X12.5X250 92059 92059-1187 1
TUBE,5X9X150 92059A 92059-1188 1
PLUG,12X25 92068 92068-006 1
SPRING,THROTTLE VALVE ADJUST 92081 92081-1259 3
SPRING,SHAFT STOP 92081A 92081-1260 2
SPRING,CHOKE SHAFT 92081B 92081-1364 4
SPRING,THROTTLE STOP SCREW 92081C 92081-1377 1
