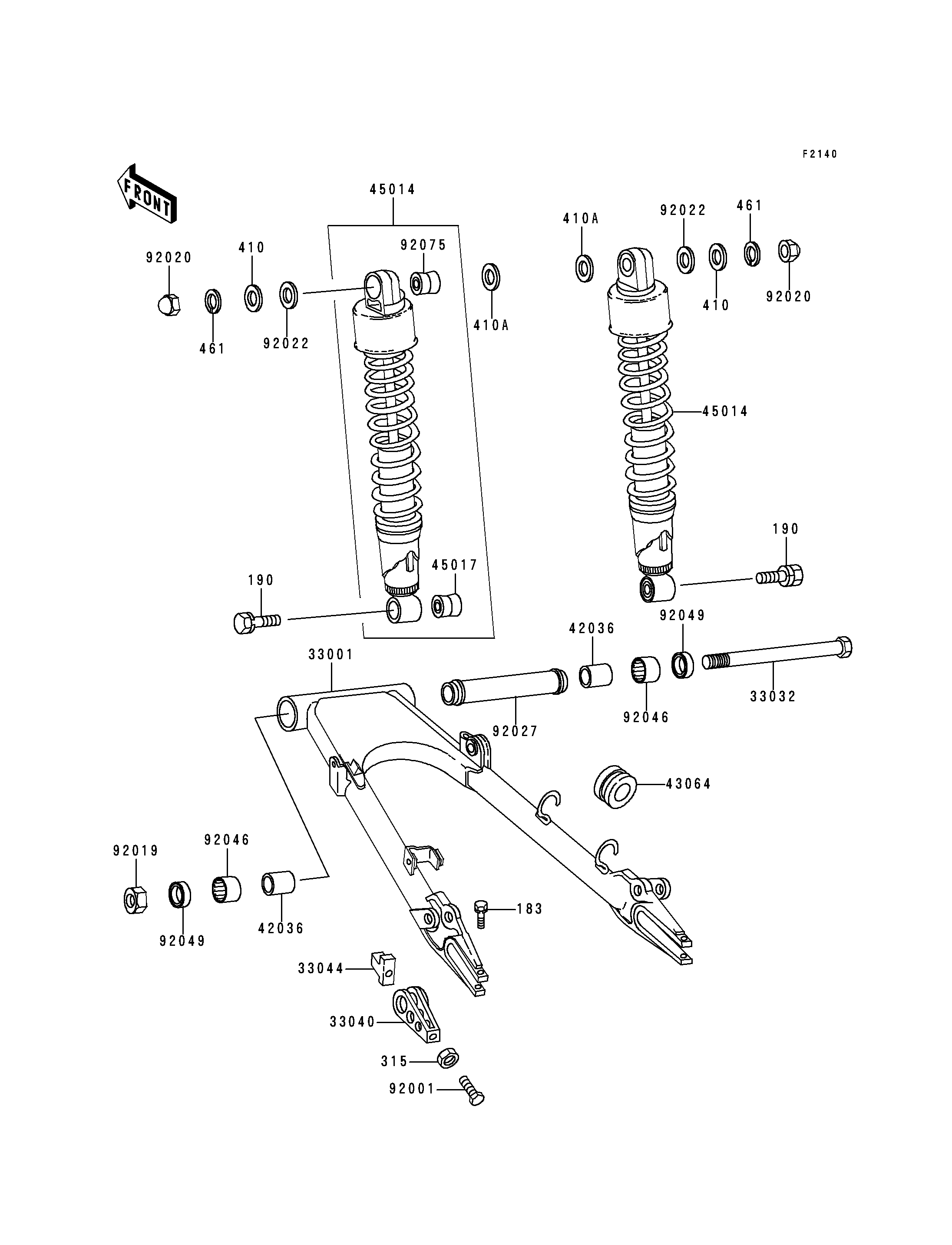

2000 Police 1000 - Swingarm/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
183
190
190
315
410
410
410A
410A
461
461
33001
33032
33040
33044
42036
42036
43064
45014
45014
45017
92001
92019
92020
92020
92022
92022
92027
92046
92046
92049
92049
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS-SMALL 183 183G0840 2
BOLT-UPSET-WS 190 190N1035 2
NUT-HEX-FINE,10MM 315 315B1000 2
WASHER-PLAIN-SMALL,12MM 410 410B1200 2
WASHER-PLAIN-SMALL,14MM 410A 410B1400 2
WASHER-SPRING,12MM 461 461F1200 2
ARM-COMP-SWING 33001 33001-4006 1
SHAFT-SWING ARM 33032 33032-036 1
ADJUSTER-CHAIN 33040 33040-066 2
STOPPER,CHAIN ADJUSTER 33044 33044-001 2
SLEEVE,SWING ARM 42036 42036-1040 2
GROMMET,HOSE CLAMP 43064 43064-007 2
SHOCKABSORBER,RR 45014 45014-1174 2
DAMPER,SHOCKABSORBER,LWR 45017 45017-019 2
BOLT,10X50 92001 92001-143 2
NUT,LOCK,16MM 92019 92019-005 1
NUT,CAP,12MM 92020 92020-014 2
WASHER,12.4X28X2.3 92022 92022-1239 2
COLLAR,SWING ARM 92027 92027-1561 1
BEARING-NEEDLE,BHTM2530-1 92046 92046-1035 2
SEAL-OIL,MH25334 92049 92049-1060 2
DAMPER,SHOCKABSORBER 92075 92075-1141 2
