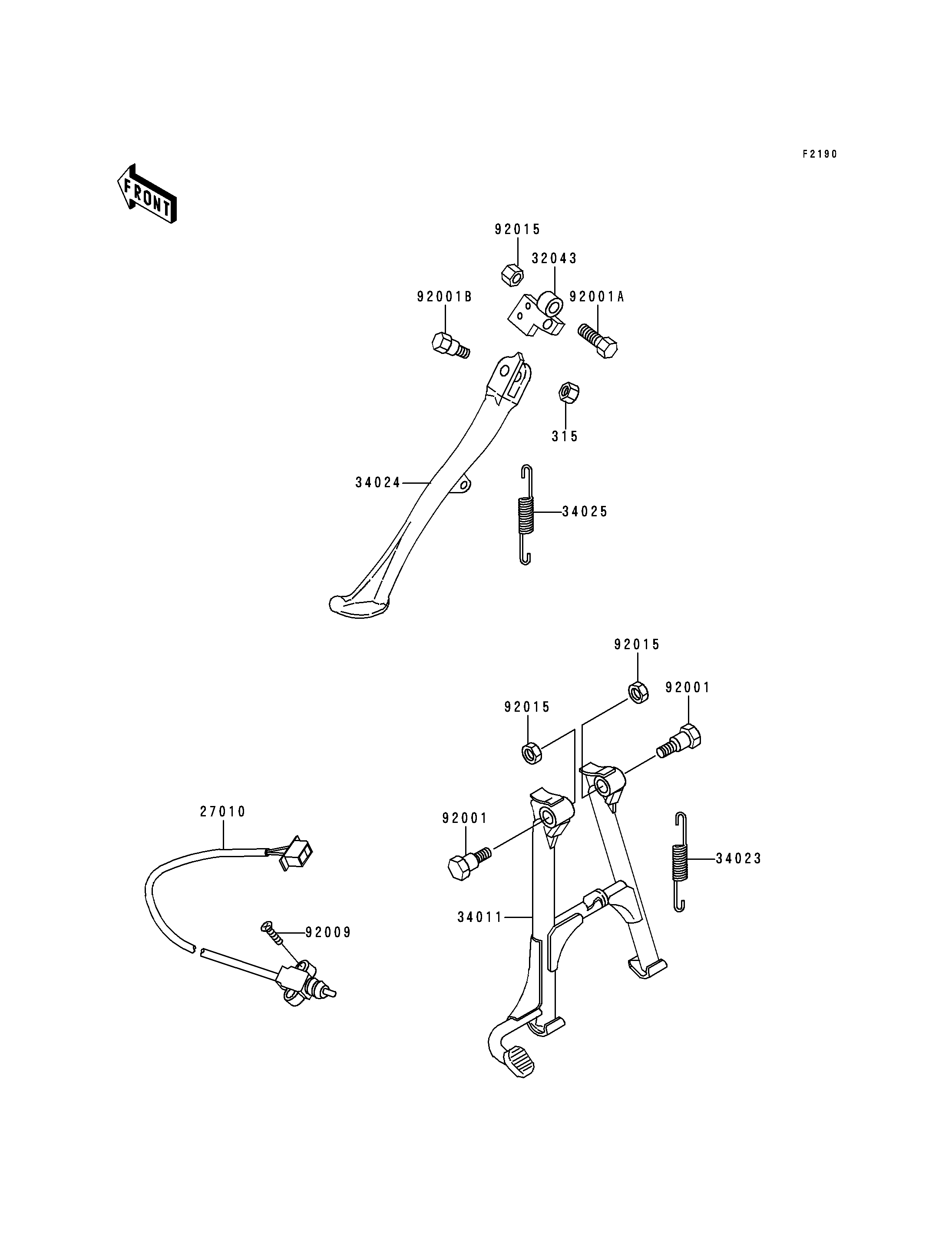

315
27010
32043
34011
34023
34024
34025
92001
92001
92001A
92001B
92009
92015
92015
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-FINE,10MM 315 315B1000 1
SWITCH,SIDE STAND 27010 27010-1203 1
BRACKET-STAND,SIDE 32043 32043-1295 1
STAND-CENTER 34011 34011-1139 1
SPRING,CNT STAND 34023 34023-012 1
STAND-SIDE 34024 34024-1216 1
SPRING,STAND 34025 34025-005 1
BOLT,CENTER STAND 92001 92001-1214 2
BOLT,10X16 92001A 92001-4013 1
BOLT,SIDE STAND 92001B 92001-4028 1
SCREW,5X20 92009 92009-1359 2
NUT,LOCK,10MM 92015 92015-1376 3
