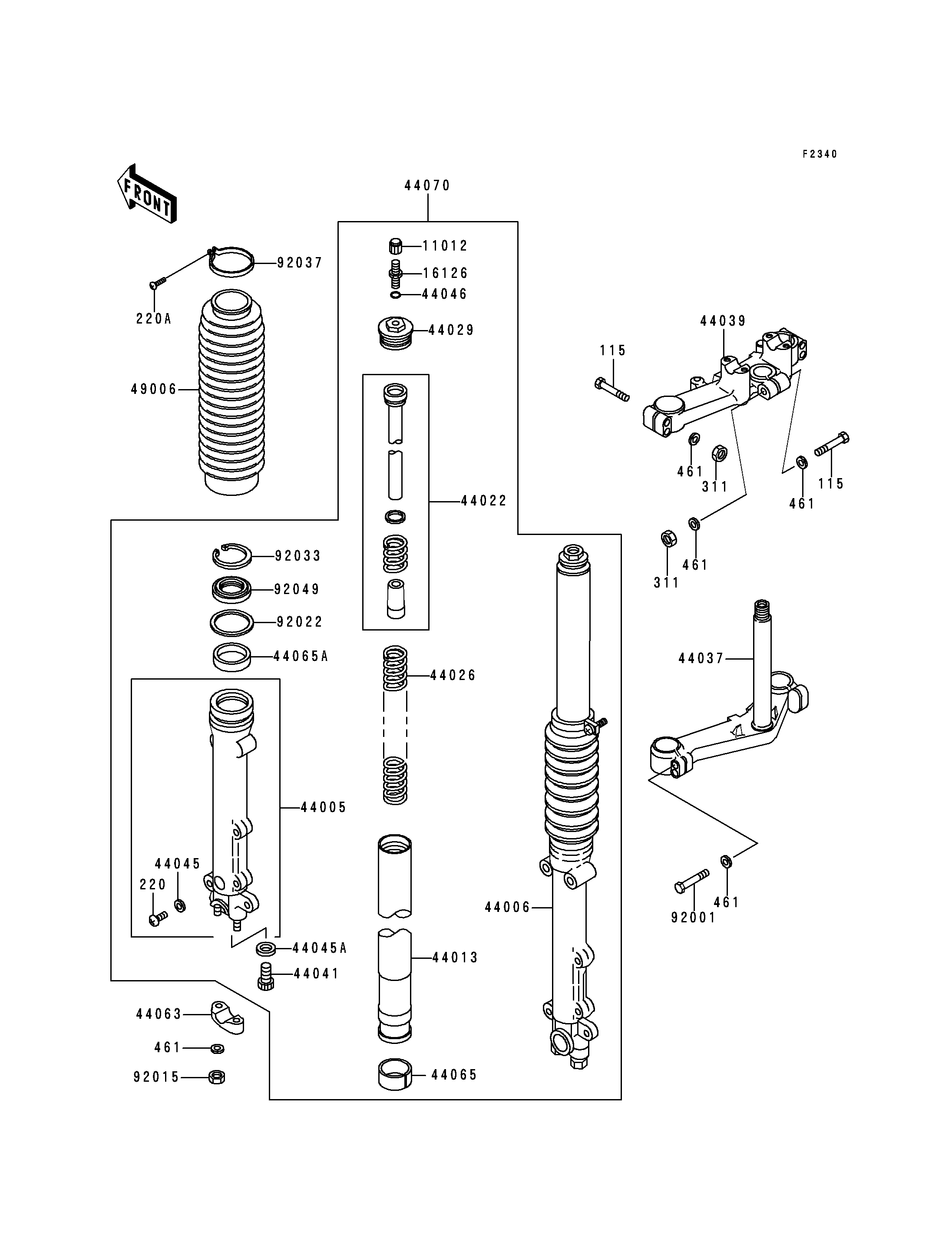

1996 Police 1000 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
115
115
220
220A
311
311
461
461
461
461
461
11012
16126
44005
44006
44013
44022
44026
44029
44037
44039
44041
44045
44045A
44046
44063
44065
44065A
44070
49006
92001
92015
92022
92033
92037
92049
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET 115 115G0855 5
SCREW-PAN-CROS,4X6 220 220B0406 2
SCREW-PAN-CROS 220A 220B0420 2
NUT-HEX,8MM 311 311G0800 5
WASHER-SPRING,8MM 461 461F0800 13
CAP,AIR VALVE 11012 11012-1241 2
VALVE,AIR 16126 16126-1046 2
PIPE-LEFT FORK OUTER 44005 44005-1332 1
PIPE-RIGHT FORK OUTER 44006 44006-1328 1
PIPE-FORK INNER 44013 44013-4002 2
CYLINDER-FORK 44022 44022-1083 2
SPRING-FRONT FORK 44026 44026-1312 2
SEAT-FORK SPRING 44029 44029-4001 2
HOLDER-FORK UNDER 44037 44037-4004 1
HOLDER-FORK UPPER 44039 44039-4007 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 2
GASKET,FORK DRAIN PLUG 44045 44045-002 2
GASKET 44045A 44045-057 2
RING-O 44046 44046-017 2
HOLDER-FRONT AXLE 44063 44063-011 2
BUSHING-FRONT FORK,INNER PIPE 44065 44065-1057 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1091 2
DAMPER-ASSY,FORK 44070 44070-5139 1
BOOT,FORK,BLACK 49006 49006-1079 2
BOLT,8X38 92001 92001-1700 4
NUT,LOCK,8MM 92015 92015-1390 4
WASHER,FORK OUTER PIPE 92022 92022-1262 2
RING-SNAP,FORK 92033 92033-1047 2
CLAMP,FORK BOOTS 92037 92037-1024 2
SEAL-OIL,FORK 92049 92049-1178 2
