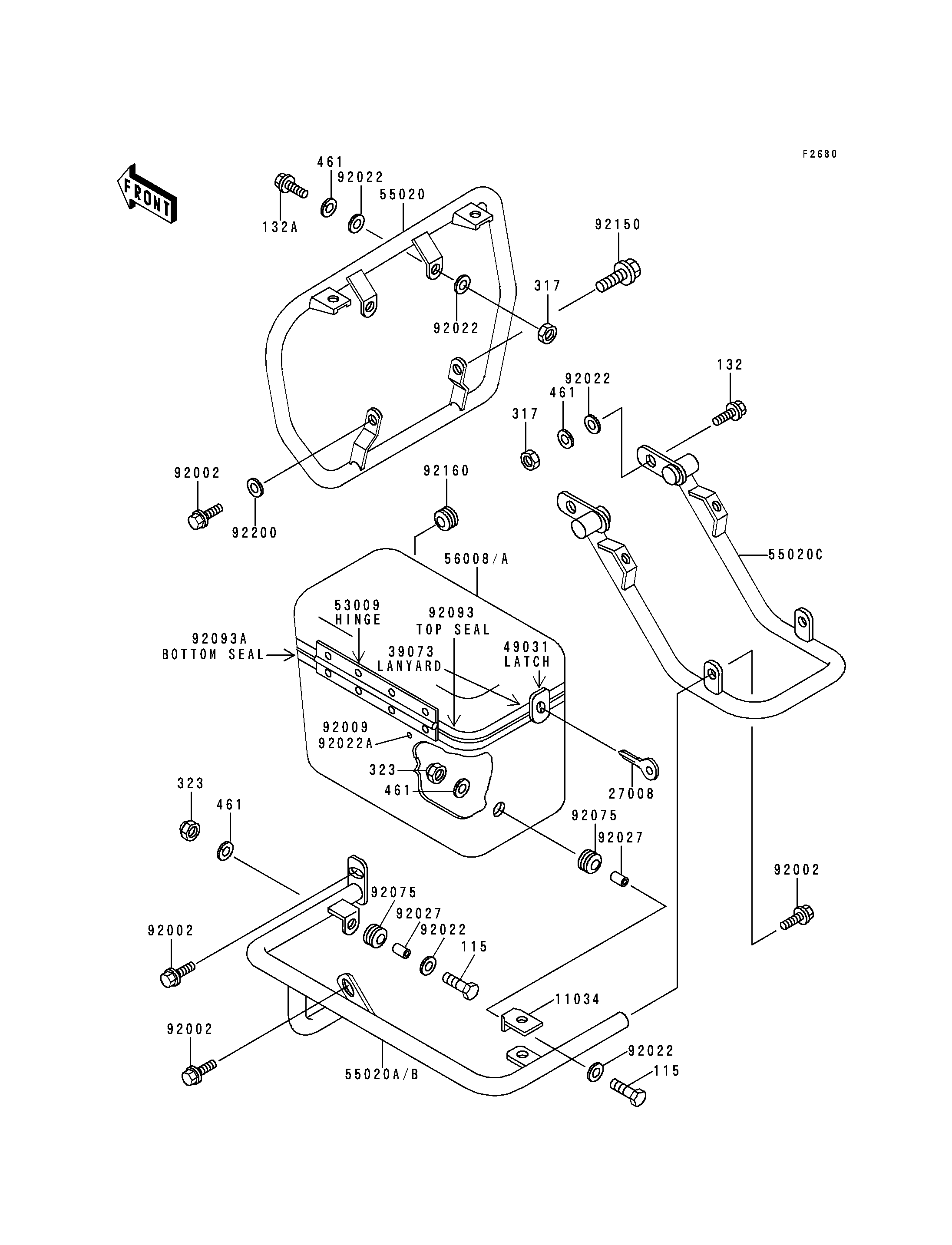

1996 Police 1000 - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
115
115
132
132A
317
317
323
323
461
461
461
461
11034
27008
39073
49031
53009
55020
55020A
55020B
55020C
56008
56008A
92002
92002
92002
92002
92009
92022
92022
92022
92022
92022
92022A
92027
92027
92075
92075
92093
92093A
92150
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET 115 115B0825 6
BOLT-FLANGED-SMALL 132 132E0820 2
BOLT-FLANGED-SMALL 132A 132E0840 2
NUT-HEX-SMALL,8MM 317 317B0800 2
NUT-CAP-SMALL,8MM 323 323N0800 6
WASHER-SPRING,8MM 461 461F0800 6
BRACKET,CARRIER BAG DAMPER 11034 11034-4137 2
KEY 27008 27008-4001 1
LANYARD 39073 39073-5501 2
LATCH 49031 49031-5504 4
HINGE 53009 53009-5501 2
GUARD,FR 55020 55020-1070 1
GUARD,SADDLE BAG,LH 55020A 55020-1071 1
GUARD,SADDLE BAG,RH 55020B 55020-1072 1
GUARD,RR 55020C 55020-1073 1
BAG,LH 56008 56008-4006 1
BAG,RH 56008A 56008-4007 1
BOLT,FLANGED,10X20 92002 92002-1827 7
SCREW 92009 92009-5506 36
WASHER,8.5X20X1.6 92022 92022-1561 6
WASHER 92022A 92022-5520 36
COLLAR 92027 92027-280 6
DAMPER 92075 92075-303 6
SEAL 92093 92093-5503 AR
SEAL 92093A 92093-5504 AR
BOLT,FLANGED,10X38 92150 92150-1297 1
DAMPER,AMPLIFIER HARNESS 92160 92160-1667 1
WASHER,10.5X19X2.3 92200 92200-1042 1
