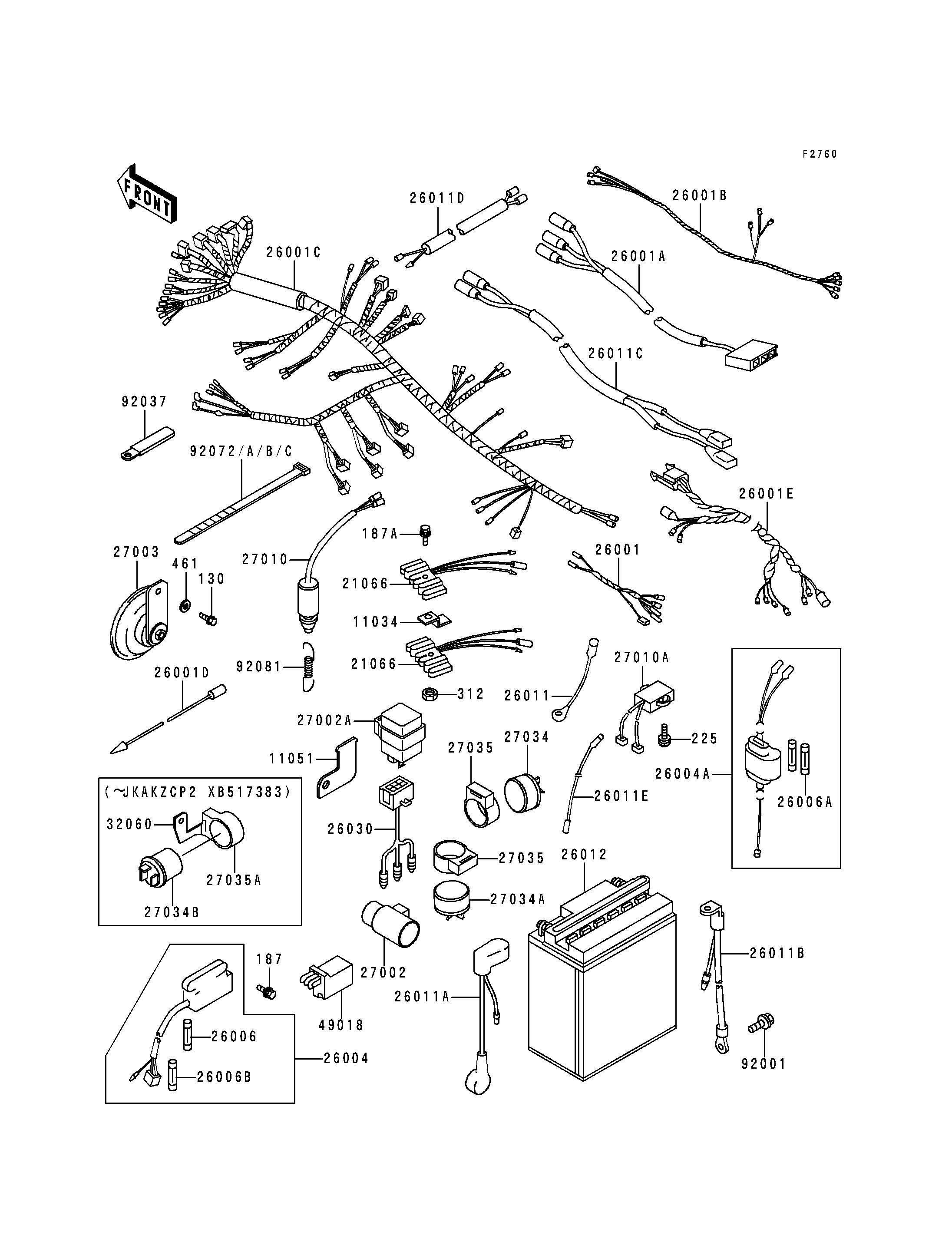

1996 Police 1000 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11034
11034
21066
21066
21066
21066
26001
26001
26001A
26001A
26001B
26001B
26001C
26001C
26001D
26001D
26001E
26001E
26004
26004
26004A
26004A
26006
26006
26006A
26006A
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26011D
26011D
26011E
26011E
26012
26012
27002
27002
27003
27003
27010
27010
27010A
27010A
27034
27034
27034A
27034A
27034B
27034B
27035
27035
27035
27035
27035A
27035A
32060
32060
49018
49018
130
130
187
187
187A
187A
225
225
312
312
461
461
92001
92001
92037
92037
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HAZARD REGULATOR 11034 11034-4163 1
REGULATOR 21066 21066-024 2
HARNESS,TAIL LAMP 26001 26001-1013 1
HARNESS,TAIL 26001A 26001-1343 1
HARNESS,SCREW 26001B 26001-1344 1
HARNESS,MAIN 26001C 26001-1805 1
HARNESS 26001D 26001-4014 1
HARNESS,FAIRING 26001E 26001-4020 1
FUSE-ASSY 26004 26004-1011 1
FUSE-ASSY,ACCESSORY 26004A 26004-1014 1
FUSE,10A,L=25 26006 26006-003 5
FUSE,10A,L=30 26006A 26006-1002 3
FUSE,30A,L=25 26006B 26006-1005 2
WIRE-LEAD,ACCESSORY GROUND 26011 26011-1100 1
WIRE-LEAD,BATTERY,(+) 26011A 26011-1118 1
WIRE-LEAD,BATTERY,(-) 26011B 26011-1124 1
WIRE-LEAD,TURN SIGNAL 26011C 26011-1148 1
WIRE-LEAD,FR BRAKE SWITCH 26011D 26011-1489 1
WIRE-LEAD,PURSUIT LAMP 26011E 26011-4010 1 (OPTION)
BATTERY,12V 18AH,YB18L-A 26012 26012-1236 1
RELAY-ASSY 27002 27002-1051 1
HORN 27003 27003-1047 1
SWITCH,REAR BRAKE 27010 27010-1019 1
SWITCH,TURN SIGNAL OPERATION 27010A 27010-1048 1
RELAY,TURN SIGNAL 27034 27034-003 1
RELAY,HAZARD 27034A 27034-005 1
RELAY,TURN SIGNAL 27034B 27034-1001 1 ( - JKAKZCP2 XB517383)
DAMPER,RELAY 27035 27035-001 2
DAMPER,RELAY 27035A 27035-001 1 ( - JKAKZCP2 XB517383)
BRACKET,OUTAGE SWITCH 32060 32060-014 1 ( - JKAKZCP2 XB517383)
DIODE 49018 49018-1052 1
BOLT-FLANGED 130 130D0814 1
BOLT-UPSET-WSP 187 187B0622 2
BOLT-UPSET-WSP 187A 187B0635 1
SCREW-PAN-WSP-CROS 225 225B0620 2
NUT-HEX,6MM 312 312B0600 1
WASHER-SPRING,6MM 461 461F0600 1
BOLT,6X10 92001 92001-137 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 2
BAND,L=149 92072 92072-031 7
BAND,L=218 92072A 92072-032 2
BAND,L=186 92072B 92072-056 2
BAND,L=185 92072C 92072-1195 3
SPRING,BRAKE SWITCH 92081 92081-1366 1
