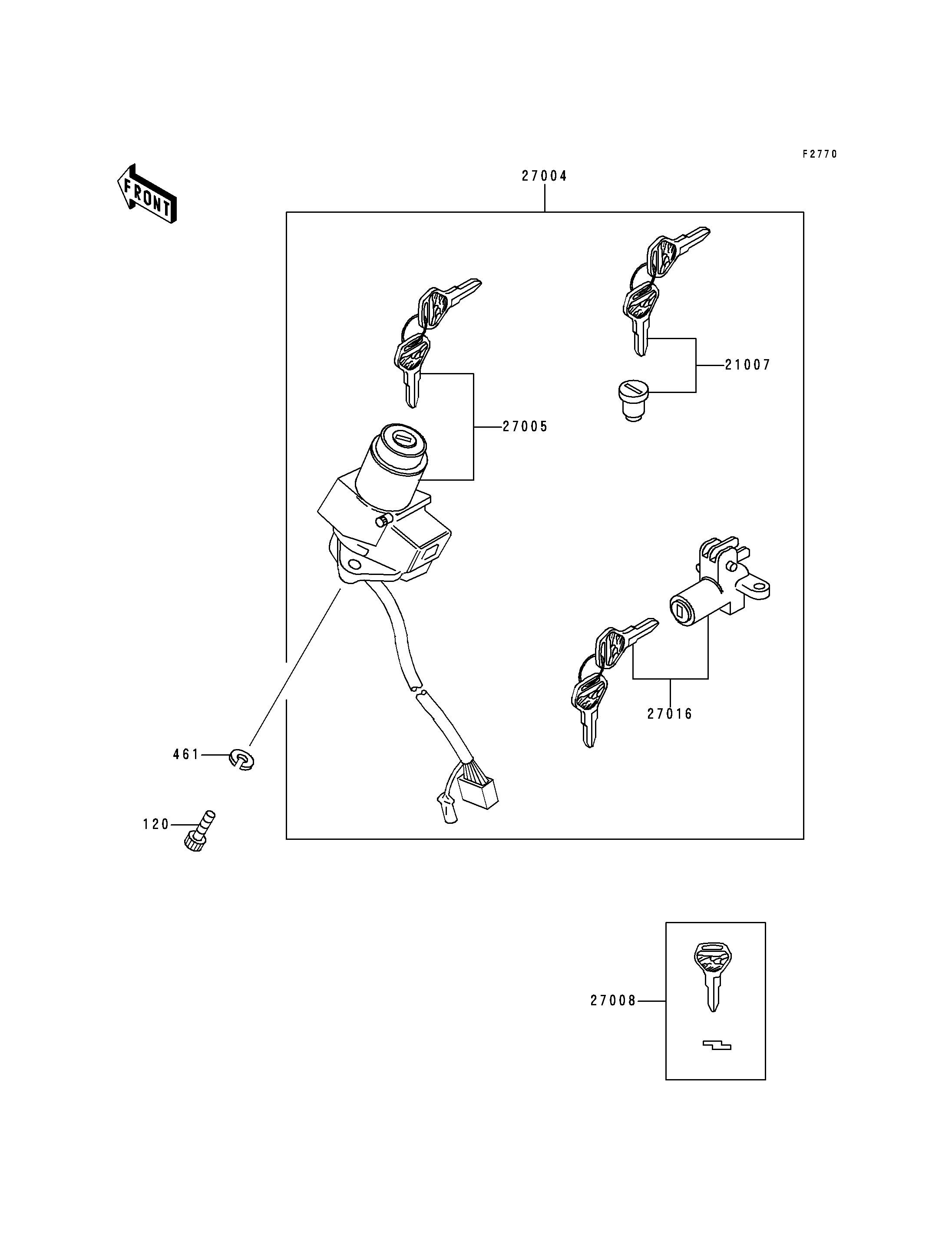

1996 Police 1000 - Ignition Switch/Locks/Reflectors

120
461
21007
27004
27005
27008
27016
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120T0616 2
WASHER-SPRING 461 461L0600 2
ROTOR,LOCK,TANK CAP 21007 21007-5005 1
SWITCH-ASSY 27004 27004-5409 1
SWITCH-ASSY-IGNITION 27005 27005-5024 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
LOCK-ASSY,SEAT 27016 27016-5072 1
