21181
26001
42046
58001
58001A
58001B
92015
92075

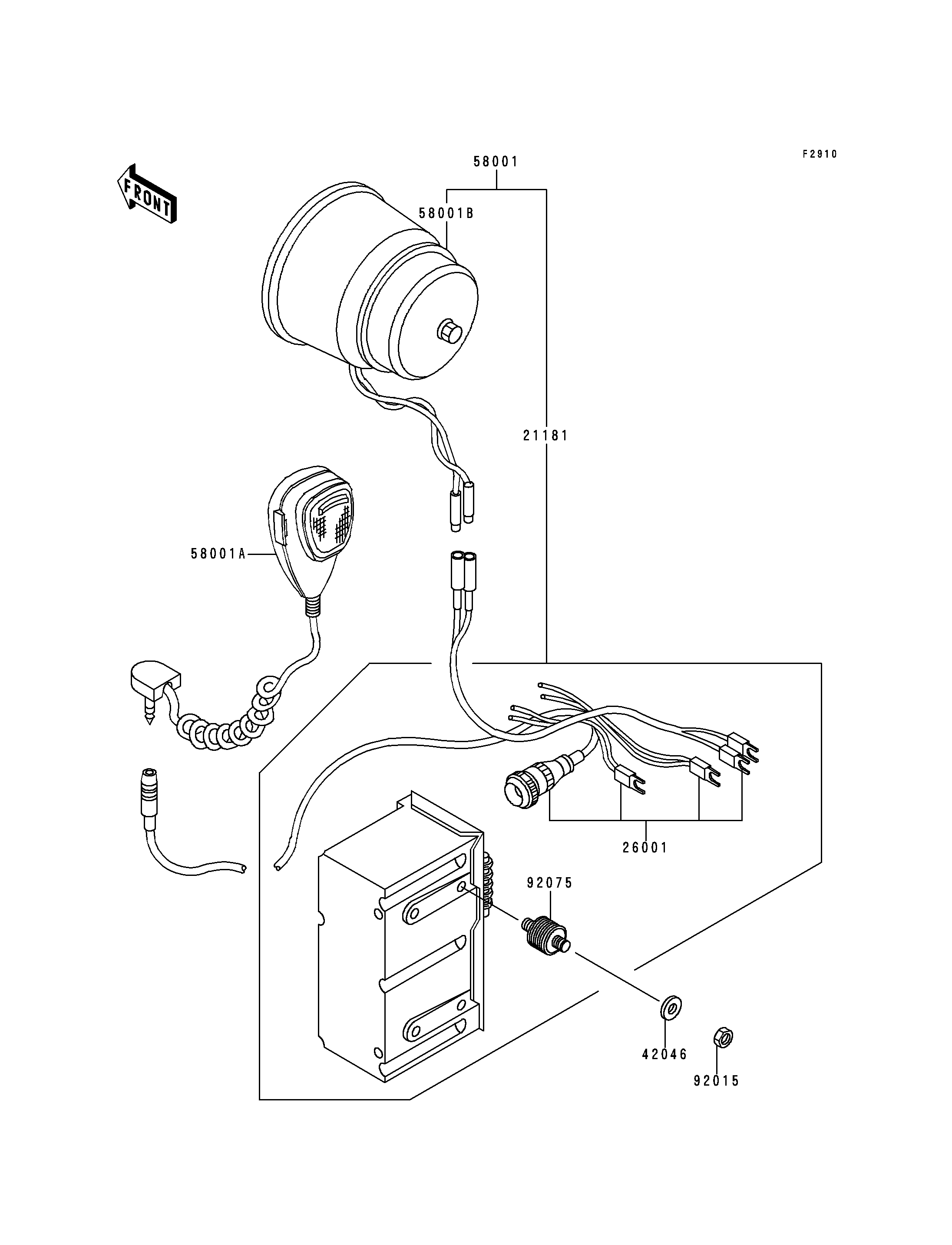

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AMPLIFIER 21181 21181-1057 1
HARNESS 26001 26001-4021 1
WASHER 42046 42046-008 4
SIREN,ASSY 58001 58001-1052 1
SIREN,MICROPHONE 58001A 58001-4016 1 (OPTION)
SIREN,SPEAKER 58001B 58001-4019 1
NUT 92015 92015-1817 4
DAMPER,RUBBER 92075 92075-4035 1
