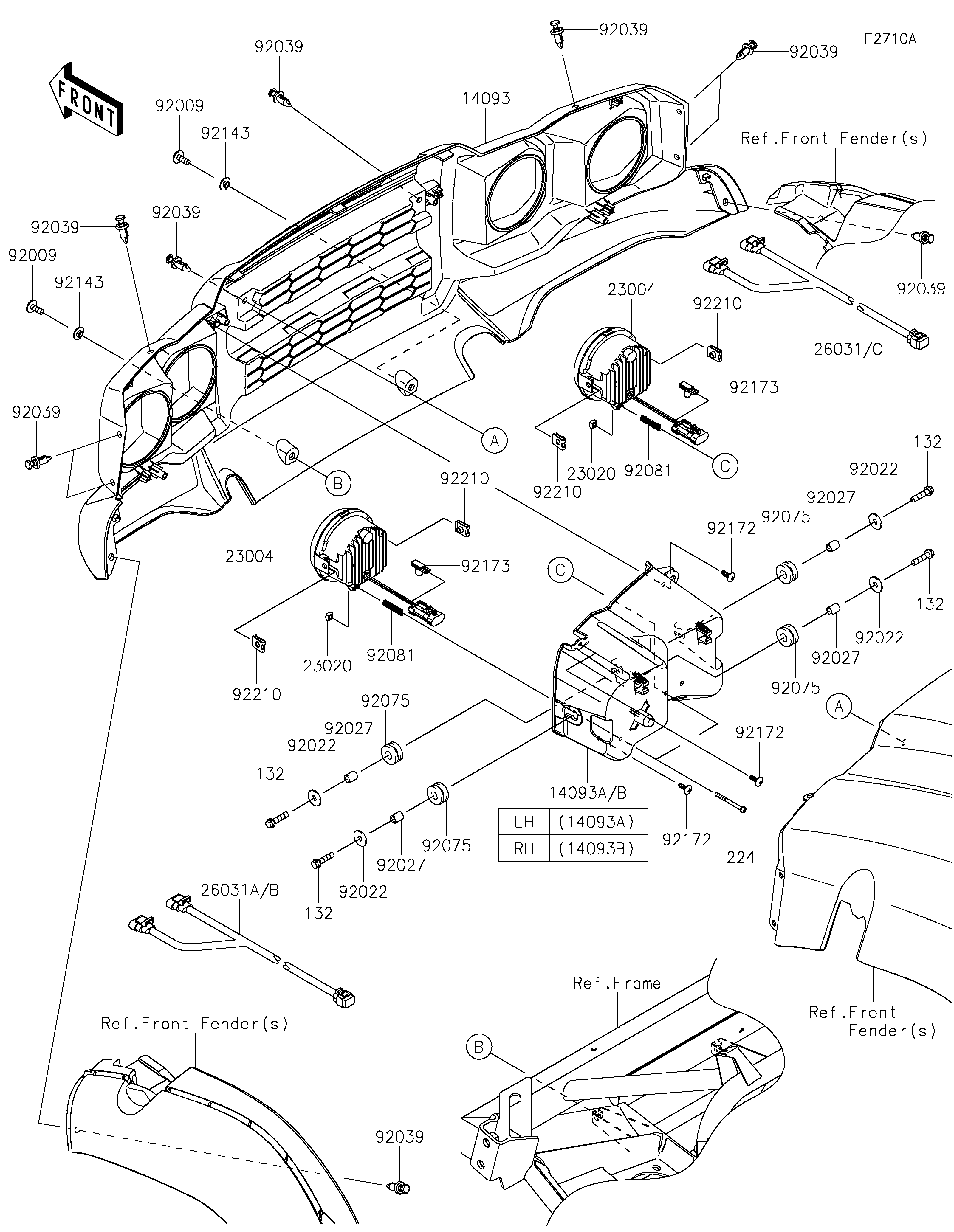

2018 MULE SX™ 4x4 XC SE - Headlight(s)(MJF/MKF)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
23004
23004
23020
23020
26031
26031A
92009
92009
92022
92022
92022
92022
92027
92027
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92075
92075
92075
92075
92081
92081
92143
92143
92172
92172
92172
92173
92173
92210
92210
92210
92210
132
132
132
132
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FR GRILL 14093 14093-0393 1
COVER,HEAD LAMP,LH 14093A 14093-0394 1
COVER,HEAD LAMP,RH 14093B 14093-0395 1
LAMP-HEAD 23004 23004-0372 4
NUT,4MM,FOCUS ADJUST 23020 23020-018 4
HARNESS,SUB,RH 26031 26031-1832 1
HARNESS,SUB,LH 26031A 26031-1983 1
SCREW,6X16 92009 92009-1621 2
WASHER,6.5X20X1.6 92022 92022-125 8
COLLAR,6.8X10X12 92027 92027-162 8
RIVET 92039 92039-0776 10
DAMPER,10X24X12 92075 92075-1690 8
SPRING,FOCUS ADJUST 92081 92081-1896 4
COLLAR 92143 92143-1087 2
SCREW,TAPPING,5X14 92172 92172-0265 6
CLAMP 92173 92173-1491 4
NUT 92210 92210-1125 8
BOLT-FLANGED-SMALL,6X25 132 132BA0625 8
SCREW-PAN-WP-CROS,4X45 224 224AA0445 4
