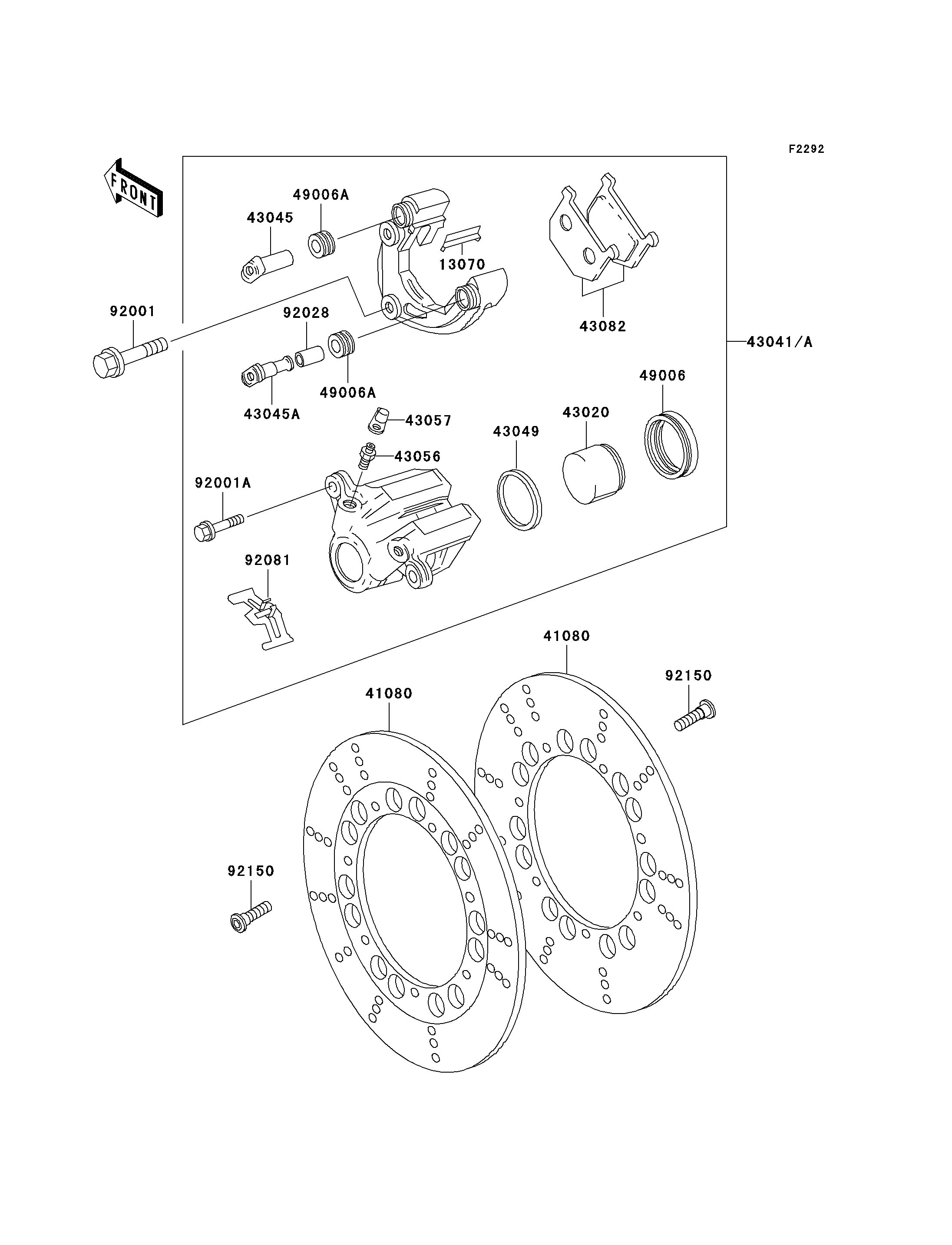

Parts Diagrams |
13070
41080
41080
43020
43041
43041A
43045
43045A
43049
43056
43057
43082
49006
49006A
49006A
92001
92001A
92028
92081
92150
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,PAD | 13070 | 13070-1026 | 4 | ||
DISC,FR | 41080 | 41080-1047 | 2 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1096 | 2 | ||
CALIPER-ASSY,FR,LH,BLACK | 43041 | 43041-1731-DJ | 1 | ||
CALIPER-ASSY,FR,RH,BLACK | 43041A | 43041-1732-DJ | 1 | ||
SHAFT-CALIPER | 43045 | 43045-1007 | 2 | ||
SHAFT-CALIPER | 43045A | 43045-1008 | 2 | ||
PACKING,PISTON SEAL | 43049 | 43049-002 | 2 | ||
BREATHER-BRAKE | 43056 | 43056-1054 | 2 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1021 | 2 | ||
BOOT,PISTON | 49006 | 49006-1043 | 2 | ||
BOOT,SHAFT | 49006A | 49006-1044 | 4 | ||
BOLT,FLANGED,10X41 | 92001 | 92001-1355 | 4 | ||
BOLT,FLANGED,8X25,BLACK | 92001A | 92001-1510 | 4 | ||
BUSHING,7.8X11X15.7 | 92028 | 92028-1090 | 2 | ||
SPRING,PAD | 92081 | 92081-1229 | 2 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 14 |
GUIDE,PAD | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DISC,FR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR,LH,BLACK | |
REF # | 43041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-ASSY,FR,RH,BLACK | |
REF # | 43041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOOT,PISTON | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOOT,SHAFT | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X41 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X25,BLACK | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,7.8X11X15.7 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X30 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 14 |
DESTINATION | |
REMARKS |
