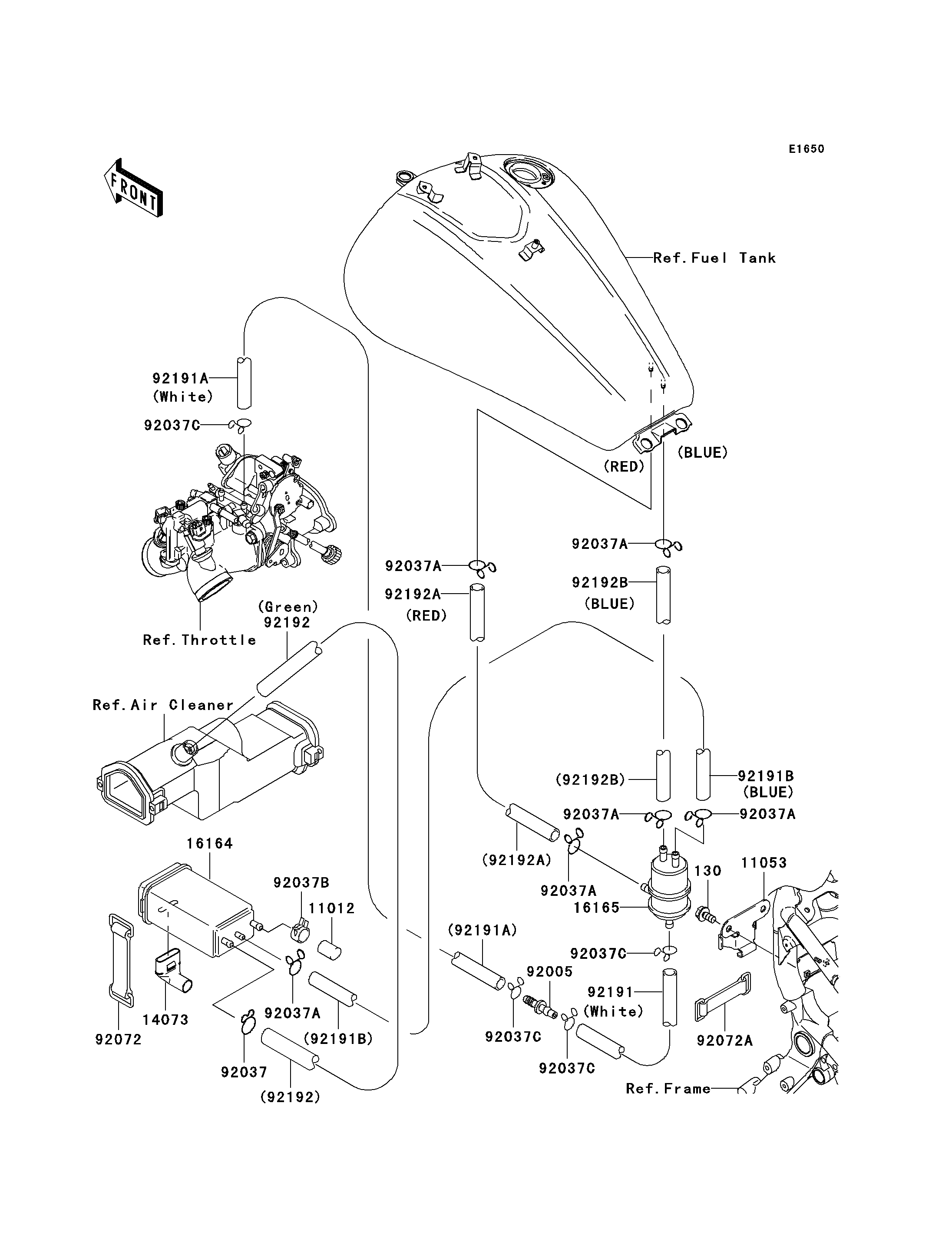

2007 Vulcan 1600 Classic - Fuel Evaporative System(CA)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130J0612 | 2 | CA | |
CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
BRACKET,EVAPO | 11053 | 11053-0006 | 1 | CA | |
DUCT,CANISTER | 14073 | 14073-1219 | 1 | CA | |
CANISTER | 16164 | 16164-1070 | 1 | CA | |
SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
FITTING | 92005 | 92005-1206 | 1 | CA | |
CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
CLAMP,TUBE | 92037A | 92037-147 | 6 | CA | |
CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
CLAMP | 92037C | 92037-1712 | 4 | CA | |
BAND,L=90 | 92072 | 92072-045 | 1 | CA | |
BAND,L=50 | 92072A | 92072-1419 | 1 | CA | |
TUBE,THROTTLE-SEPARATOR,WHITE | 92191 | 92191-1375 | 1 | CA | |
TUBE,4X9X180,WHITE | 92191A | 92191-1414 | 1 | CA | |
TUBE,SEPARATOR-CANISTER,BLUE | 92191B | 92191-1677 | 1 | CA | |
TUBE,CANISTER-FILTER,GREEN | 92192 | 92192-0027 | 1 | CA | |
TUBE,TANK-SEPARATOR,RED | 92192A | 92192-0036 | 1 | CA | |
TUBE,BLUE | 92192B | 92192-0037 | 1 | CA |
BOLT-FLANGED,6X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CA |
REMARKS |
CAP,CANISTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BRACKET,EVAPO | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
DUCT,CANISTER | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CANISTER | |
REF # | 16164 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
SEPARATOR | |
REF # | 16165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | CA |
REMARKS |
CLAMP,CANISTER | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CA |
REMARKS |
BAND,L=90 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BAND,L=50 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,THROTTLE-SEPARATOR,WHITE | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,4X9X180,WHITE | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,SEPARATOR-CANISTER,BLUE | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,CANISTER-FILTER,GREEN | |
REF # | 92192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,TANK-SEPARATOR,RED | |
REF # | 92192A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,BLUE | |
REF # | 92192B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
