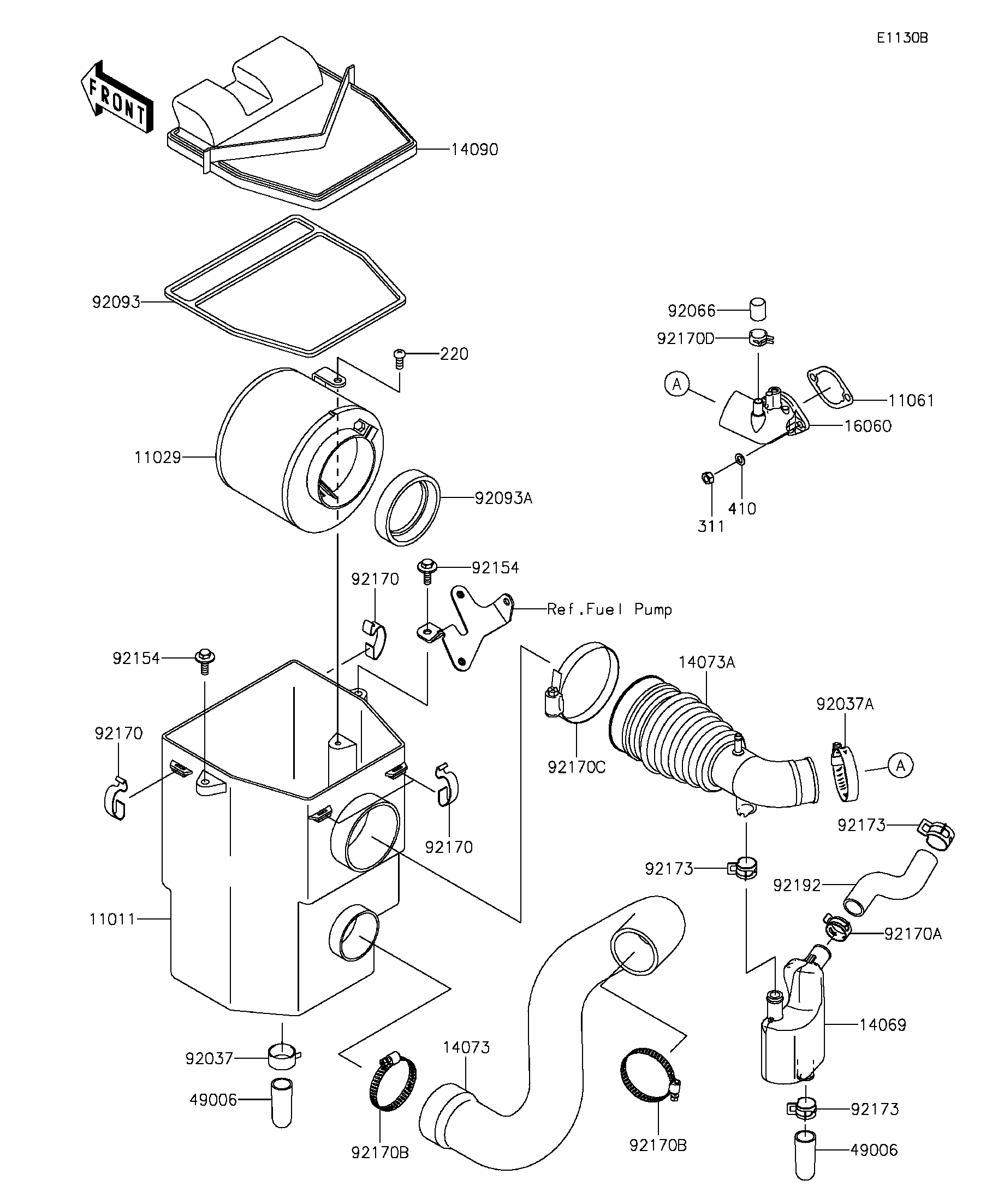

2016 MULE™ 610 4x4 XC - Air Cleaner(DGF)(CN)

DOWNLOAD PDF
SELECT A NEW PART
11011
11011
11029
11029
11061
11061
14069
14069
14073
14073
14073A
14073A
14090
14090
16060
16060
49006
49006
49006
49006
92037
92037
92037A
92037A
92066
92066
92093
92093
92093A
92093A
92154
92154
92154
92154
92170
92170
92170
92170
92170
92170
92170A
92170A
92170B
92170B
92170B
92170B
92170C
92170C
92170D
92170D
92173
92173
92173
92173
92173
92173
92192
92192
220
220
311
311
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1367 1 CN
ELEMENT-ASSY-AIR FILTER 11029 11029-1004 1 CN
GASKET,CHOKE 11061 11061-7026 1 CN
BREATHER 14069 14069-0024 1 CN
DUCT,FRAME-AIR FILTER 14073 14073-0072 1 CN
DUCT,AIR FILTER-IN.PIPE 14073A 14073-0818 1 CN
COVER,AIR FILTER 14090 14090-1106 1 CN
PIPE-INTAKE 16060 16060-2224 1 CN
BOOT 49006 49006-1351 2 CN
CLAMP,HOSE CLIP 92037 92037-1460 1 CN
CLAMP 92037A 92037-506 1 CN
PLUG 92066 92066-0829 1 CN
SEAL,AIR FILTER 92093 92093-1241 1 CN
SEAL,DUST 92093A 92093-1322 1 CN
BOLT,WP,6X20 92154 92154-1516 2 CN
CLAMP,AIR FILTER 92170 92170-1211 4 CN
CLAMP 92170A 92170-1640 1 CN
CLAMP 92170B 92170-1674 2 CN
CLAMP 92170C 92170-1679 1 CN
CLAMP 92170D 92170-7003 1 CN
CLAMP 92173 92173-7003 3 CN
TUBE,BREATHER 92192 92192-1465 1 CN
SCREW-PAN-CROS,6X14 220 220AA0614 1 CN
NUT-HEX,6MM 311 311AA0600 2 CN
WASHER-PLAIN-SMALL 410 410AA0600 2 CN
