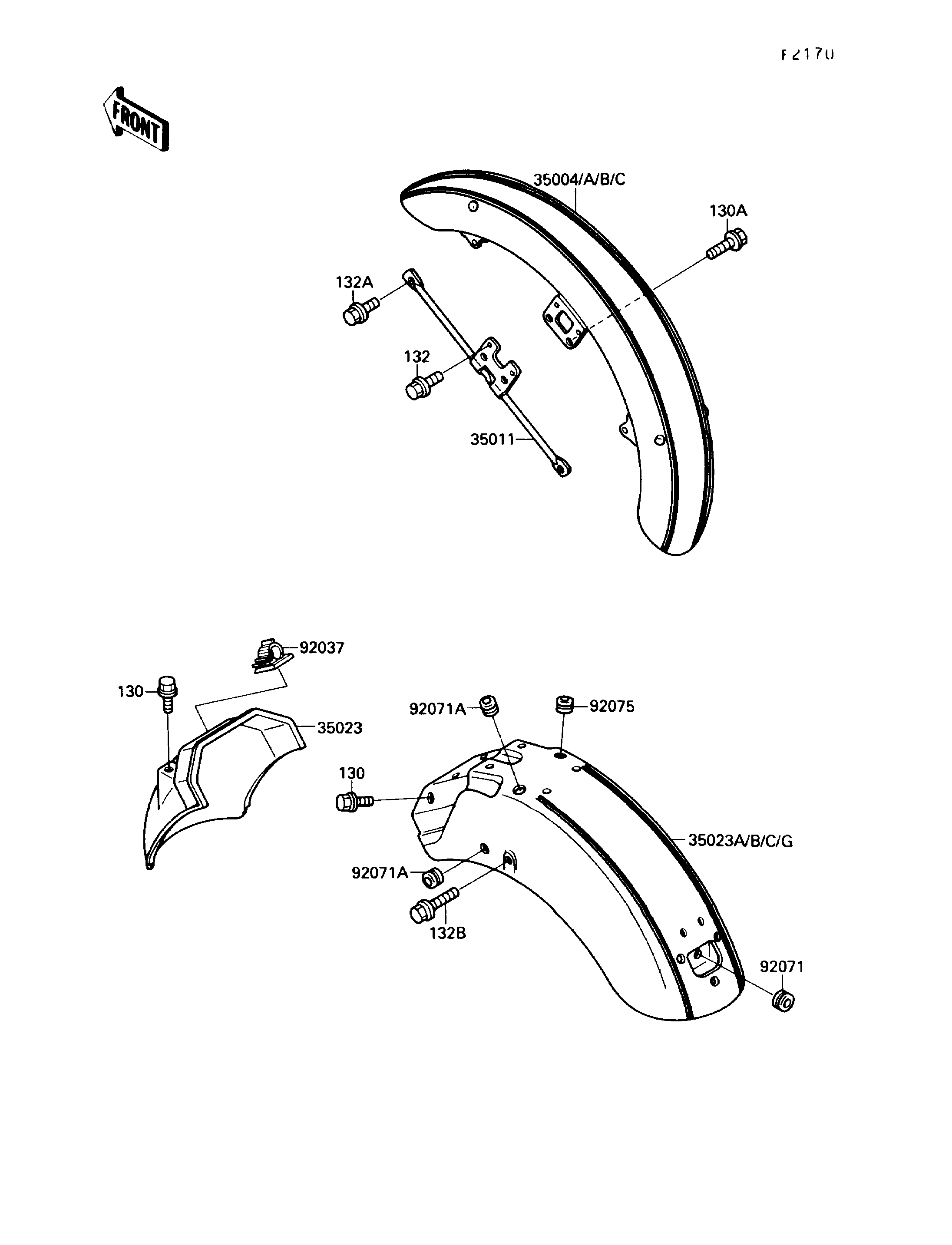

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,RED/RED 35004 35004-5073-CA 1
STAY,FRONT FENDER 35011 35011-1333 2
FENDER-REAR,FR 35023 35023-1189 1
FENDER-REAR,RR,RED/RED 35023A 35023-5025-CA 1
CLAMP,HARNESS 92037 92037-1816 1
GROMMET,13MM 92071 92071-099 1
GROMMET 92071A 92071-1148 3
DAMPER 92075 92075-294 1
BOLT-FLANGED,6X12 130 130C0612 4
BOLT-FLANGED 130A 130D0814 4
BOLT-FLANGED-SMALL,5X10 132 132E0510 4
BOLT-FLANGED-SMALL 132A 132E0610 4
BOLT-FLANGED-SMALL 132B 132E0840 2
