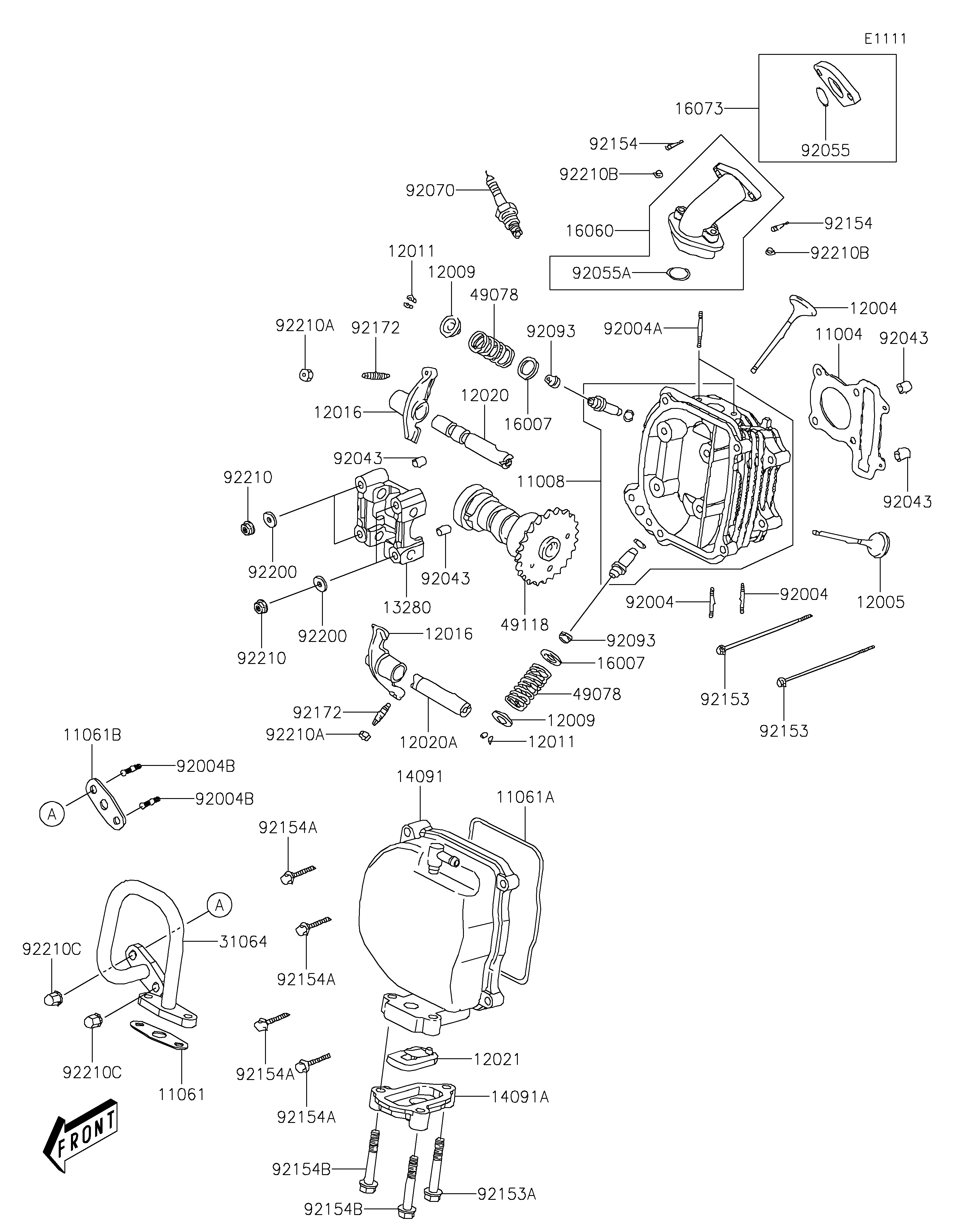

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11004
11004
11008
11008
11061
11061
11061A
11061A
11061B
11061B
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12016
12016
12016
12016
12020
12020
12020A
12020A
12021
12021
13280
13280
14091
14091
14091A
14091A
16007
16007
16007
16007
16060
16060
16073
16073
31064
31064
49078
49078
49078
49078
49118
49118
92004
92004
92004
92004
92004A
92004A
92004B
92004B
92004B
92004B
92043
92043
92043
92043
92043
92043
92043
92043
92055
92055
92055A
92055A
92070
92070
92093
92093
92093
92093
92153
92153
92153
92153
92153A
92153A
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92172
92172
92172
92172
92200
92200
92200
92200
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210B
92210B
92210B
92210B
92210C
92210C
92210C
92210C
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET-HEAD | 11004 | 11004-Y001 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-Y003 | 1 | ||
GASKET | 11061 | 11061-Y018 | 1 | ||
GASKET,CYLINDER HEAD COVER | 11061A | 11061-Y019 | 1 | ||
GASKET | 11061B | 11061-Y020 | 1 | ||
VALVE-INTAKE | 12004 | 12004-Y001 | 1 | ||
VALVE-EXHAUST | 12005 | 12005-Y001 | 1 | ||
RETAINER-VALVE SPRING | 12009 | 12009-Y001 | 2 | ||
COLLET | 12011 | 12011-Y001 | 4 | ||
ARM-ROCKER | 12016 | 12016-Y002 | 2 | ||
SHAFT-ROCKER,IN | 12020 | 12020-Y002 | 1 | ||
SHAFT-ROCKER,EX | 12020A | 12020-Y004 | 1 | ||
VALVE-ASSY-REED | 12021 | 12021-Y001 | 1 | ||
HOLDER,CAMSHAFT | 13280 | 13280-Y001 | 1 | ||
COVER,CYLINDER HEAD | 14091 | 14091-Y014 | 1 | ||
COVER,REED VALVE | 14091A | 14091-Y015 | 1 | ||
SEAT-SPRING | 16007 | 16007-Y001 | 2 | ||
PIPE-INTAKE | 16060 | 16060-Y003 | 1 | ||
INSULATOR | 16073 | 16073-Y002 | 1 | ||
PIPE-COMP | 31064 | 31064-Y003 | 1 | ||
SPRING-ENGINE VALVE,OUTER | 49078 | 49078-Y001 | 2 | ||
CAMSHAFT-COMP | 49118 | 49118-Y001 | 1 | ||
STUD,6X32 | 92004 | 92004-Y005 | 2 | ||
STUD,6X50 | 92004A | 92004-Y007 | 2 | ||
STUD,6X28 | 92004B | 92004-Y011 | 2 | ||
PIN,8X14 | 92043 | 92043-Y006 | 4 | ||
RING-O,23X2.4 | 92055 | 92055-Y007 | 1 | ||
RING-O,22X2.0 | 92055A | 92055-Y008 | 1 | ||
PLUG-SPARK,CR7HSA | 92070 | 92070-Y002 | 1 | ||
SEAL | 92093 | 92093-Y025 | 2 | ||
BOLT,FLANGE,6X85 | 92153 | 92153-Y055 | 2 | ||
BOLT,FLANGE,6X25 | 92153A | 92153-Y065 | 1 | ||
BOLT,FLANGE,6X25 | 92154 | 92154-Y066 | 2 | ||
BOLT,FLANGE,6X25 | 92154A | 92154-Y130 | 4 | ||
BOLT,FLANGE,6X40 | 92154B | 92154-Y131 | 2 | ||
SCREW | 92172 | 92172-Y003 | 2 | ||
WASHER,7MM | 92200 | 92200-Y006 | 4 | ||
NUT,7MM | 92210 | 92210-Y003 | 4 | ||
NUT | 92210A | 92210-Y004 | 2 | ||
NUT,6MM | 92210B | 92210-Y026 | 2 | ||
NUT,6MM | 92210C | 92210-Y035 | 2 |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER | |
REF # | 11008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CYLINDER HEAD COVER | |
REF # | 11061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-INTAKE | |
REF # | 12004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-EXHAUST | |
REF # | 12005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RETAINER-VALVE SPRING | |
REF # | 12009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLET | |
REF # | 12011 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ARM-ROCKER | |
REF # | 12016 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT-ROCKER,IN | |
REF # | 12020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-ROCKER,EX | |
REF # | 12020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY-REED | |
REF # | 12021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CAMSHAFT | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,CYLINDER HEAD | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,REED VALVE | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAT-SPRING | |
REF # | 16007 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIPE-INTAKE | |
REF # | 16060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INSULATOR | |
REF # | 16073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-COMP | |
REF # | 31064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-ENGINE VALVE,OUTER | |
REF # | 49078 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAMSHAFT-COMP | |
REF # | 49118 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,6X32 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,6X50 | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,6X28 | |
REF # | 92004B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,23X2.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,22X2.0 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG-SPARK,CR7HSA | |
REF # | 92070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGE,6X85 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGE,6X25 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGE,6X25 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGE,6X25 | |
REF # | 92154A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGE,6X40 | |
REF # | 92154B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,7MM | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,7MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92210B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92210C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
