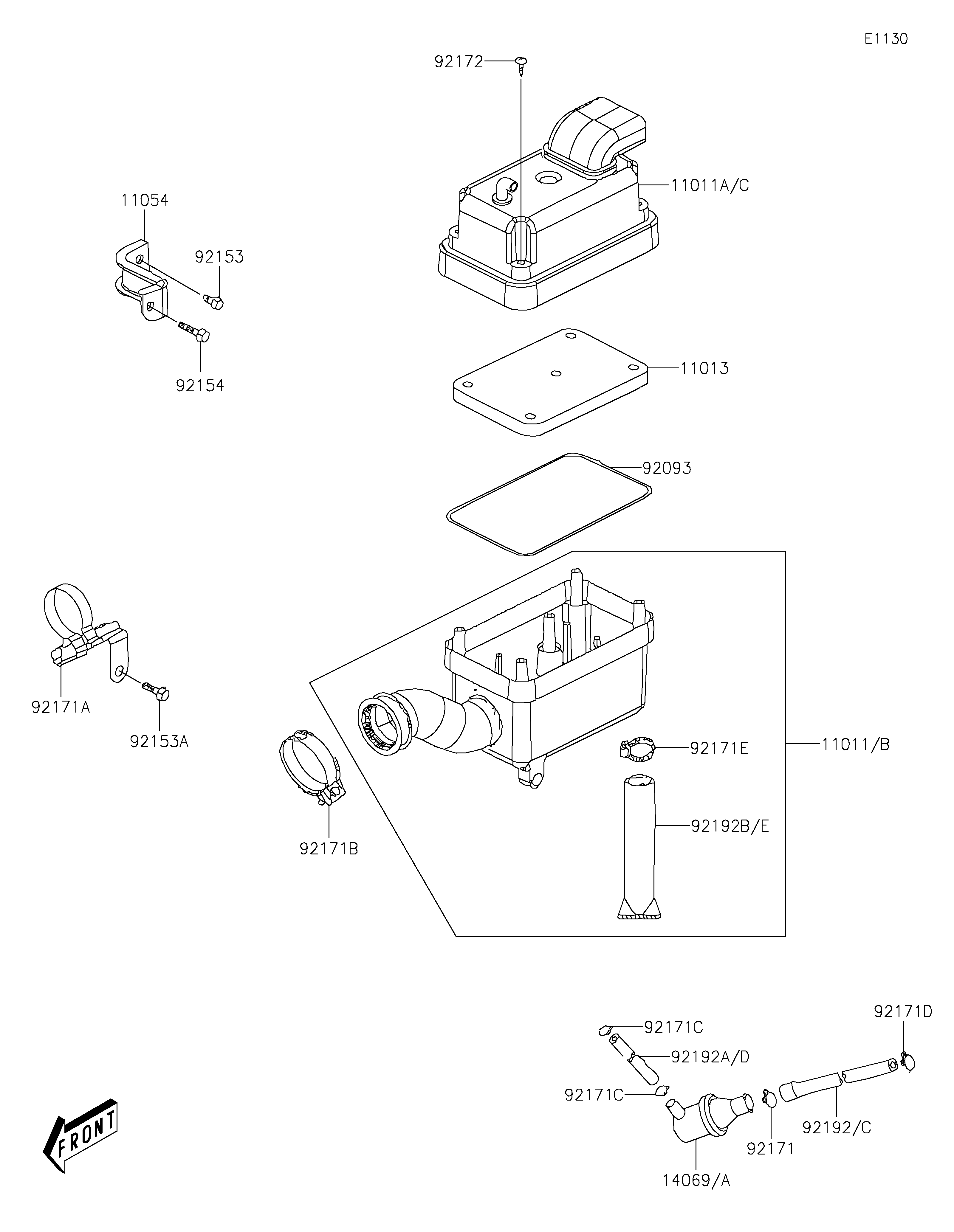

2021 KFX®50 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11011A
11011B
11011C
11013
11054
14069
14069A
92093
92153
92153A
92154
92171
92171A
92171B
92171C
92171C
92171D
92171E
92172
92192
92192A
92192B
92192C
92192D
92192E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,LWR 11011 11011-Y001 1 CN
CASE-AIR FILTER,UPP 11011A 11011-Y002 1 CN
CASE-AIR FILTER,LWR 11011B 11011-Y003 1 US
CASE-AIR FILTER,UPP 11011C 11011-Y004 1 US
ELEMENT-AIR FILTER 11013 11013-Y001 1
BRACKET 11054 11054-Y002 1
BREATHER 14069 14069-Y001 1 CN
BREATHER 14069A 14069-Y002 1 US
SEAL,AIR FILTER 92093 92093-Y002 1
BOLT,FLANGE,6X12 92153 92153-Y023 1
BOLT,FLANGE,6X22 92153A 92153-Y026 1
BOLT,FLANGE,6X25 92154 92154-Y130 1
CLAMP 92171 92171-Y003 1
CLAMP 92171A 92171-Y007 1
CLAMP 92171B 92171-Y008 1
CLAMP 92171C 92171-Y012 2
CLAMP 92171D 92171-Y014 1
CLAMP 92171E 92171-Y015 1
SCREW,5X20 92172 92172-Y018 5
TUBE 92192 92192-Y001 1 CN
TUBE 92192A 92192-Y002 1 CN
TUBE,DRAIN 92192B 92192-Y004 1 CN
TUBE 92192C 92192-Y025 1 US
TUBE 92192D 92192-Y026 1 US
TUBE,DRAIN 92192E 92192-Y027 1 US
