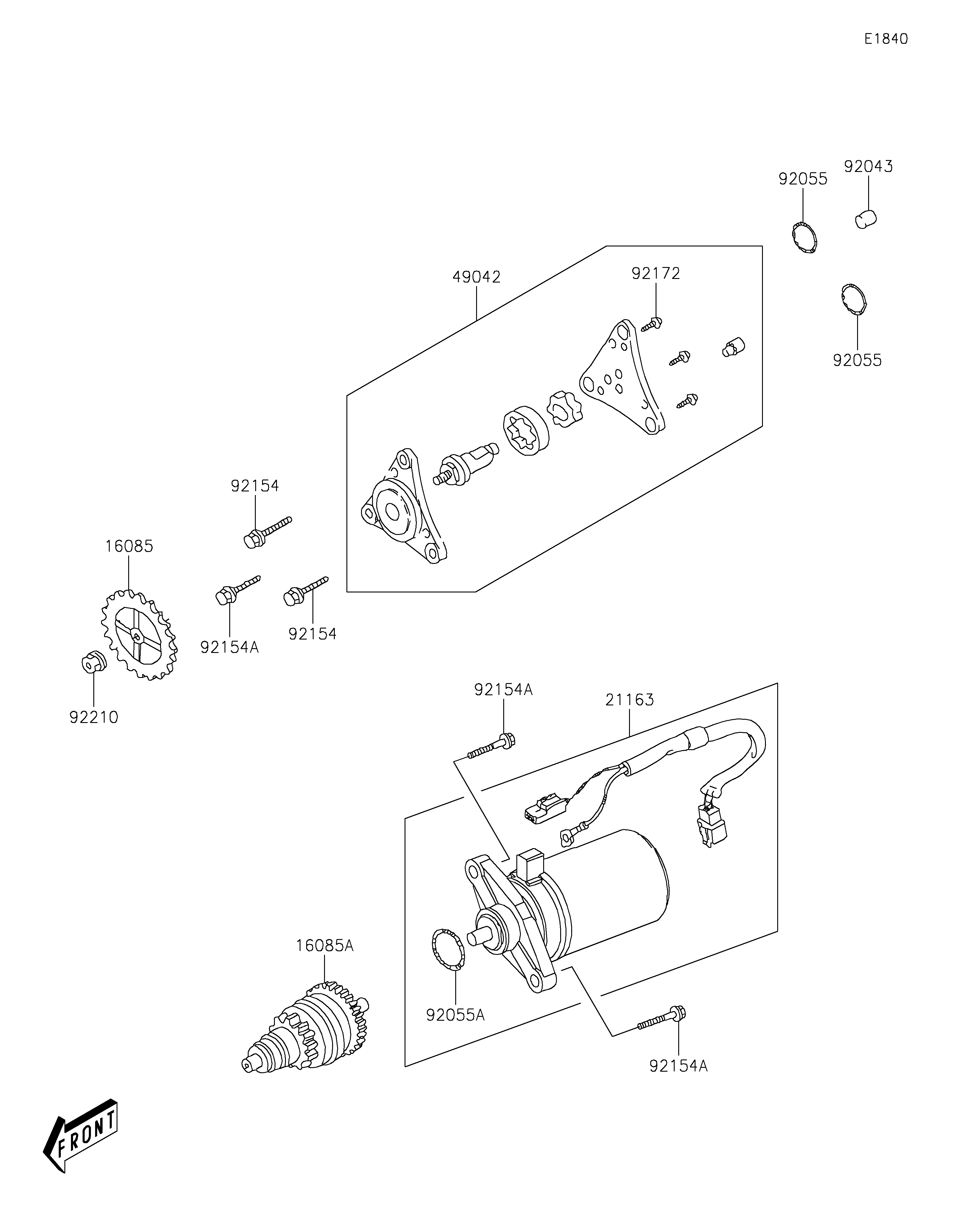

16085
16085A
21163
49042
92043
92055
92055
92055A
92154
92154
92154A
92154A
92154A
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR,OIL PUMP 16085 16085-Y002 1
GEAR,STARTER 16085A 16085-Y007 1
STARTER-ELECTRIC 21163 21163-Y007 1
PUMP-OIL 49042 49042-Y002 1
PIN,8X12 92043 92043-Y007 1
RING-O,9X1.6 92055 92055-Y009 2
RING-O 92055A 92055-Y012 1
BOLT,6X20 92154 92154-Y057 2
BOLT,FLANGE,6X25 92154A 92154-Y066 3
SCREW,4X10 92172 92172-Y071 3
NUT,6MM 92210 92210-Y026 1
