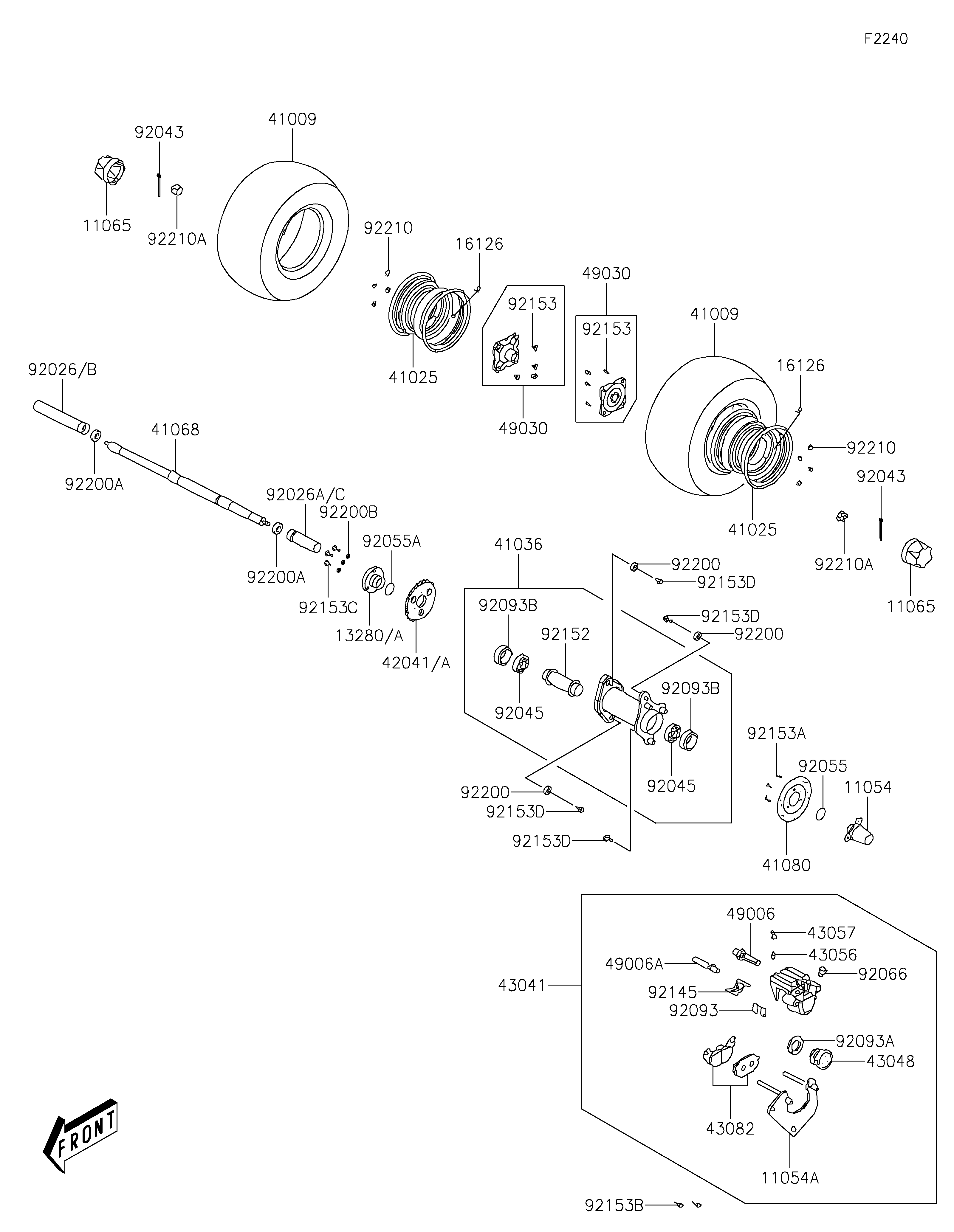

2021 KFX®50 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11065
11065
11065
11065
13280
13280
13280A
13280A
16126
16126
16126
16126
41009
41009
41009
41009
41025
41025
41025
41025
41036
41036
41068
41068
41080
41080
42041
42041
42041A
42041A
43041
43041
43048
43048
43056
43056
43057
43057
43082
43082
49006
49006
49006A
49006A
49030
49030
49030
49030
92026
92026
92026A
92026A
92026B
92026B
92026C
92026C
92043
92043
92043
92043
92045
92045
92045
92045
92055
92055
92055A
92055A
92066
92066
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92145
92145
92152
92152
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92210
92210
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE DISK 11054 11054-Y005 1
BRACKET 11054A 11054-Y008 1
CAP,WHEEL 11065 11065-Y002 2
HOLDER,SPROCKET 13280 13280-Y004 1 CN
HOLDER,SPROCKET 13280A 13280-Y010 1 US
VALVE,RIM 16126 16126-Y001 2
TIRE 41009 41009-Y002 2
RIM,BLACK 41025 41025-Y002-935 2
HUB-ASSY,RR,BLACK 41036 41036-Y001-935 1
AXLE,RR 41068 41068-Y001 1
DISC,RR 41080 41080-Y001 1
SPROCKET-HUB 42041 42041-Y001 1 CN
SPROCKET-HUB 42041A 42041-Y002 1 US
CALIPER-ASSY,RR 43041 43041-Y001 1
PISTON-CALIPER 43048 43048-Y001 1
BREATHER-BRAKE 43056 43056-Y001 1
CAP-BREATHER 43057 43057-Y001 1
PAD-ASSY-BRAKE 43082 43082-Y001 1
BOOT 49006 49006-Y001 1
BOOT 49006A 49006-Y002 1
HUB,RR 49030 49030-Y001 2
SPACER,REAR AXLE,RH 92026 92026-Y005 1 CN
SPACER,REAR AXLE,LH 92026A 92026-Y006 1 CN
SPACER,REAR AXLE,RH 92026B 92026-Y008 1 US
SPACER,REAR AXLE,LH 92026C 92026-Y009 1 US
PIN,3X25 92043 92043-Y011 2
BEARING-BALL,6006 92045 92045-Y008 2
RING-O,30MM 92055 92055-Y015 1
RING-O,30MM 92055A 92055-Y066 1
PLUG 92066 92066-Y001 1
SEAL,DUST 92093 92093-Y005 1
SEAL,PISTON 92093A 92093-Y006 1
SEAL,DUST 92093B 92093-Y009 2
SPRING,PAD 92145 92145-Y012 1
COLLAR 92152 92152-Y007 1
BOLT 92153 92153-Y005 8
BOLT 92153A 92153-Y007 3
BOLT,FLANGE,8X28 92153B 92153-Y012 2
BOLT,FLANGE,8X20 92153C 92153-Y033 3
BOLT,FLANGE,12X28 92153D 92153-Y044 4
WASHER,12.2X28X4 92200 92200-Y012 3
WASHER,14MM 92200A 92200-Y014 2
WASHER,8MM 92200B 92200-Y048 3
NUT,10MM 92210 92210-Y010 8
NUT,14MM 92210A 92210-Y025 2
