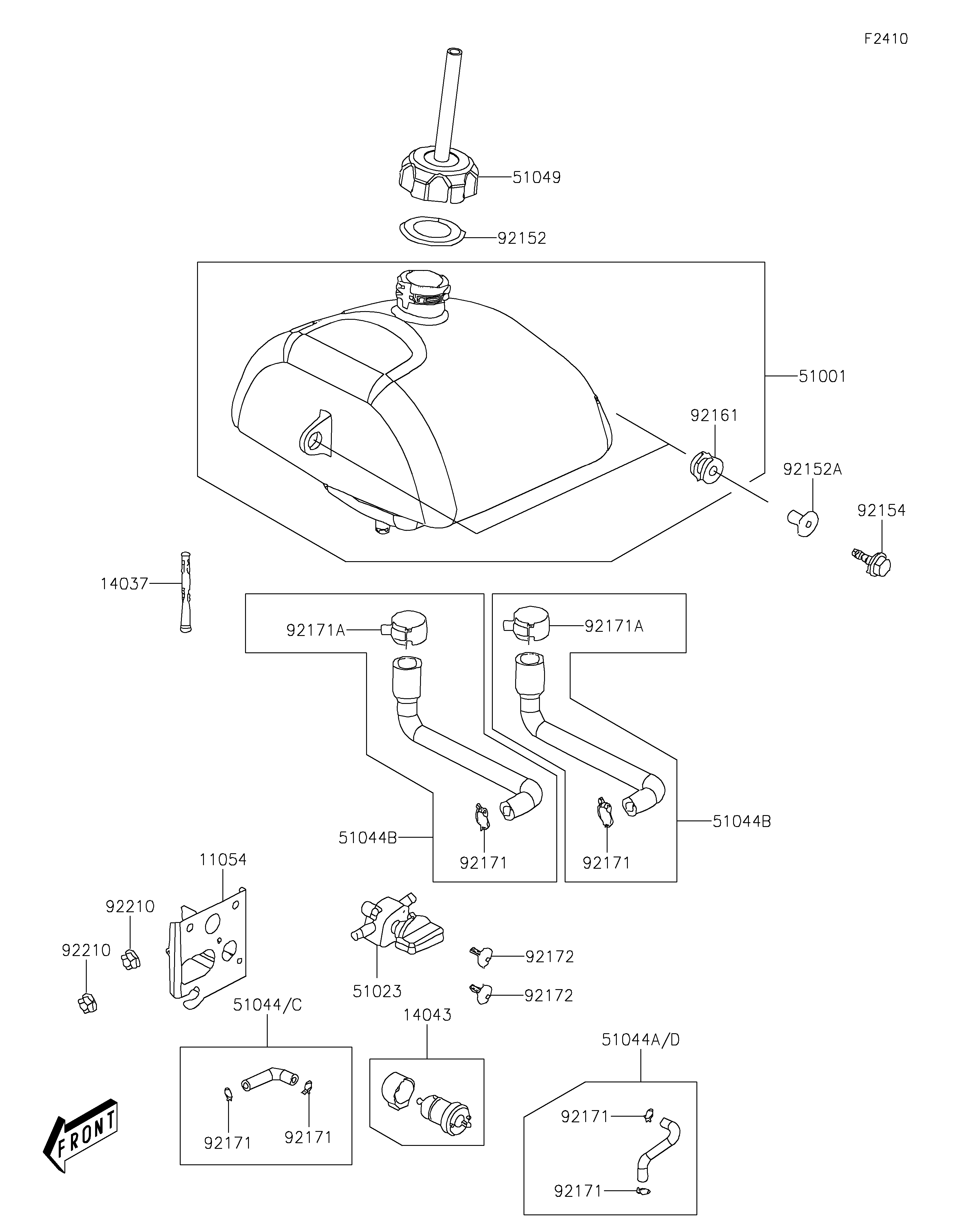

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-Y003 1
SCREEN 14037 14037-Y001 1
FILTER,FUEL 14043 14043-Y002 1
TANK-COMP-FUEL 51001 51001-Y005 1
TAP-ASSY 51023 51023-Y006 1
TUBE-ASSY,FUEL TANK 51044B 51044-Y007 2
TUBE-ASSY,FUEL 51044C 51044-Y018 1 US
TUBE-ASSY,FUEL 51044D 51044-Y019 1 US
CAP-TANK 51049 51049-Y002 1
COLLAR 92152 92152-Y001 1
COLLAR 92152A 92152-Y013 2
BOLT,6X20 92154 92154-Y057 2
DAMPER 92161 92161-Y001 2
CLAMP 92171 92171-Y011 6
CLAMP 92171A 92171-Y013 4
SCREW,5X16 92172 92172-Y067 2
NUT,6MM 92210 92210-Y027 2
