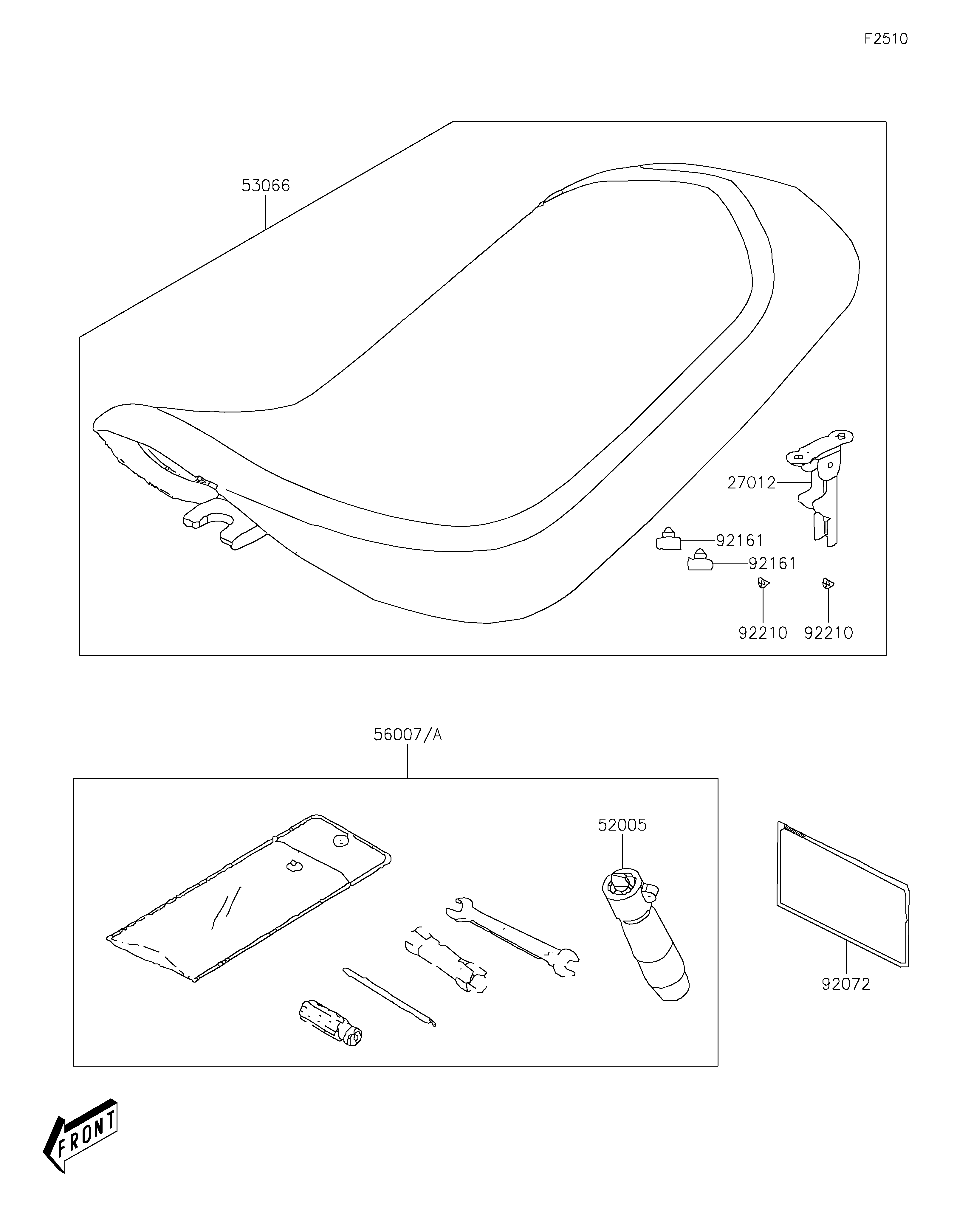

27012
52005
53066
56007
56007A
92072
92161
92161
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOOK,SEAT LOCK 27012 27012-Y001 1
GAUGE,AIR 52005 52005-Y001 1
SEAT-ASSY 53066 53066-Y009 1
TOOL-KIT 56007 56007-Y001 1 CN
TOOL-KIT 56007A 56007-Y002 1 US
BAND,TOOL 92072 92072-Y002 1
DAMPER 92161 92161-Y004 2
NUT,6MM 92210 92210-Y027 2
