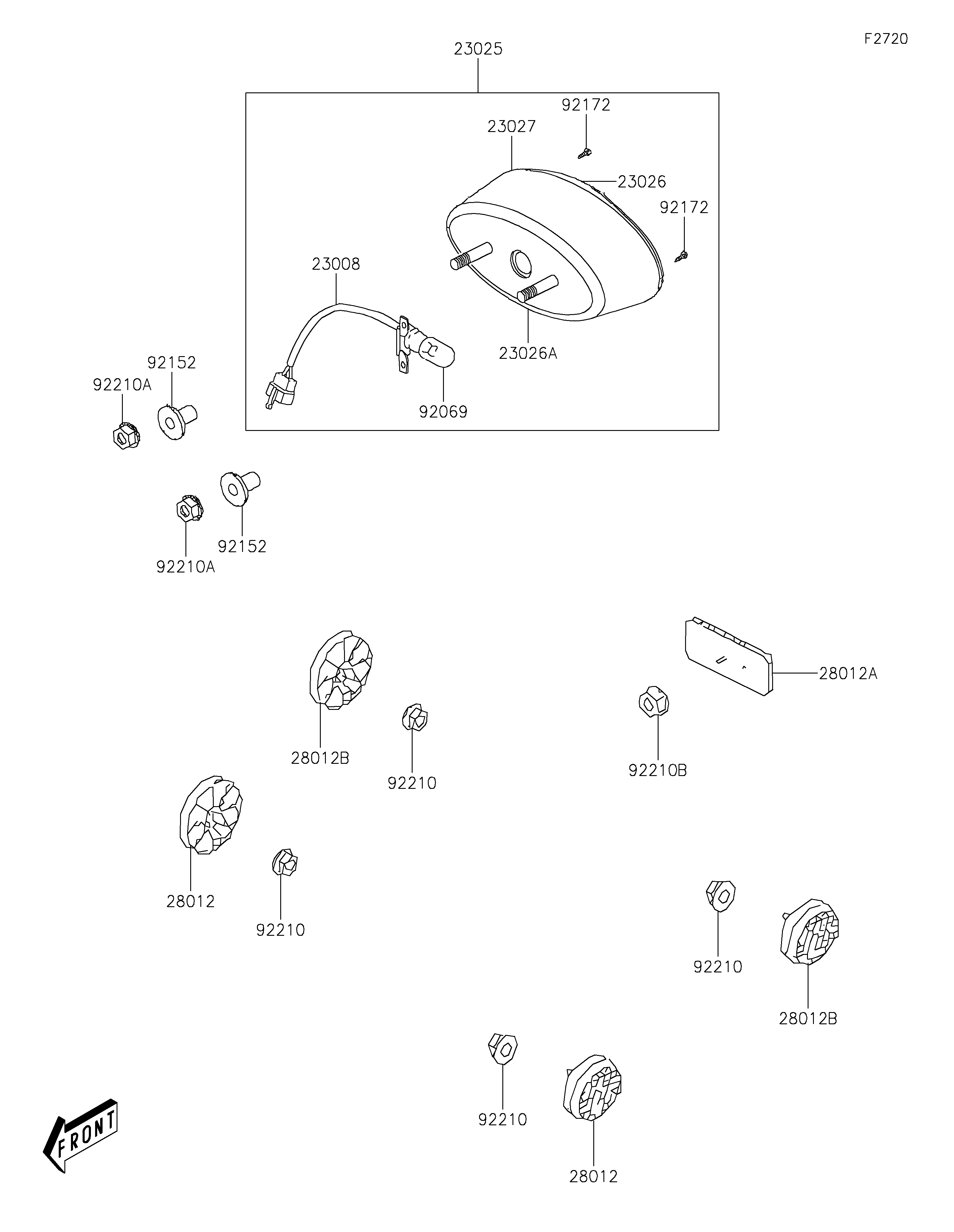

Parts Diagrams |
23008
23025
23026
23026A
23027
28012
28012
28012A
28012B
28012B
92069
92152
92152
92172
92172
92210
92210
92210
92210
92210A
92210A
92210B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SOCKET-ASSY,TAIL LAMP | 23008 | 23008-Y002 | 1 | ||
| LAMP-TAIL | 23025 | 23025-Y002 | 1 | ||
| LENS,TAIL LAMP | 23026 | 23026-Y004 | 1 | ||
| LENS,LICENSE | 23026A | 23026-Y005 | 1 | ||
| BODY-COMP-TAIL LAMP | 23027 | 23027-Y001 | 1 | ||
| REFLECTOR-REFLEX | 28012 | 28012-Y002 | 2 | ||
| REFLECTOR-REFLEX | 28012A | 28012-Y003 | 1 | ||
| REFLECTOR-REFLEX | 28012B | 28012-Y004 | 2 | ||
| BULB | 92069 | 92069-Y001 | 1 | ||
| COLLAR | 92152 | 92152-Y013 | 2 | ||
| SCREW,4X16 | 92172 | 92172-Y026 | 2 | ||
| NUT,6MM | 92210 | 92210-Y026 | 4 | ||
| NUT,6MM | 92210A | 92210-Y027 | 2 | ||
| NUT,FLANGE,5MM | 92210B | 92210-Y053 | 1 |
