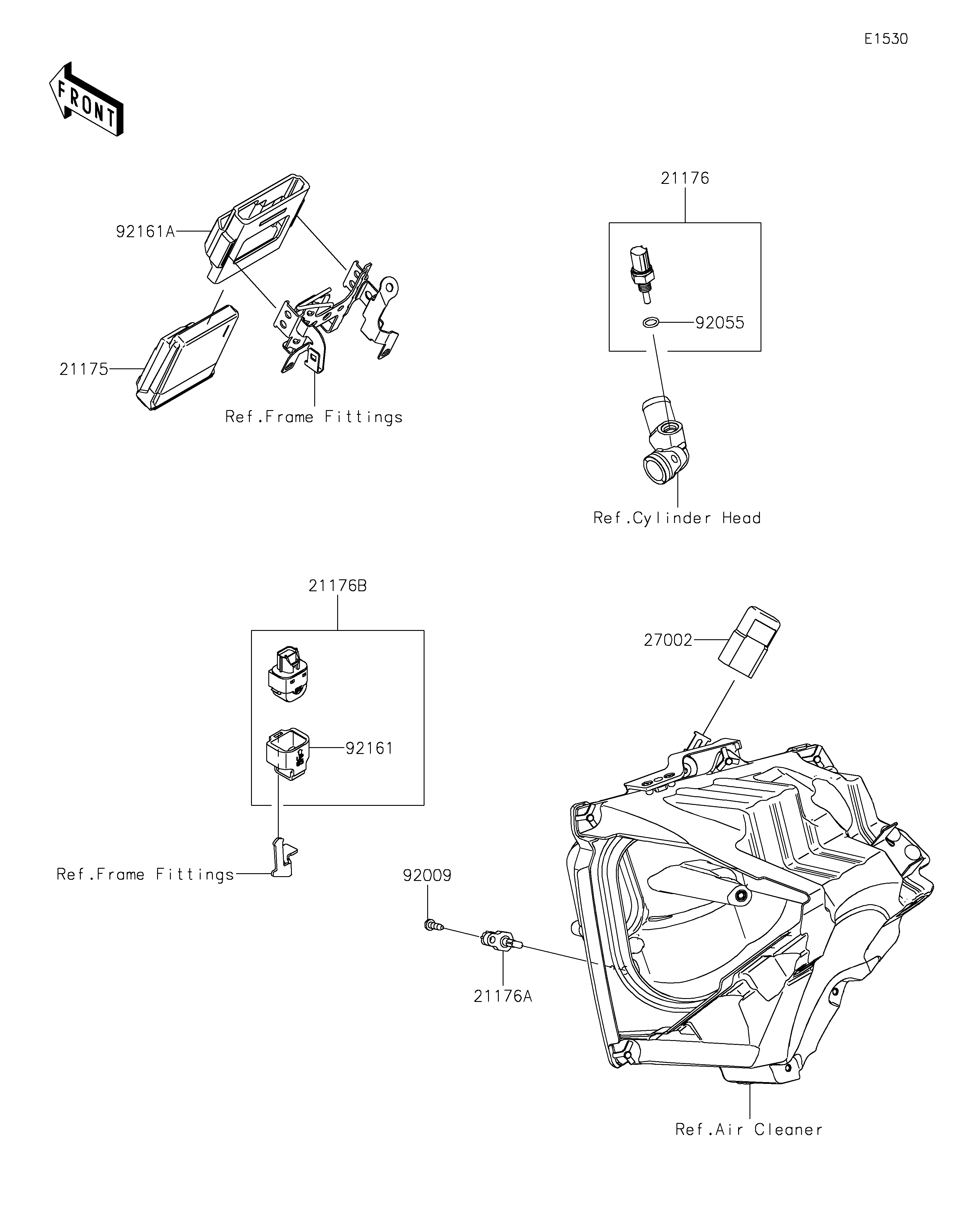

21175
21176
21176A
21176B
27002
92009
92055
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-1361 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,AIR TEMPERATURE 21176A 21176-0048 1
SENSOR,VEHICLE-DOWN 21176B 21176-0704 1
RELAY-ASSY 27002 27002-1086 1
SCREW,TAPPING,5X16 92009 92009-1984 1
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER 92161 92161-0951 1
DAMPER,ECU 92161A 92161-0976 1
