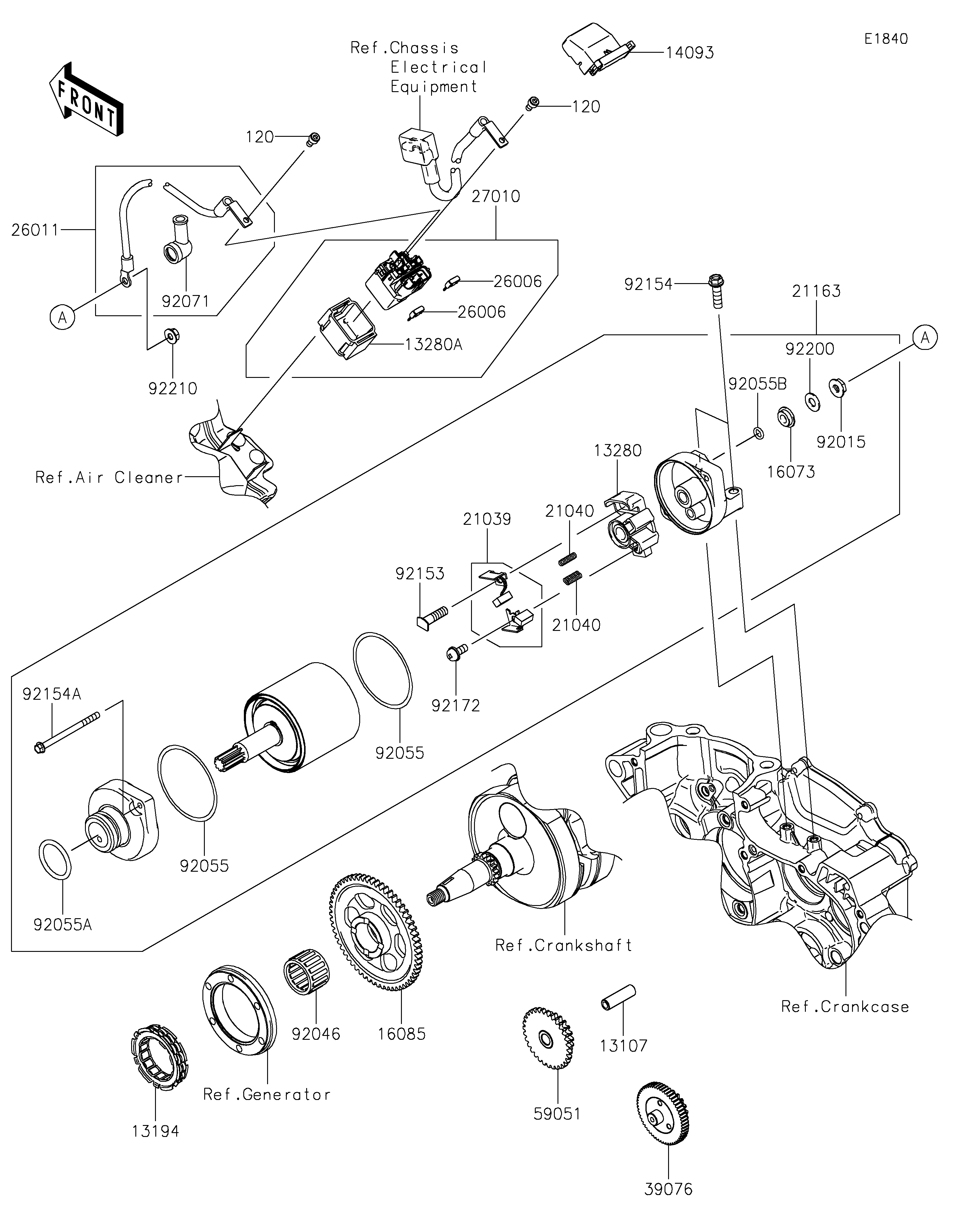

2021 KX™450X - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13107
13194
13280
13280A
14093
16073
16085
21039
21040
21040
21163
26006
26006
26011
27010
39076
59051
92015
92046
92055
92055
92055A
92055B
92071
92153
92154
92154A
92172
92200
92210
120
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,IDLER 13107 13107-0871 1
CLUTCH-ONEWAY 13194 13194-1096 1
HOLDER 13280 13280-0261 1
HOLDER,MAGNETIC SWITCH 13280A 13280-0814 1
COVER,MAGNETIC SWITCH 14093 14093-0716 1
INSULATOR 16073 16073-0053 1
GEAR,60T 16085 16085-0675 1
BRUSH,CARBON SET 21039 21039-0005 1
SPRING-BRUSH 21040 21040-0003 2
STARTER-ELECTRIC 21163 21163-0771 1
FUSE,10A 26006 26006-0033 2
WIRE-LEAD 26011 26011-0998 1
SWITCH,MAGNETIC 27010 27010-0879 1
LIMITER 39076 39076-0037 1
GEAR-SPUR,IDLER 59051 59051-0809 1
NUT,STARTER MOTOR 92015 92015-1476 1
BEARING-NEEDLE,K22X28X17V1 92046 92046-0026 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
GROMMET 92071 92071-0024 1
BOLT 92153 92153-1866 1
BOLT,FLANGED,6X20 92154 92154-2966 2
BOLT 92154A 92154-3958 2
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
NUT,6MM 92210 92210-0188 1
BOLT-SOCKET,5X10 120 120CB0510 2
