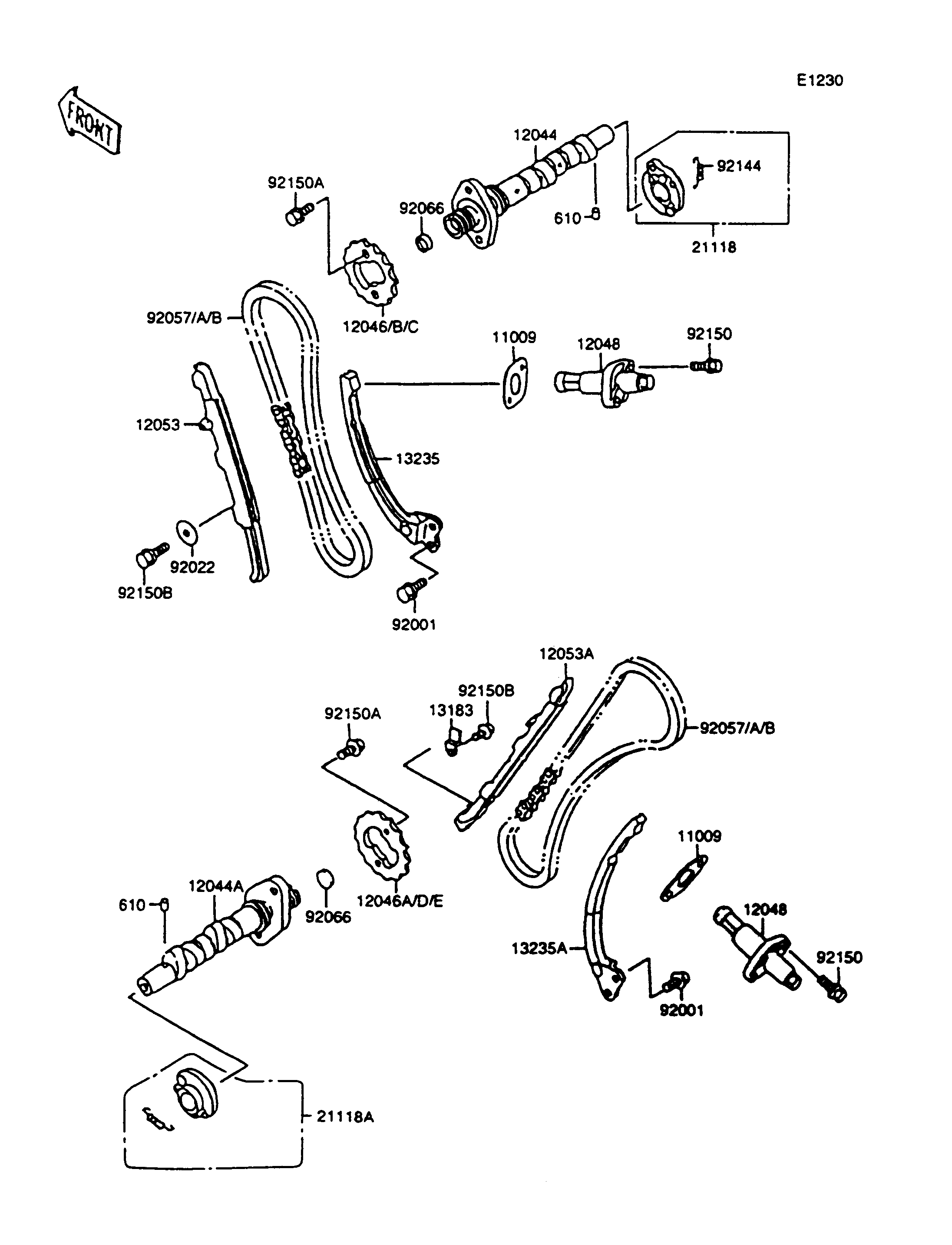

1998 Vulcan 1500 - Camshaft(s)/Tensioner
610
610
11009
11009
12044
12044A
12046
12046A
12046C
12046E
12048
12048
12053
12053A
13183
13235
13235A
21118
21118A
92001
92001
92022
92057
92057
92057B
92057B
92066
92066
92144
92150
92150
92150A
92150A
92150B
92150B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ROLLER,4X6 | 610 | 610A0406 | 2 | ||
GASKET,TENSIONER | 11009 | 11009-1858 | 2 | ||
CAMSHAFT-VALVE,FR | 12044 | 12044-1200 | 1 | ||
CAMSHAFT-VALVE,RR | 12044A | 12044-1201 | 1 | ||
SPROCKET,CAMSHAFT,FR | 12046 | 12046-1105 | 1 | ( - VNT50AE051639) | |
SPROCKET,CAMSHAFT,RR | 12046A | 12046-1106 | 1 | ( - VNT50AE051639) | |
SPROCKET,CAMSHAFT,FR,46T | 12046C | 12046-1175 | 1 | ( VNT50AE051640 - ) | |
SPROCKET,CAMSHAFT,RR,46T | 12046E | 12046-1176 | 1 | ( VNT50AE051640 - ) | |
TENSIONER-ASSY | 12048 | 12048-1088 | 2 | ||
GUIDE-CHAIN,FR,TENSIONER | 12053 | 12053-1219 | 1 | ||
GUIDE-CHAIN,RR,TENSIONER | 12053A | 12053-1221 | 1 | ||
PLATE | 13183 | 13183-1096 | 1 | ||
GUIDE-COMP | 13235 | 13235-1060 | 1 | ||
GUIDE-COMP | 13235A | 13235-1061 | 1 | ||
DECOMPRESSOR,FR | 21118 | 21118-1061 | 1 | ||
DECOMPRESSOR,RR | 21118A | 21118-1083 | 1 | ||
BOLT,6X16 | 92001 | 92001-1457 | 4 | ||
WASHER,7X27X1.6 | 92022 | 92022-227 | 1 | ||
CHAIN,CAM,82RH2010-144L | 92057 | 92057-1234 | 2 | ( - VNT50AE051639) | |
CHAIN,CAM,92RH2010 | 92057B | 92057-1422 | 2 | ( VNT50AE051640 - ) | |
PLUG | 92066 | 92066-1198 | 2 | ||
SPRING,DECOMPRESSOR | 92144 | 92144-1209 | 1 | ||
BOLT,6X20 | 92150 | 92150-1056 | 4 | ||
BOLT,FLANGED,6X11 | 92150A | 92150-1725 | 4 | ||
BOLT,6X12 | 92150B | 92150-1868 | 2 |
