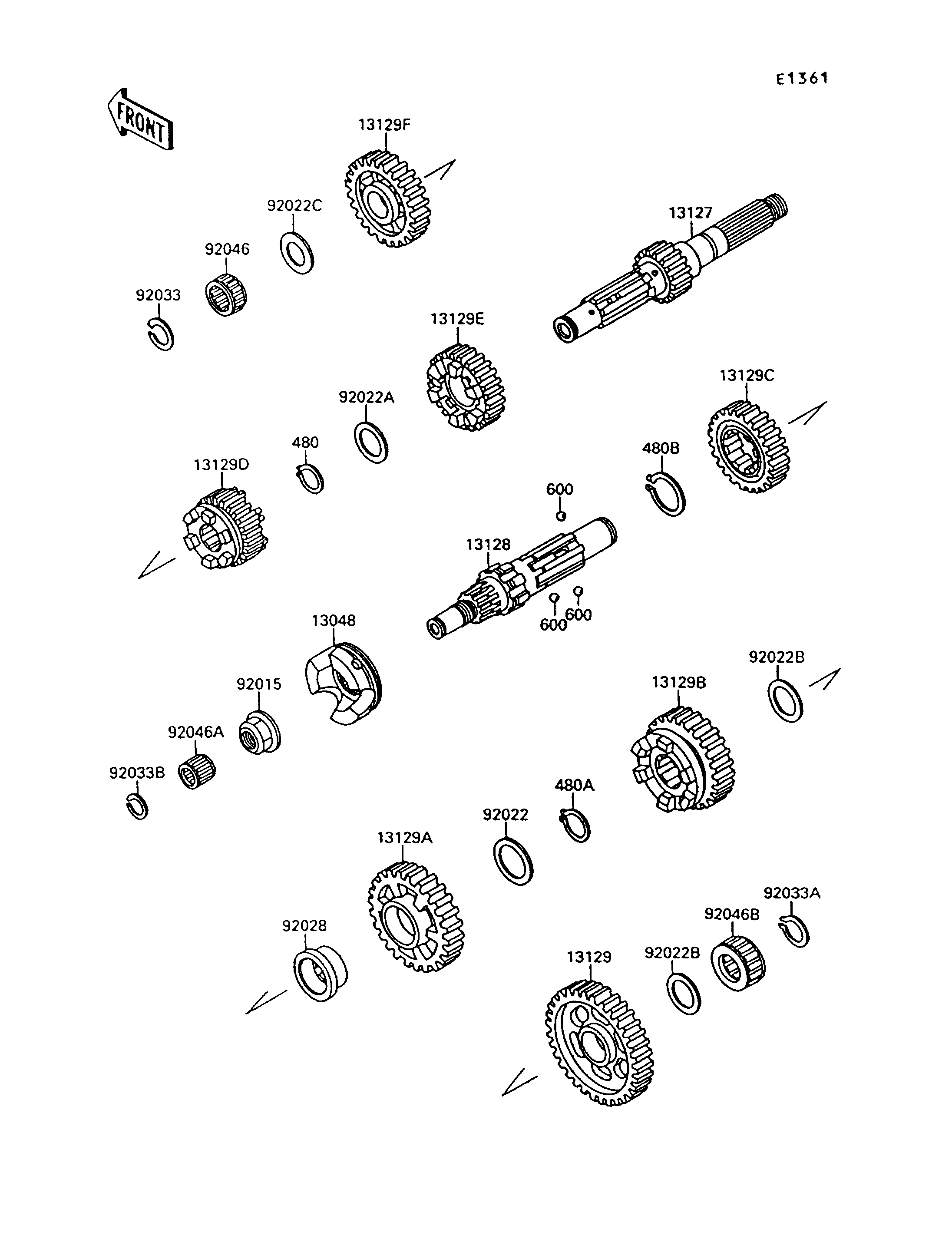

1996 Vulcan 1500 - Transmission(VN1500-A10)

DOWNLOAD PDF
SELECT A NEW PART
480
480A
480B
600
600
600
13048
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
92015
92022
92022A
92022B
92022B
92022C
92028
92033
92033A
92033B
92046
92046A
92046B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,28MM 480 480J2800 1
CIRCLIP-TYPE-C,32MM 480A 480J3200 1
CIRCLIP 480B 480J4000 1
BALL-STEEL,5/32" 600 600A0500 3
CAM-DAMPER 13048 13048-1073 1
SHAFT-TRANSMISSION INPUT,16T 13127 13127-1155 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1144 1
GEAR,OUTPUT LOW,40T 13129 13129-1842 1
GEAR,OUTPUT 2ND,35T 13129A 13129-1843 1
GEAR,OUTPUT 3RD,31T 13129B 13129-1844 1
GEAR,OUTPUT 4TH,28T 13129C 13129-1845 1
GEAR,INPUT 2ND,22T 13129D 13129-1905 1
GEAR,INPUT 3RD,26T 13129E 13129-1906 1
GEAR,INPUT 4TH,29T 13129F 13129-1907 1
NUT,20MM 92015 92015-1610 1
WASHER,32X40X1.6 92022 92022-1693 1
WASHER,INPUT,3RD,LH 92022A 92022-1854 1
WASHER,OUTPUT,LOW 92022B 92022-1855 2
WASHER,22.3X35X1.6 92022C 92022-212 1
BUSHING,OUTPUT,2ND 92028 92028-1478 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,25MM 92033A 92033-1172 1
RING-SNAP 92033B 92033-1208 1
BEARING-NEEDLE,FWF-223014 92046 92046-031 1
BEARING-NEEDLE,K182420V1 92046A 92046-1154 1
BEARING-NEEDLE,RS25/18 92046B 92046-1166 1
