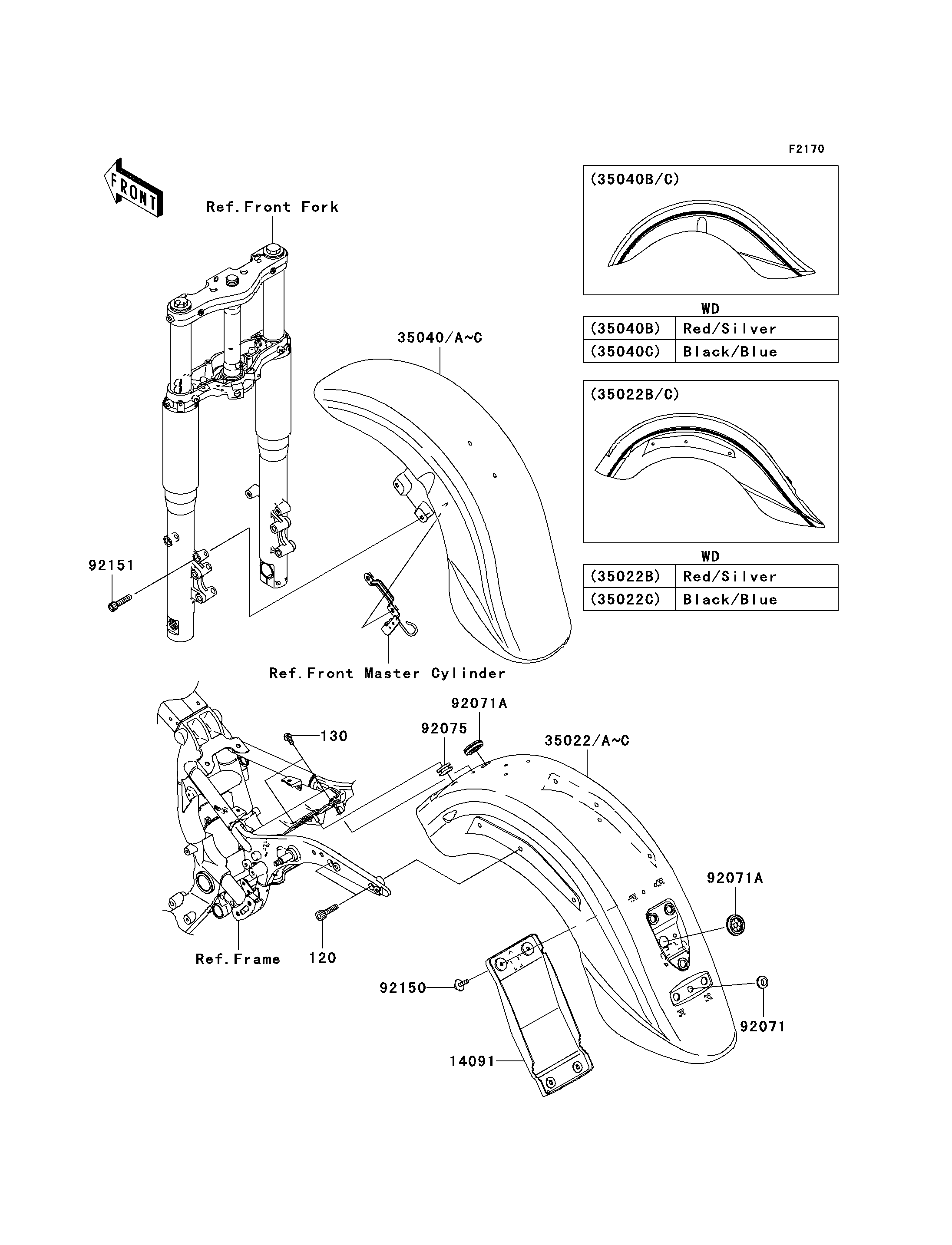

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30 120 120S0830 4
BOLT-FLANGED,8X16 130 130J0816 2
COVER,TAIL LAMP 14091 14091-0370 1
FENDER-COMP-REAR,RED/SILVER 35022B 35022-5189-224 1
FENDER-COMP-FRONT,RED/SILVER 35040B 35040-5017-224 1
GROMMET,10MM 92071 92071-019 1
GROMMET 92071A 92071-1265 2
DAMPER 92075 92075-1067 1
BOLT,FLANGED,6X14 92150 92150-1689 4
BOLT,SOCKET,8X35 92151 92151-1535 4
