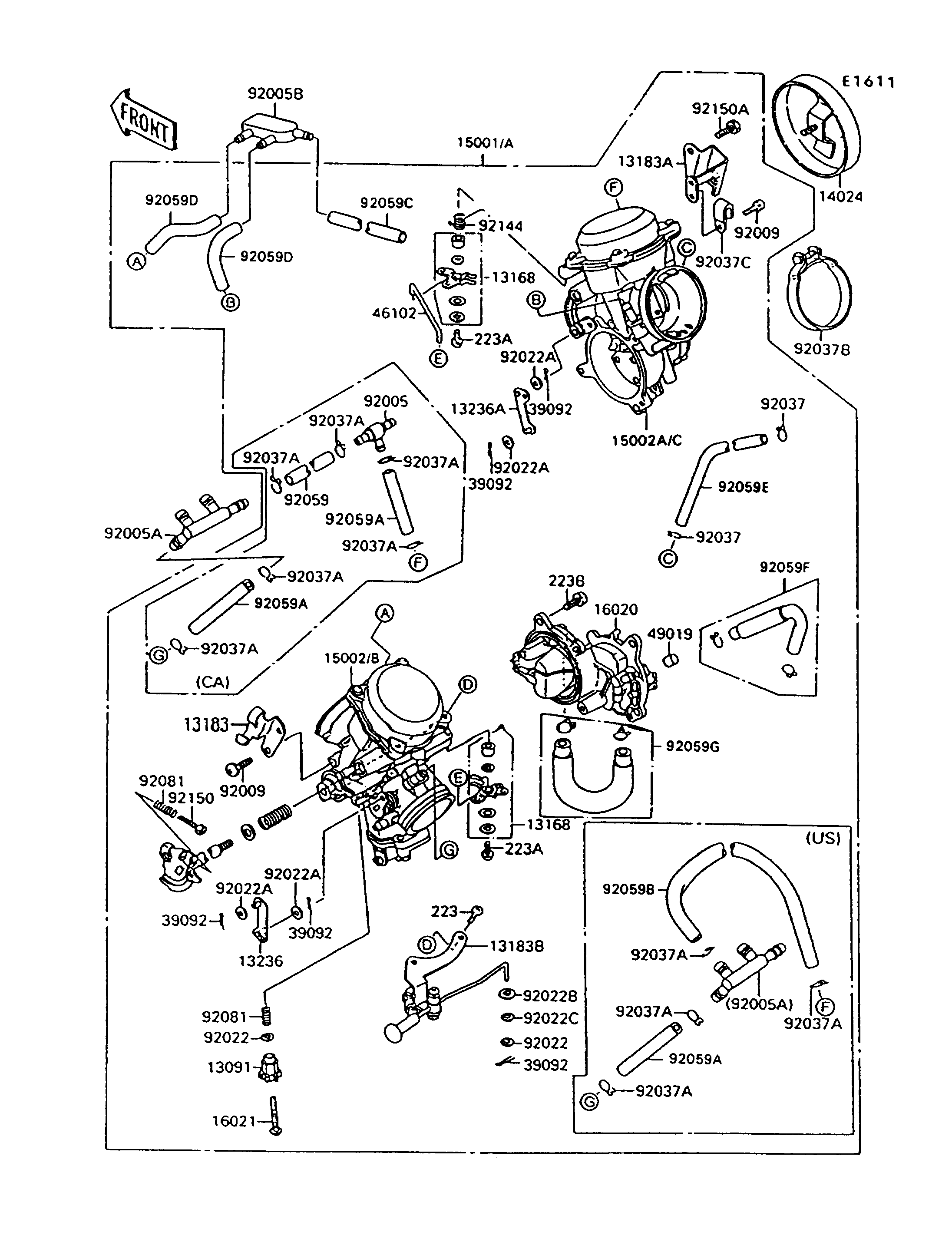

1998 Vulcan 1500 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
13168
13168
13168
13168
13183
13183
13183A
13183A
13183B
13183B
13236
13236
13236A
13236A
14024
14024
16020
16020
16021
16021
39092
39092
39092
39092
39092
39092
39092
39092
39092
39092
46102
46102
49019
49019
92005A
92005A
92005A
92005A
92005B
92005B
92009
92009
92009
92009
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92037
92037
92037
92037
92037B
92037B
92037C
92037C
223
223
223A
223A
223A
223A
223B
223B
92059D
92059D
92059D
92059D
92059E
92059E
92059F
92059F
92059G
92059G
92081
92081
92081
92081
92144
92144
92150
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,THROTTLE STOP SCREW 13091 13091-1382 1
LEVER,STARTER 13168 13168-1384 2
PLATE,THROTTLE CABLE 13183 13183-1213 1
PLATE,COVER 13183A 13183-1215 1
PLATE,STARTER 13183B 13183-1244 1
LEVER-COMP,LINK,RR 13236 13236-1165 1
LEVER-COMP,LINK,FR 13236A 13236-1166 1
COVER 14024 14024-1586 1
CHAMBER-FLOAT 16020 16020-1059 1
SCREW-THROTTLE STOP 16021 16021-1122 1
PIN-HAIR 39092 39092-1051 5
ROD,STARTER 46102 46102-1232 1
FILTER-FUEL 49019 49019-1059 1
FITTING 92005A 92005-1164 1
FITTING 92005B 92005-1165 1
SCREW,5X10 92009 92009-1365 2
WASHER,PLAIN,STOP SPRING 92022 92022-1480 2
WASHER,3.1X8X0.5,POLYACETAL 92022A 92022-1676 4
WASHER,4.3X9.0X1.0,POLYACETAL 92022B 92022-1913 1
WASHER,5.0X7.5X1.0,POLYACETAL 92022C 92022-1914 1
CLAMP,TUBE 92037 92037-1142 2
CLAMP 92037B 92037-1637 2
CLAMP 92037C 92037-1958 1
SCREW-PAN-WS-CROS 223 223C0420 2
SCREW-PAN-WS-CROS 223A 223D0425 2
SCREW-PAN-WS-CROS 223B 223D0512 6
TUBE,7X11X160 92059D 92059-1883 2
TUBE,3X7X750 92059E 92059-1884 1
TUBE,5.3X10.5X190 92059F 92059-1885 1
TUBE,5.3X10.5X140 92059G 92059-1886 1
SPRING,THROTTLE STOP SCREW 92081 92081-1617 2
SPRING 92144 92144-1220 1
BOLT,4X20 92150 92150-1032 1
BOLT,10X16 92150A 92150-1033 1
CARBURETOR-ASSY 15001 15001-1336 1
CARBURETOR-ASSY 15001A 15001-1354 1
CARBURETOR,RR 15002 15002-1565 1
CARBURETOR,FR 15002A 15002-1566 1
CARBURETOR,RR 15002B 15002-1567 1
CARBURETOR,FR 15002C 15002-1568 1
FITTING,FUEL,T-TYPE 92005 92005-1112 1
CLAMP,TUBE 92037A 92037-1477 4
CLAMP,TUBE 92037A 92037-1477 6
TUBE,5X9X180 92059 92059-1377 1
TUBE,5X9X35 92059A 92059-1880 1
TUBE,5X9X35 92059A 92059-1880 2
TUBE,5X9X245 92059B 92059-1881 1
TUBE,7X11X460 92059C 92059-1882 1
