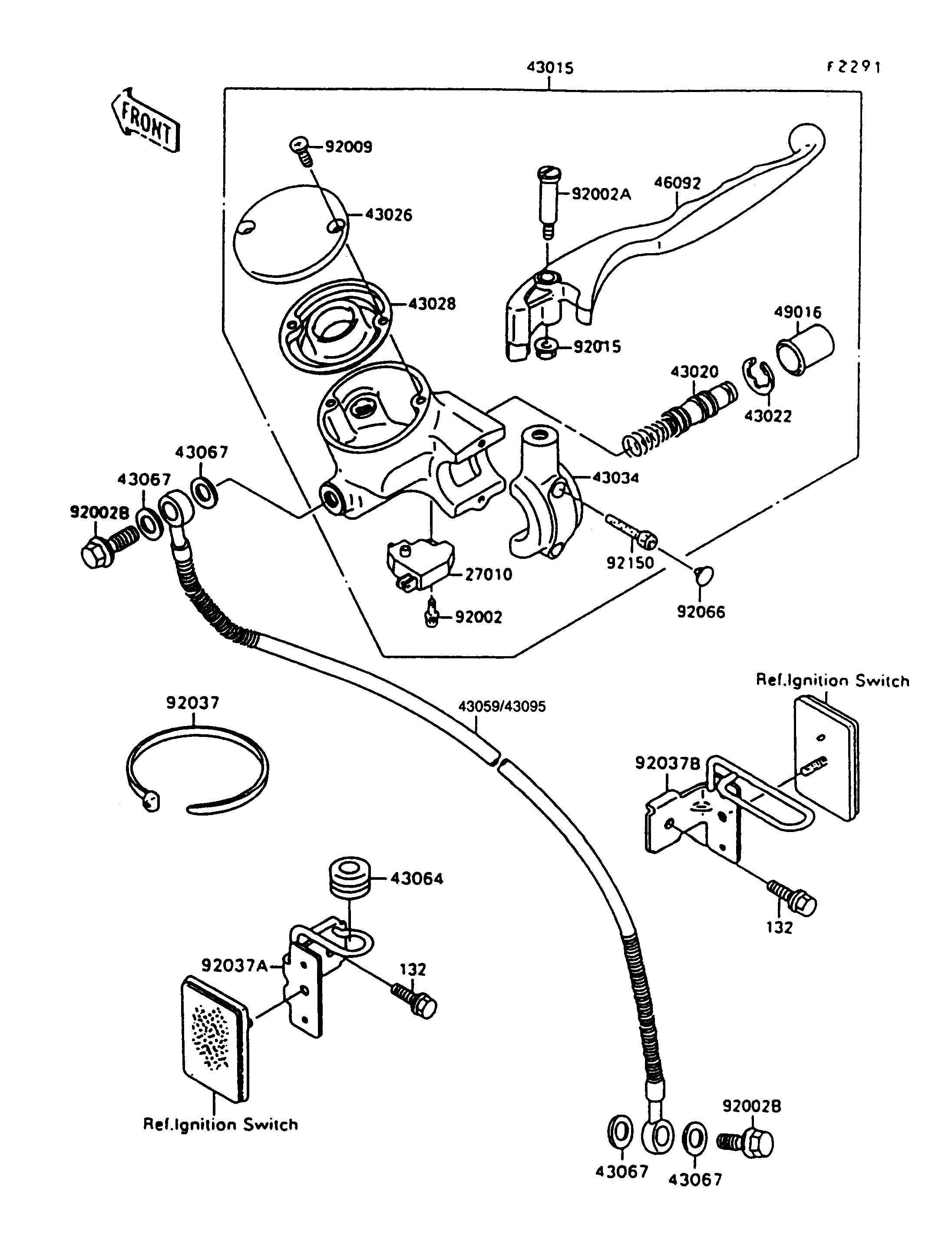

1998 Vulcan 1500 - Front Master Cylinder
132
132
27010
43015
43020
43022
43026
43028
43034
43064
43067
43067
43067
43067
43095
46092
49016
92002
92002A
92002B
92002B
92009
92015
92037
92037A
92037B
92066
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132E0610 | 2 | ||
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1511 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1098 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE,SILVER | 43026 | 43026-1078 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1071 | 1 | ||
HOLDER-BRAKE,SILVER | 43034 | 43034-1102 | 1 | ||
GROMMET,HOSE CLAMP | 43064 | 43064-006 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
HOSE-BRAKE,FR | 43095 | 43095-1076 | 1 | ||
LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1172 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,SCREW,4X12 | 92002 | 92002-1323 | 1 | ||
BOLT,LEVER SET | 92002A | 92002-1561 | 1 | ||
BOLT,OIL,L=23 | 92002B | 92002-1888 | 2 | ||
SCREW,5MM | 92009 | 92009-1440 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
CLAMP | 92037 | 92037-1173 | 2 | ||
CLAMP,HOSE | 92037A | 92037-1884 | 1 | ||
CLAMP,CABLE | 92037B | 92037-1885 | 1 | ||
PLUG | 92066 | 92066-1301 | 2 | ||
BOLT,SOCKET,6MM | 92150 | 92150-1025 | 2 |
