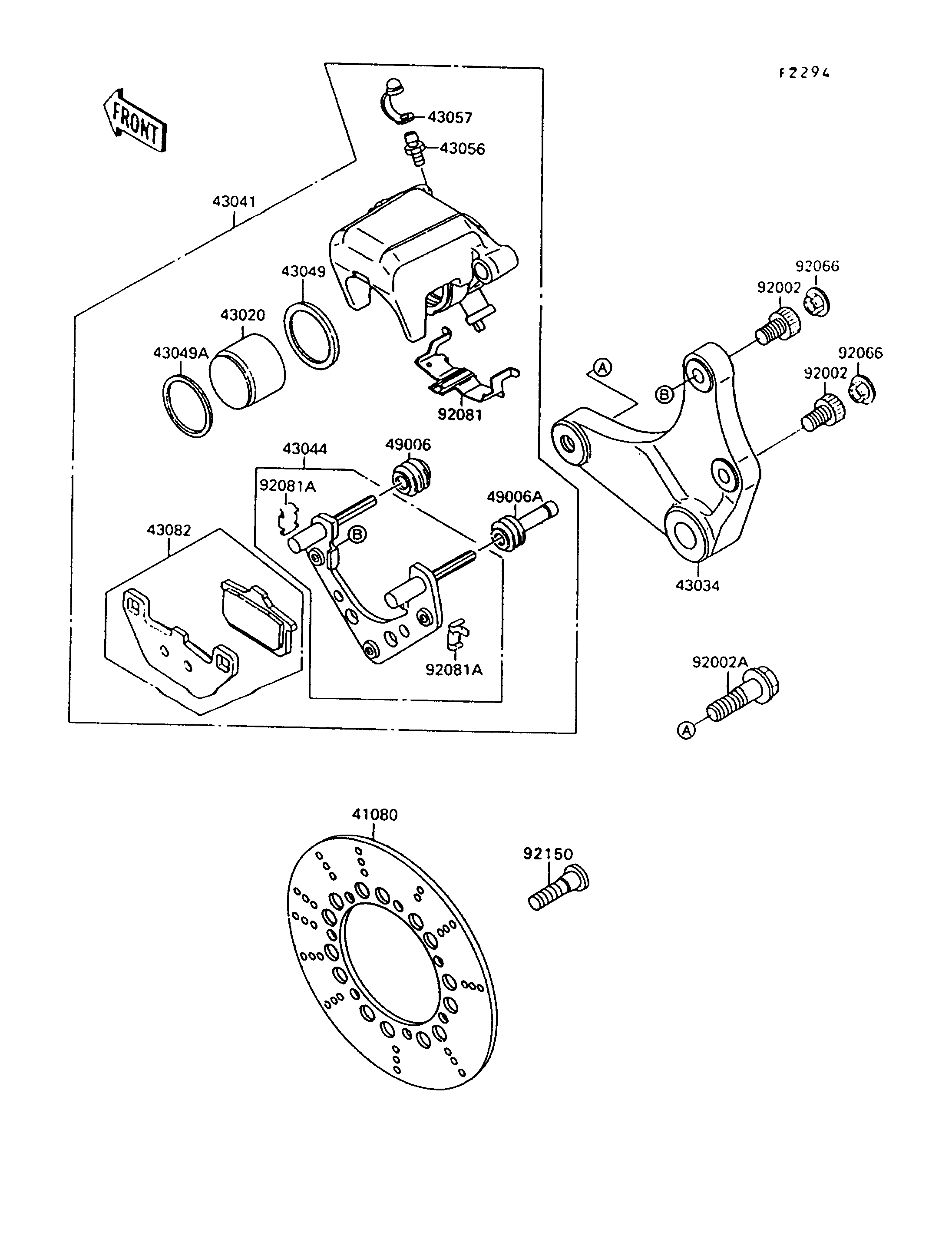

Parts Diagrams |
41080
43020
43034
43041
43044
43049
43049A
43056
43057
43082
49006
49006A
92002
92002
92002A
92066
92066
92081
92081A
92081A
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,RR,SILVER | 41080 | 41080-1128 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1066 | 1 | ||
HOLDER-BRAKE,REAR CALIPER | 43034 | 43034-1080 | 1 | ||
CALIPER-ASSY,RR,SILVER NO.1 | 43041 | 43041-1588-GN | 1 | ||
HOLDER-COMP-CALIPER,RR | 43044 | 43044-1103 | 1 | ||
RING,PISTON SEAL | 43049 | 43049-002 | 1 | ||
PACKING,PISTON | 43049A | 43049-1028 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1054 | 1 | ||
CAP-BREATHER | 43057 | 43057-003 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-1062 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1094 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1095 | 1 | ||
BOLT,SOCKET,10X17 | 92002 | 92002-1713 | 2 | ||
BOLT,FLANGED,12X40 | 92002A | 92002-1969 | 1 | ||
PLUG | 92066 | 92066-1285 | 2 | ||
SPRING,PAD | 92081 | 92081-1525 | 1 | ||
SPRING,PAD STOPPER | 92081A | 92081-1661 | 2 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 7 |
