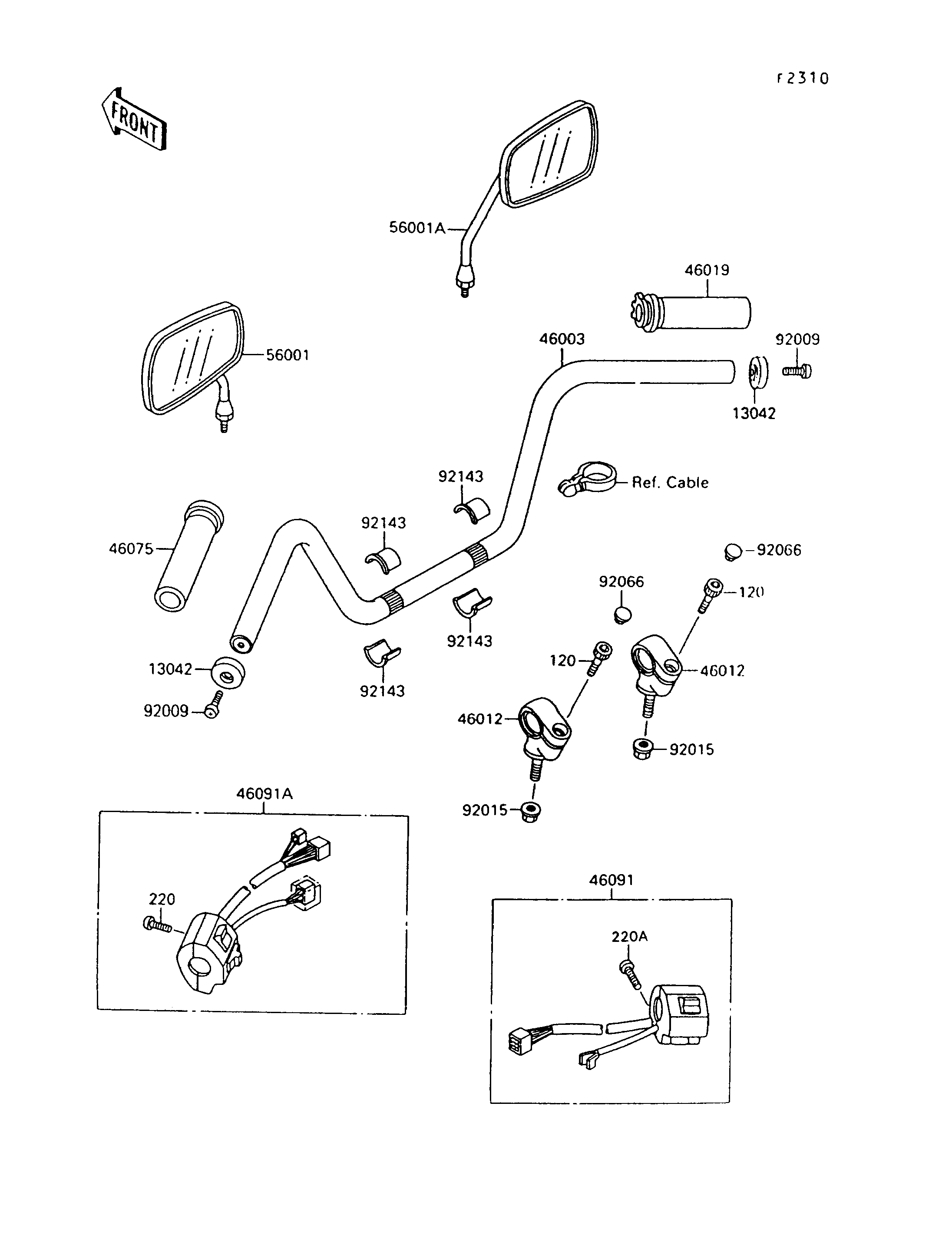

Parts Diagrams |
120
120
220
220A
13042
13042
46003
46012
46012
46019
46075
46091
46091A
56001
56001A
92009
92009
92015
92015
92066
92066
92143
92143
92143
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,10X25 | 120 | 120P1025 | 2 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220E0514 | 2 | ||
| SCREW-PAN-CROS | 220A | 220E0516 | 2 | ||
| WEIGHT,HANDLE | 13042 | 13042-1068 | 2 | ||
| HANDLE | 46003 | 46003-1243 | 1 | ||
| HOLDER-HANDLE | 46012 | 46012-1171 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1065 | 1 | ||
| GRIP,LH | 46075 | 46075-1074 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1448 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091A | 46091-1449 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1303 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1304 | 1 | ||
| SCREW,8X20 | 92009 | 92009-1484 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92015 | 92015-1717 | 2 | ||
| PLUG | 92066 | 92066-1285 | 2 | ||
| COLLAR,HANDLE HOLDER | 92143 | 92143-1098 | 4 |
