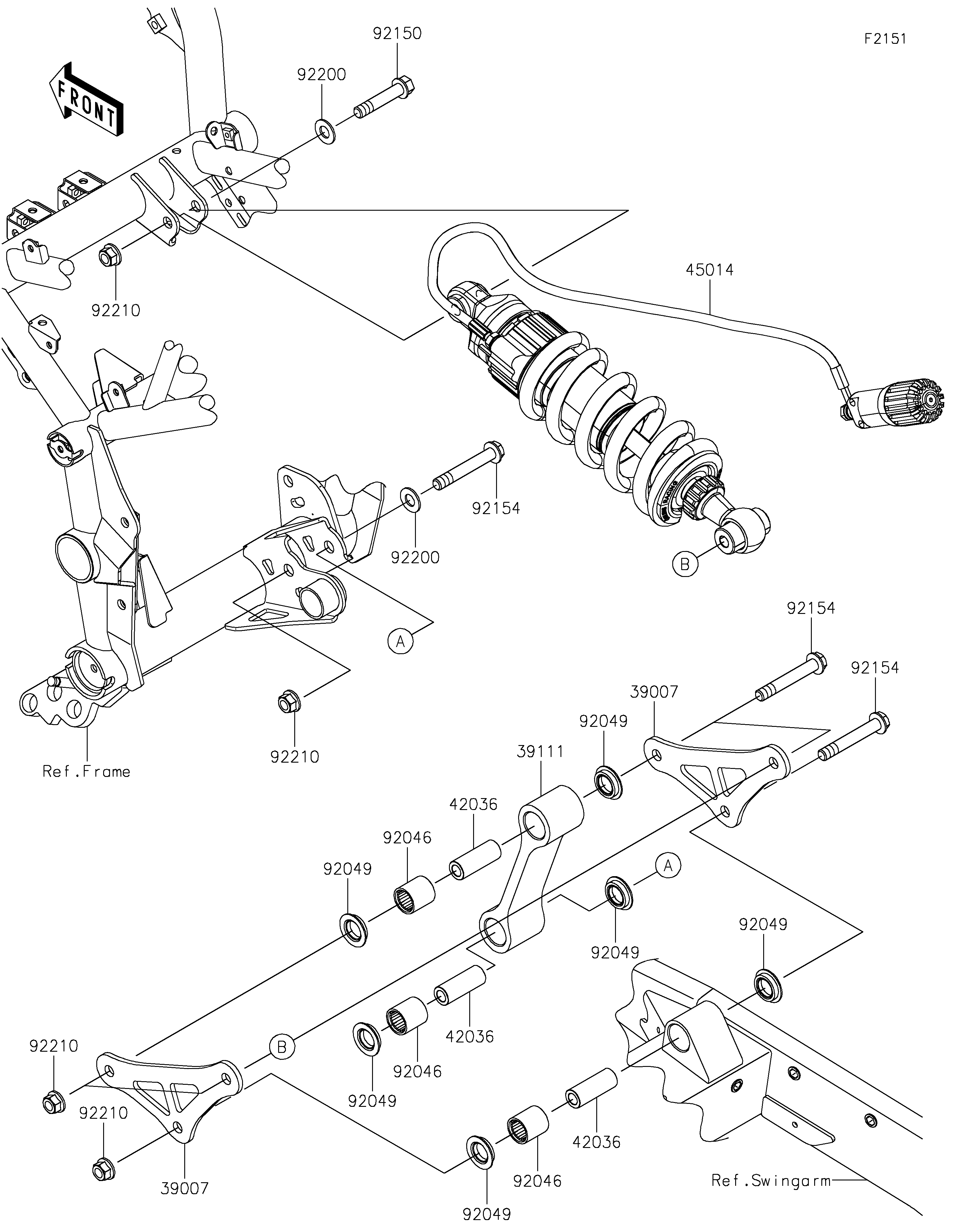

2022 Z900 SE - Suspension/Shock Absorber
39007
39007
39111
42036
42036
42036
45014
92046
92046
92046
92049
92049
92049
92049
92049
92049
92150
92154
92154
92154
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP | 39007 | 39007-0403 | 2 | ||
| ROD-TIE | 39111 | 39111-0370 | 1 | ||
| SLEEVE,10.1X17X44.5 | 42036 | 42036-1342 | 3 | ||
| SHOCKABSORBER,OHLINS | 45014 | 45014-0733 | 1 | ||
| BEARING-NEEDLE,SFYZM172425 | 92046 | 92046-1273 | 3 | ||
| SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 6 | ||
| BOLT,FLANGED,10X50 | 92150 | 92150-1125 | 1 | ||
| BOLT,FLANGED,10X66 | 92154 | 92154-2204 | 4 | ||
| WASHER,11X22X1.6 | 92200 | 92200-1836 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 5 |
