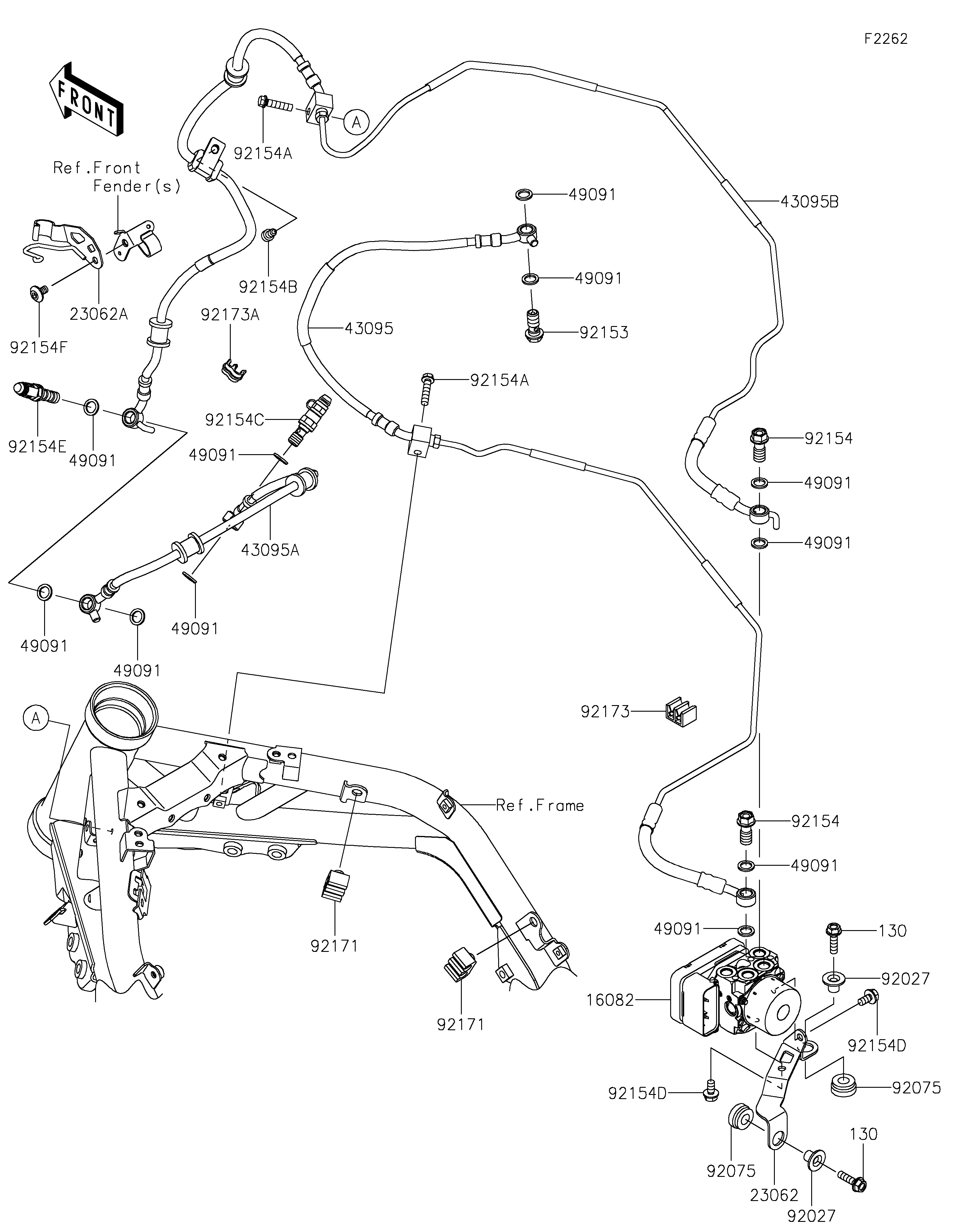

2022 Z900 SE - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
16082
23062
23062A
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92027
92027
92075
92075
92153
92154
92154
92154A
92154A
92154B
92154C
92154D
92154D
92154E
92154F
92171
92171
92173
92173A
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-ASSY-OIL,ABS 16082 16082-0844 1
BRACKET-COMP,ABS UNIT 23062 23062-1235 1
BRACKET-COMP,FR FENDER 23062A 23062-1369 1
HOSE-BRAKE,FR M/C-ABS UNIT 43095 43095-1736 1
HOSE-BRAKE,FR,485MM 43095A 43095-1739 1
HOSE-BRAKE,FR CALIPER-ABS UNIT 43095B 43095-1793 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 11
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
DAMPER 92075 92075-277 2
BOLT,OIL,L=23 92153 92153-0627 1
BOLT,BANJO,10X22 92154 92154-1138 2
BOLT,FLANGED,6X25 92154A 92154-2154 2
BOLT-SOCKET,6X12 92154B 92154-2688 1
BOLT,BANJO,10X19 92154C 92154-4032 1
BOLT,FLANGED,6X12 92154D 92154-4121 2
BOLT,BANJO,10X31.5 92154E 92154-4137 1
BOLT,SOCKET,6X10 92154F 92154-4298 1
CLAMP 92171 92171-0818 2
CLAMP 92173 92173-2106 1
CLAMP 92173A 92173-2301 1
BOLT-FLANGED,6X22 130 130BA0622 2
