Parts Diagrams |
11057
13159
13236
21007
21176
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
49016
92002
92009
92015
92033
92033A
92055
92153
92154
92154A
92154B
92154C
92170
92170
92173
130

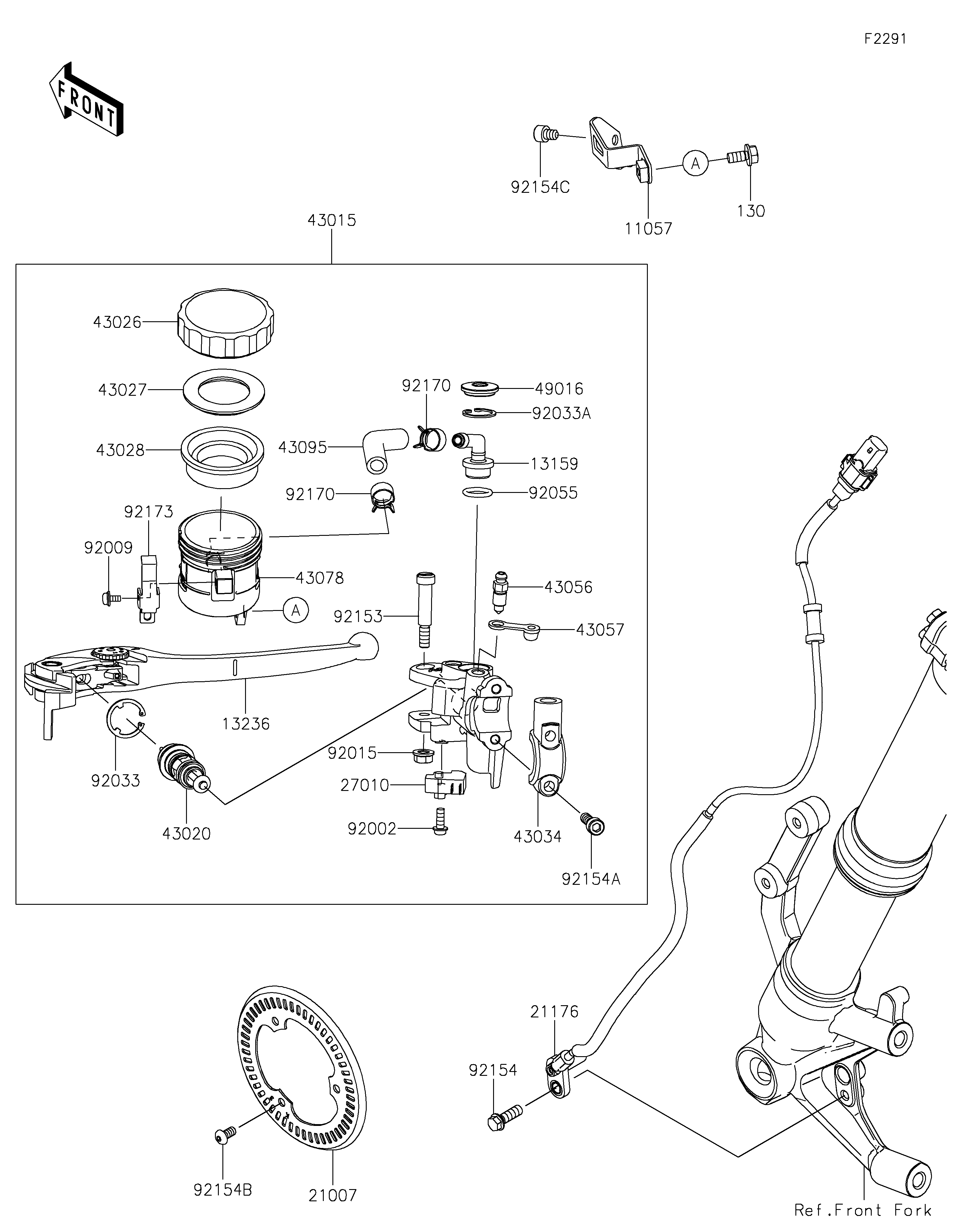

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,MASTER CYLINDER | 11057 | 11057-4128 | 1 | ||
CONNECTOR | 13159 | 13159-1061 | 1 | ||
LEVER-COMP,FRONT BRAKE | 13236 | 13236-0139 | 1 | ||
ROTOR,SENSOR,FR | 21007 | 21007-0671 | 1 | ||
SENSOR,SPEED,FR | 21176 | 21176-0973 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-0762 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-0769 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-0028 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-0057 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1056 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
RESERVOIR | 43078 | 43078-0591 | 1 | ||
HOSE-BRAKE | 43095 | 43095-1753 | 1 | ||
COVER-SEAL | 49016 | 49016-1147 | 1 | ||
BOLT,SCREW,4X12 | 92002 | 92002-1323 | 1 | ||
SCREW | 92009 | 92009-1570 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
RING-SNAP | 92033 | 92033-0034 | 1 | ||
RING-SNAP,20.5MM | 92033A | 92033-1186 | 1 | ||
RING-O,14.8X2.4 | 92055 | 92055-0741 | 1 | ||
BOLT,LEVER | 92153 | 92153-0868 | 1 | ||
BOLT,FLANGED,6X18 | 92154 | 92154-0784 | 1 | ||
BOLT,SOCKET,6X22 | 92154A | 92154-1271 | 2 | ||
BOLT,SOCKET,5X10 | 92154B | 92154-2801 | 3 | ||
BOLT,SOCKET,6X8 | 92154C | 92154-2914 | 1 | ||
CLAMP,HOSE | 92170 | 92170-1091 | 2 | ||
CLAMP | 92173 | 92173-1790 | 1 | ||
BOLT-FLANGED,6X12 | 130 | 130BA0612 | 1 |
