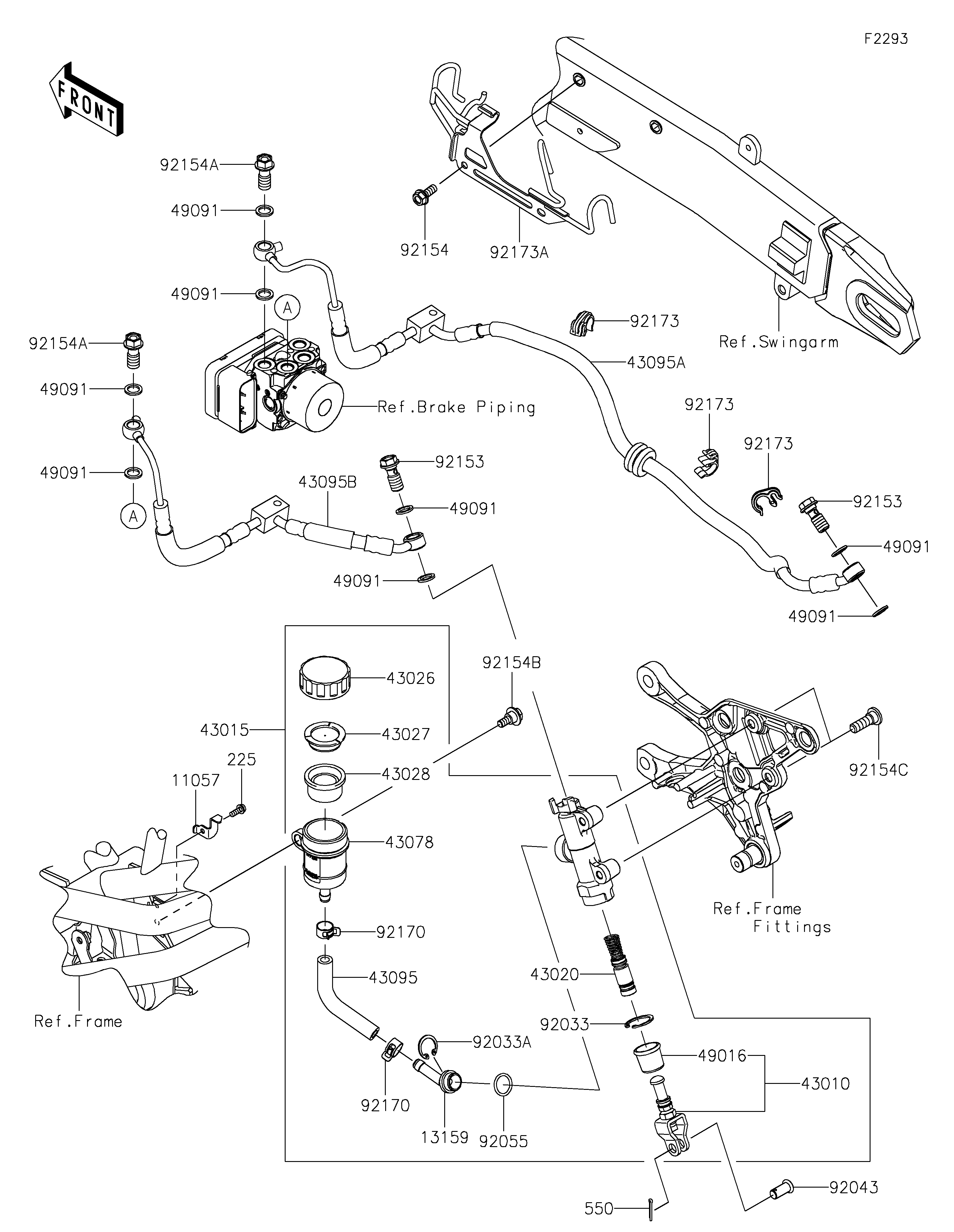

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11057
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
49091
49091
49091
49091
92033
92033A
92043
92055
92153
92153
92154
92154A
92154A
92154B
92154C
92170
92170
92173
92173
92173
92173A
225
550
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11057 | 11057-0258 | 1 | ||
CONNECTOR | 13159 | 13159-0008 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-0020 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-0650 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
CAP-BRAKE | 43026 | 43026-0009 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1053 | 1 | ||
DIAPHRAGM | 43028 | 43028-1065 | 1 | ||
RESERVOIR | 43078 | 43078-0060 | 1 | ||
HOSE-BRAKE,RR M/CYL. | 43095 | 43095-1432 | 1 | ||
HOSE-BRAKE,RR CALIPER-ABS UNIT | 43095A | 43095-1685 | 1 | ||
HOSE-BRAKE,RR M/C-ABS UNIT | 43095B | 43095-1686 | 1 | ||
COVER-SEAL,BRAKE PISTON | 49016 | 49016-1103 | 1 | ||
WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 8 | ||
RING-SNAP,20.9X24.6X1.2 | 92033 | 92033-0079 | 1 | ||
RING-SNAP,20.5MM | 92033A | 92033-1186 | 1 | ||
PIN | 92043 | 92043-0904 | 1 | ||
RING-O,14.8X2.4 | 92055 | 92055-0741 | 1 | ||
BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
BOLT,FLANGED,6X16 | 92154 | 92154-1055 | 2 | ||
BOLT,BANJO,10X22 | 92154A | 92154-1138 | 2 | ||
BOLT,FLANGED,6X16 | 92154B | 92154-2685 | 1 | ||
BOLT,SOCKET,8X25 | 92154C | 92154-4299 | 2 | ||
CLAMP,HOSE | 92170 | 92170-1091 | 2 | ||
CLAMP,HOSE&SENSOR LINE | 92173 | 92173-1613 | 3 | ||
CLAMP,HOSE&SENSOR LINE | 92173A | 92173-2115 | 1 | ||
SCREW-PAN-WSP-CROS,4X12 | 225 | 225AB0412 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550AA2015 | 1 |
BRACKET | |
REF # | 11057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CONNECTOR | |
REF # | 13159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER,RR | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-DIAPHRAGM | |
REF # | 43027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR M/CYL. | |
REF # | 43095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR CALIPER-ABS UNIT | |
REF # | 43095A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR M/C-ABS UNIT | |
REF # | 43095B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL,BRAKE PISTON | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SEAL,10.1X14.5X1.5 | |
REF # | 49091 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
RING-SNAP,20.9X24.6X1.2 | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,20.5MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,14.8X2.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X16 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,BANJO,10X22 | |
REF # | 92154A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X16 | |
REF # | 92154B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X25 | |
REF # | 92154C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,HOSE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,HOSE&SENSOR LINE | |
REF # | 92173 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,HOSE&SENSOR LINE | |
REF # | 92173A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS,4X12 | |
REF # | 225 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
