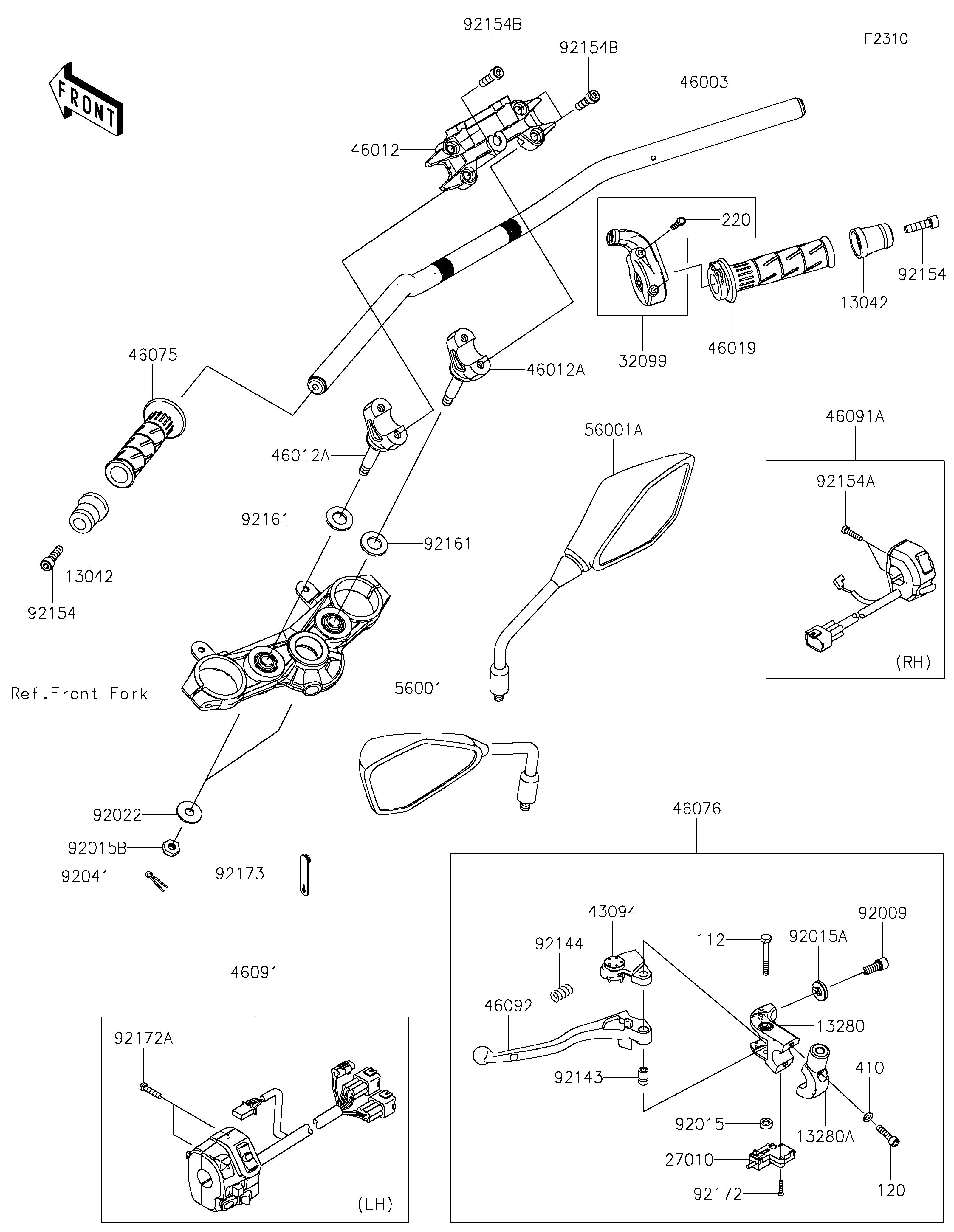

2022 Z900 SE - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13280
13280A
27010
32099
43094
46003
46012
46012A
46012A
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92015A
92015B
92022
92041
92143
92144
92154
92154
92154A
92154B
92154B
92161
92161
92172
92172A
92173
112
120
220
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5024 2
HOLDER,CLUTCH LEVER 13280 13280-0306 1
HOLDER,CLUTCH LEVER 13280A 13280-0307 1
SWITCH,CLUTCH 27010 27010-0849 1
CASE,THROTTLE 32099 32099-0049 1
ADJUSTER 43094 43094-0009 1
HANDLE,F.S.BLACK 46003 46003-0782-18R 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0396-18R 1
HOLDER-HANDLE,LWR,F.S.BLACK 46012A 46012-0411-18R 2
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0122 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0492 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0546 1
LEVER-GRIP,CLUTCH 46092 46092-0569 1
MIRROR-ASSY,LH 56001 56001-0299 1
MIRROR-ASSY,RH 56001A 56001-0300 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
NUT,LOCK,10MM 92015B 92015-1962 2
WASHER,10.2X28X2 92022 92022-1088 2
COTTER,8MM 92041 92041-1060 2
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,SOCKET,8X30 92154 92154-0440 2
BOLT,5X22 92154A 92154-2483 2
BOLT,SOCKET,8X30 92154B 92154-2683 4
DAMPER 92161 92161-0037 2
SCREW,3X16 92172 92172-0183 2
SCREW-PAN-CROS,5X25 92172A 92172-1140 2
CLAMP 92173 92173-2198 1
BOLT-UPSET,6X45 112 112BB0645 1
BOLT-SOCKET,6X25 120 120CB0625 2
SCREW-PAN-CROS,5X35 220 220AB0535 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
