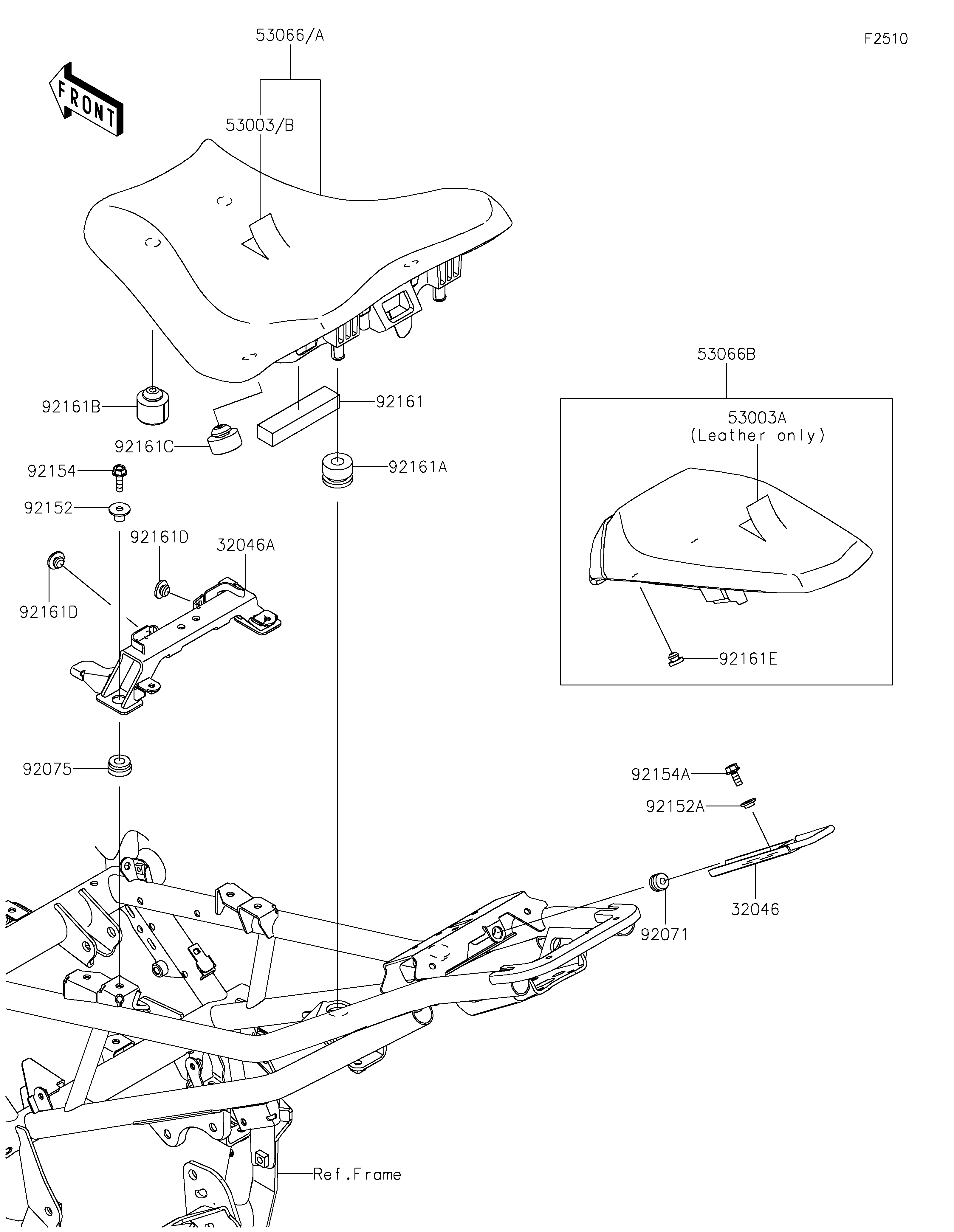

2022 Z900 SE - Seat

DOWNLOAD PDF
SELECT A NEW PART
32046
32046A
53003A
53066B
92071
92075
92152
92152A
92154
92154A
92161
92161A
92161B
92161C
92161D
92161D
92161E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-SEAT,FR LOCK 32046 32046-0401 1
BRACKET-SEAT,FR 32046A 32046-0450 1
LEATHER,RR SEAT,BLACK 53003A 53003-0433-MA 1
SEAT-ASSY,RR,BLACK+BLK 53066B 53066-0668-12Y 1
GROMMET 92071 92071-0038 1
DAMPER 92075 92075-277 2
COLLAR 92152 92152-2616 2
COLLAR,L=4.6 92152A 92152-2694 1
BOLT,FLANGED,6X20 92154 92154-0776 2
BOLT-FLANGED,6X14 92154A 92154-4292 1
DAMPER,20X90X15 92161 92161-1867 1
DAMPER,12X28X21 92161A 92161-1913 2
DAMPER,14X30X22 92161B 92161-1969 2
DAMPER,14X30X14.5 92161C 92161-1970 2
DAMPER 92161D 92161-2250 2
DAMPER 92161E 92161-2308 2
