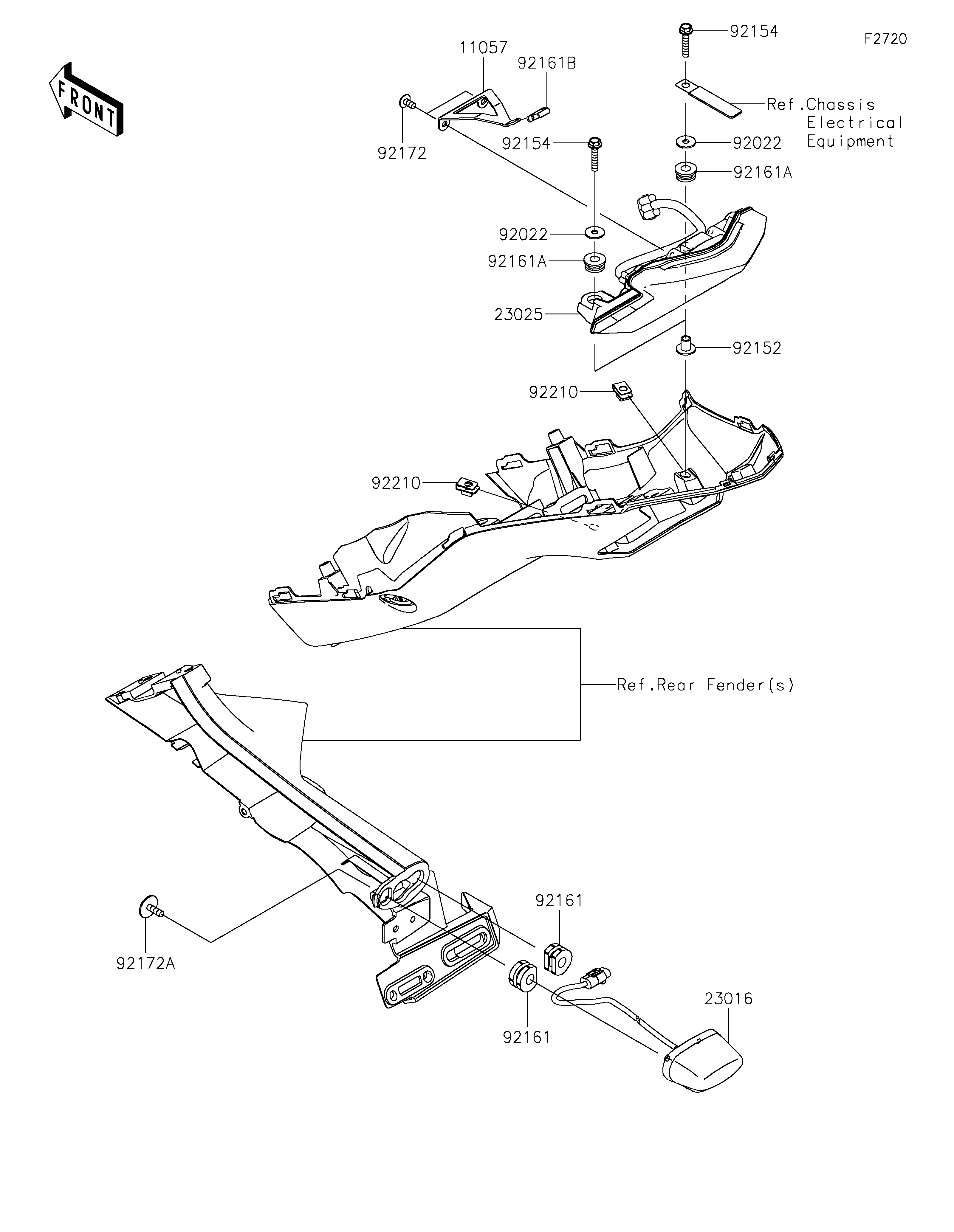

2022 Z900 SE - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
23016
23025
92022
92022
92152
92154
92154
92161
92161
92161A
92161A
92161B
92172
92172A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL LAMP 11057 11057-0247 1
LAMP-ASSY,LICENSE,LED 23016 23016-0639 1
LAMP-TAIL 23025 23025-0361 1
WASHER,5.2X16X1.2 92022 92022-263 2
COLLAR,5.6X8X11.2 92152 92152-1562 2
BOLT,FLANGED,5X25 92154 92154-2682 2
DAMPER 92161 92161-0776 2
DAMPER,8X18X8.1 92161A 92161-1369 2
DAMPER 92161B 92161-1917 1
SCREW,5X10 92172 92172-0864 2
SCREW,TAPTITE,5X16 92172A 92172-1427 2
NUT,PLATE,5MM 92210 92210-0935 2
