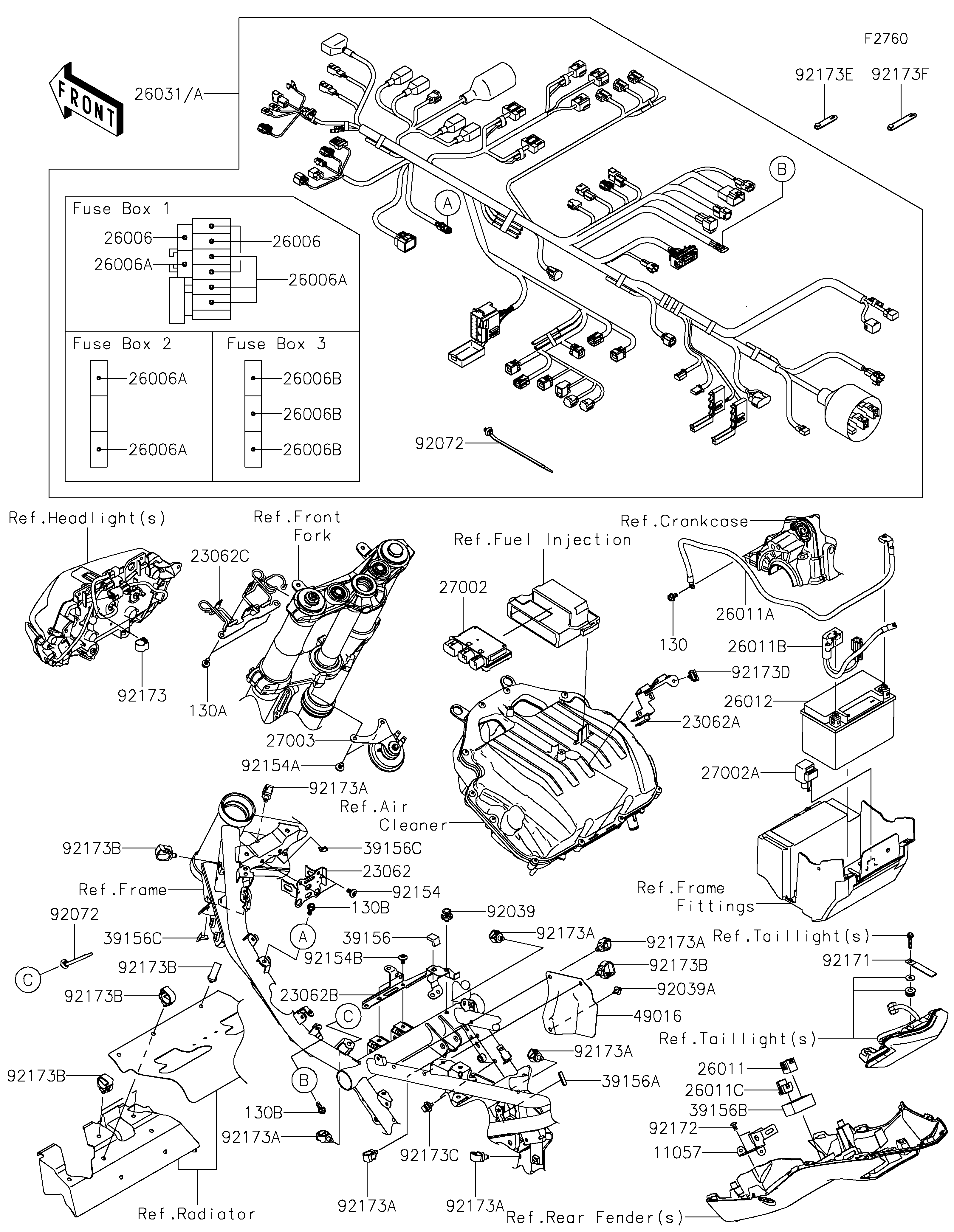

2022 Z900 SE - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
23062
23062
23062A
23062A
23062B
23062B
23062C
23062C
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
27002
27002
27002A
27002A
27003
27003
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156C
39156C
49016
49016
92039
92039
92039A
92039A
92072
92072
92072
92072
92154
92154
92154A
92154A
92154B
92154B
92171
92171
92172
92172
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173C
92173C
92173D
92173D
92173E
92173E
92173F
92173F
130
130
130A
130A
130B
130B
130B
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY 11057 11057-0316 1
BRACKET-COMP,V.D. SENSOR 23062 23062-0894 1
BRACKET-COMP,A/C BOX 23062A 23062-1240 1
BRACKET-COMP,HARNESS 23062B 23062-1296 1
BRACKET-COMP 23062C 23062-1306 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,7.5A,BROWN 26006A 26006-0055 6
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 3
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0972 1
WIRE-LEAD,BATTERY(+) 26011B 26011-1888 1
WIRE-LEAD,DIAG CONNECTOR 26011C 26011-1901 1
BATTERY,FTX9-BS,12V 8AH 26012 26012-0608 1
RELAY-ASSY 27002 27002-0050 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0121 1
PAD,25X25X2 39156 39156-2573 1
PAD,28X17X1 39156A 39156-2583 1
PAD,DIAG CONNECTOR 39156B 39156-2584 1
PAD,20X20X1 39156C 39156-2729 2
COVER-SEAL,ABS CONNECTOR 49016 49016-0689 1
RIVET,HOLE 8MM 92039 92039-0014 1
RIVET 92039A 92039-0015 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BOLT,SOCKET,6X12 92154 92154-2355 2
BOLT,SOCKET,6X10 92154A 92154-2667 2
BOLT,SOCKET,6X10 92154B 92154-4298 2
CLAMP,L=60 92171 92171-0652 1
SCREW,5X10 92172 92172-0864 2
CLAMP,CLIP 92173 92173-0127 1
CLAMP,12MM DIA. 92173A 92173-0736 7
CLAMP 92173B 92173-0861 6
CLAMP,CABLE CLIP 92173C 92173-1022 1
CLAMP,CLIP,TAIL LAMP,ETC 92173D 92173-1429 1
CLAMP 92173E 92173-2198 2
CLAMP 92173F 92173-2199 2
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 2
BOLT-FLANGED,6X16 130B 130BA0616 2
