Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56054
56054A
56054B
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076L
57001

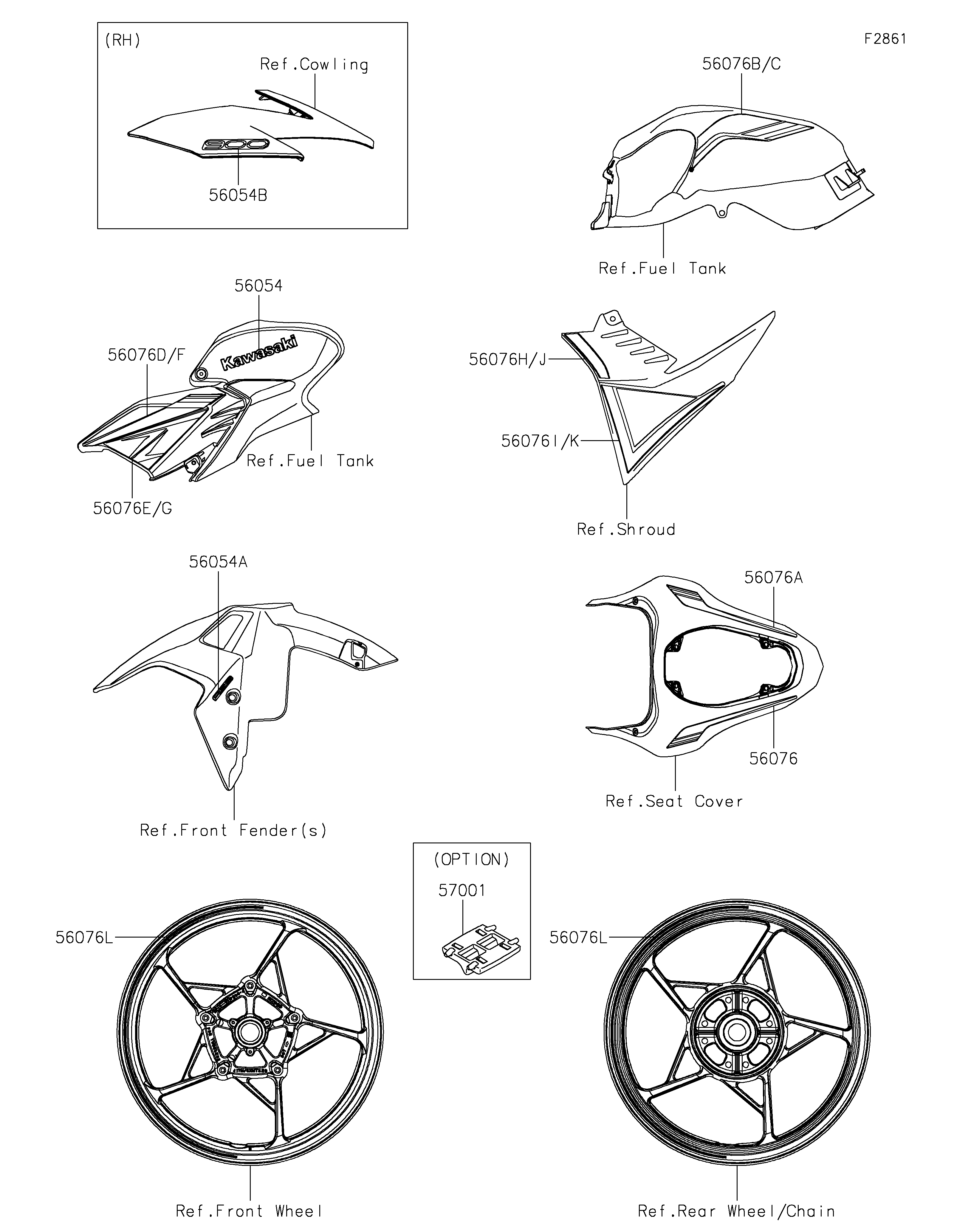

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | ||
| MARK,FR FENDER,ABS | 56054A | 56054-1413 | 2 | ||
| MARK,UPP COWL.,900 | 56054B | 56054-2890 | 1 | ||
| PATTERN,TAIL COVER,LH | 56076 | 56076-0871 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076A | 56076-0872 | 1 | ||
| PATTERN,FUEL TANK,LH | 56076B | 56076-2128 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076C | 56076-2129 | 1 | ||
| PATTERN,TANK COVER,LH,UPP | 56076D | 56076-2130 | 1 | ||
| PATTERN,TANK COVER,LH,LWR | 56076E | 56076-2131 | 1 | ||
| PATTERN,TANK COVER,RH,UPP | 56076F | 56076-2132 | 1 | ||
| PATTERN,TANK COVER,RH,LWR | 56076G | 56076-2133 | 1 | ||
| PATTERN,SHROUD,LH,UPP | 56076H | 56076-2134 | 1 | ||
| PATTERN,SHROUD,LH,LWR | 56076I | 56076-2135 | 1 | ||
| PATTERN,SHROUD,RH,UPP | 56076J | 56076-2136 | 1 | ||
| PATTERN,SHROUD,RH,LWR | 56076K | 56076-2137 | 1 | ||
| PATTERN,WHEEL,GRN/BLK,6X700 | 56076L | 56076-2166 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,ABS | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWL.,900 | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH,UPP | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH,LWR | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH,UPP | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH,LWR | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH,UPP | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH,LWR | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH,UPP | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH,LWR | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GRN/BLK,6X700 | |
| REF # | 56076L |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
