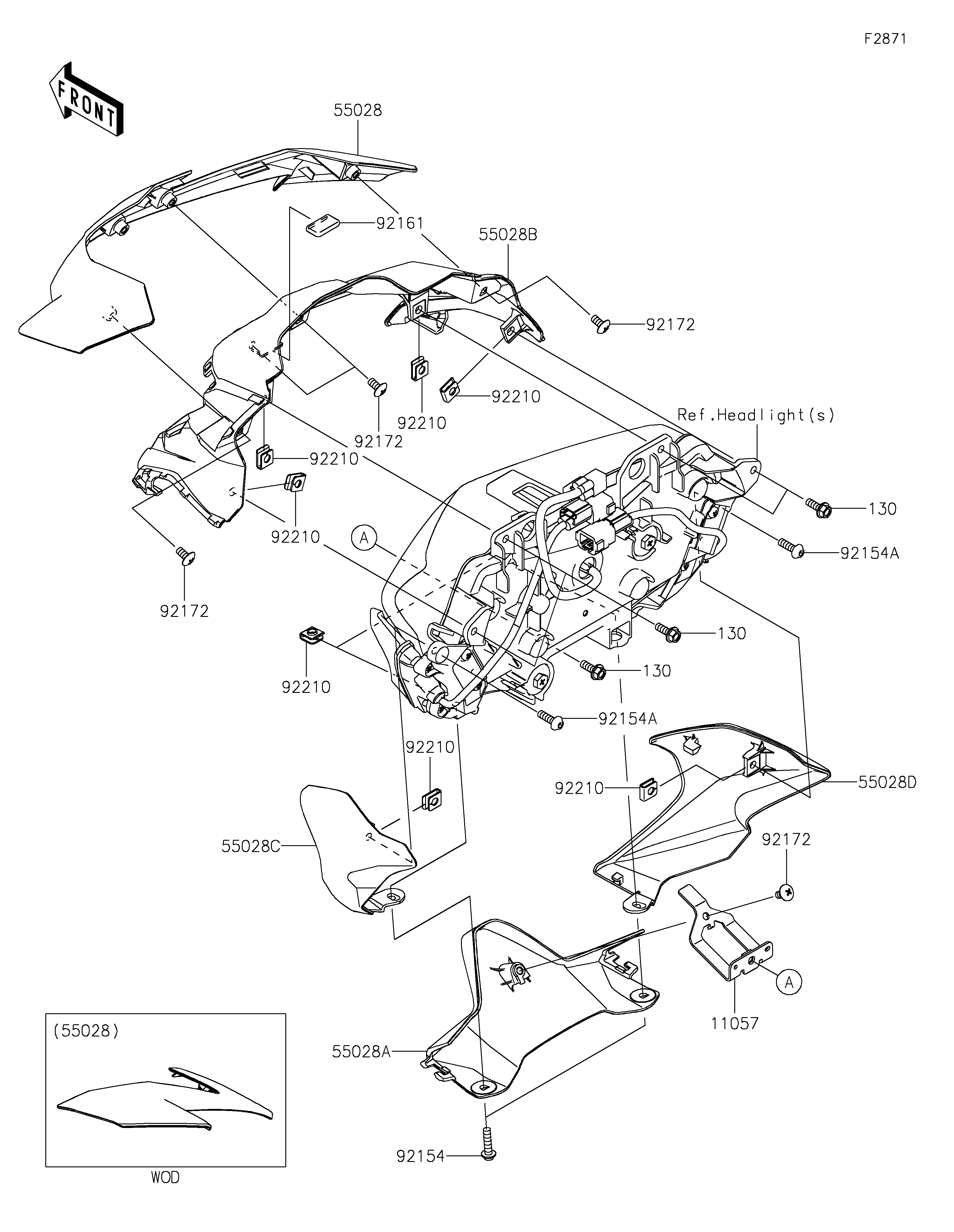

Parts Diagrams |
11057
55028
55028A
55028B
55028C
55028D
92154
92154A
92154A
92161
92172
92172
92172
92172
92210
92210
92210
92210
92210
92210
92210
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-2669 | 1 | ||
| COWLING,UPP,M.S.BLACK | 55028 | 55028-0703-660 | 1 | ||
| COWLING,LWR | 55028A | 55028-0704 | 1 | ||
| COWLING,INNER | 55028B | 55028-0705 | 1 | ||
| COWLING,UPP,SIDE,LH,C.L.GREEN | 55028C | 55028-0706-51P | 1 | ||
| COWLING,UPP,SIDE,RH,C.L.GREEN | 55028D | 55028-0707-51P | 1 | ||
| BOLT,SOCKET,5X20 | 92154 | 92154-0829 | 2 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-4294 | 2 | ||
| DAMPER,12X23 | 92161 | 92161-1367 | 1 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 5 | ||
| NUT | 92210 | 92210-0571 | 8 | ||
| BOLT-FLANGED,5X14 | 130 | 130BA0514 | 5 |
| BRACKET | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,M.S.BLACK | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,SIDE,LH,C.L.GREEN | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,SIDE,RH,C.L.GREEN | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,12X23 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
