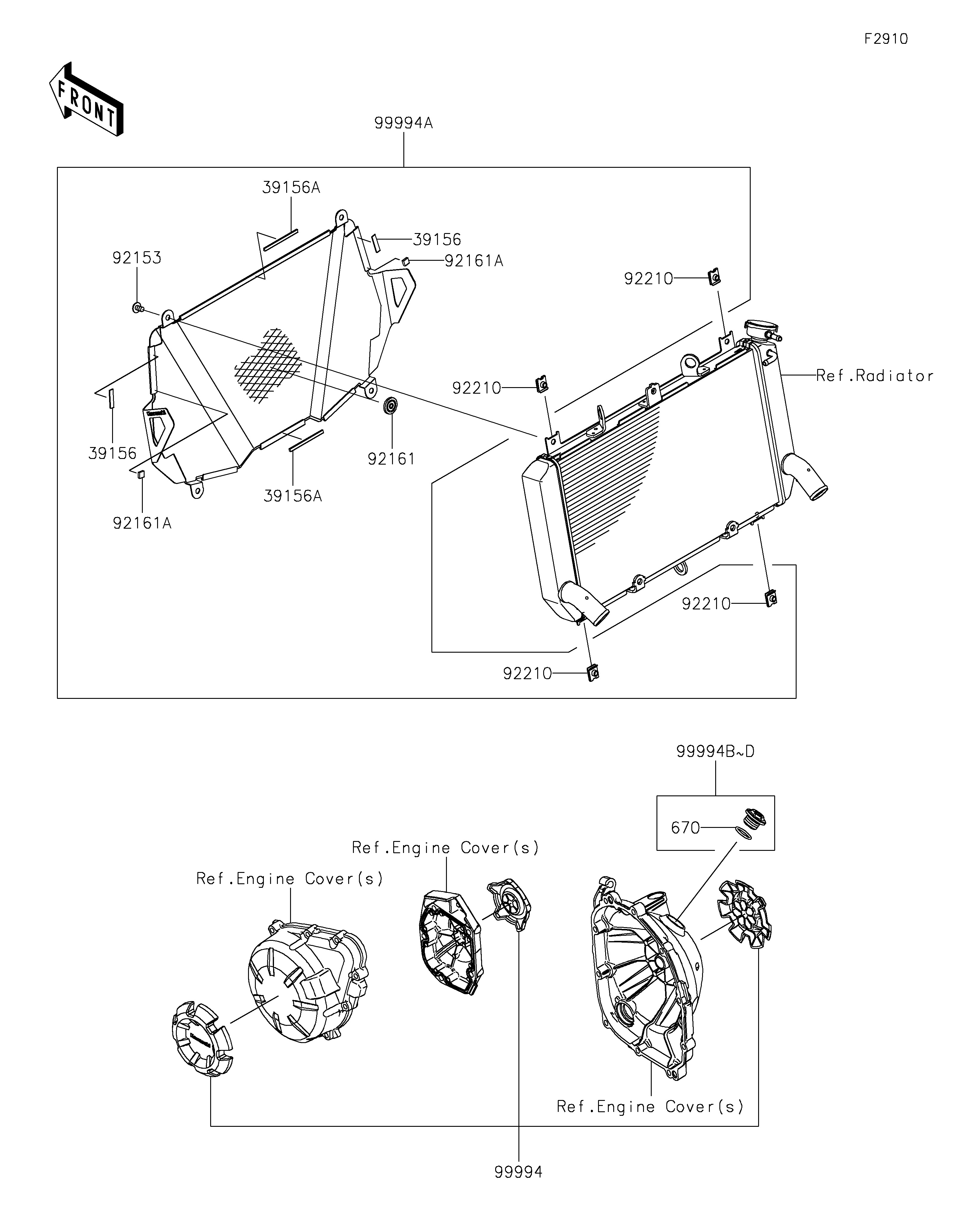

2022 Z900 SE - Accessory(ENG. Cover Ring and Cap)
39156
39156
39156A
39156A
92153
92161
92161A
92161A
92210
92210
92210
92210
99994
99994A
99994B
99994C
99994D
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,6X25X1 | 39156 | 39156-2167 | 2 | ||
| PAD,4X60X2 | 39156A | 39156-2189 | 2 | ||
| BOLT,SOCKET,6X10 | 92153 | 92153-1527 | 4 | ||
| DAMPER,8X22X10 | 92161 | 92161-1685 | 1 | ||
| DAMPER | 92161A | 92161-1976 | 2 | ||
| NUT | 92210 | 92210-1518 | 4 | ||
| KIT-ACCESSORY,ENG. COVER RING | 99994 | 99994-0868 | 1 | ||
| KIT-ACCESSORY,SE RAD. SCREEN | 99994A | 99994-0871 | 1 | ||
| KIT-ACC,OIL FILLER CAP,WHITE | 99994B | 99994-1018 | 1 | ||
| KIT-ACC,OIL FILLER CAP,BLACK | 99994C | 99994-1229 | 1 | ||
| KIT-ACC,OIL FILLER CAP,GOLD | 99994D | 99994-1245 | 1 | ||
| O RING,20MM | 670 | 670B2020 | 1 |
| PAD,6X25X1 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD,4X60X2 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X22X10 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,ENG. COVER RING | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,SE RAD. SCREEN | |
| REF # | 99994A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT-ACC,OIL FILLER CAP,WHITE | |
| REF # | 99994B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT-ACC,OIL FILLER CAP,BLACK | |
| REF # | 99994C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT-ACC,OIL FILLER CAP,GOLD | |
| REF # | 99994D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,20MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
