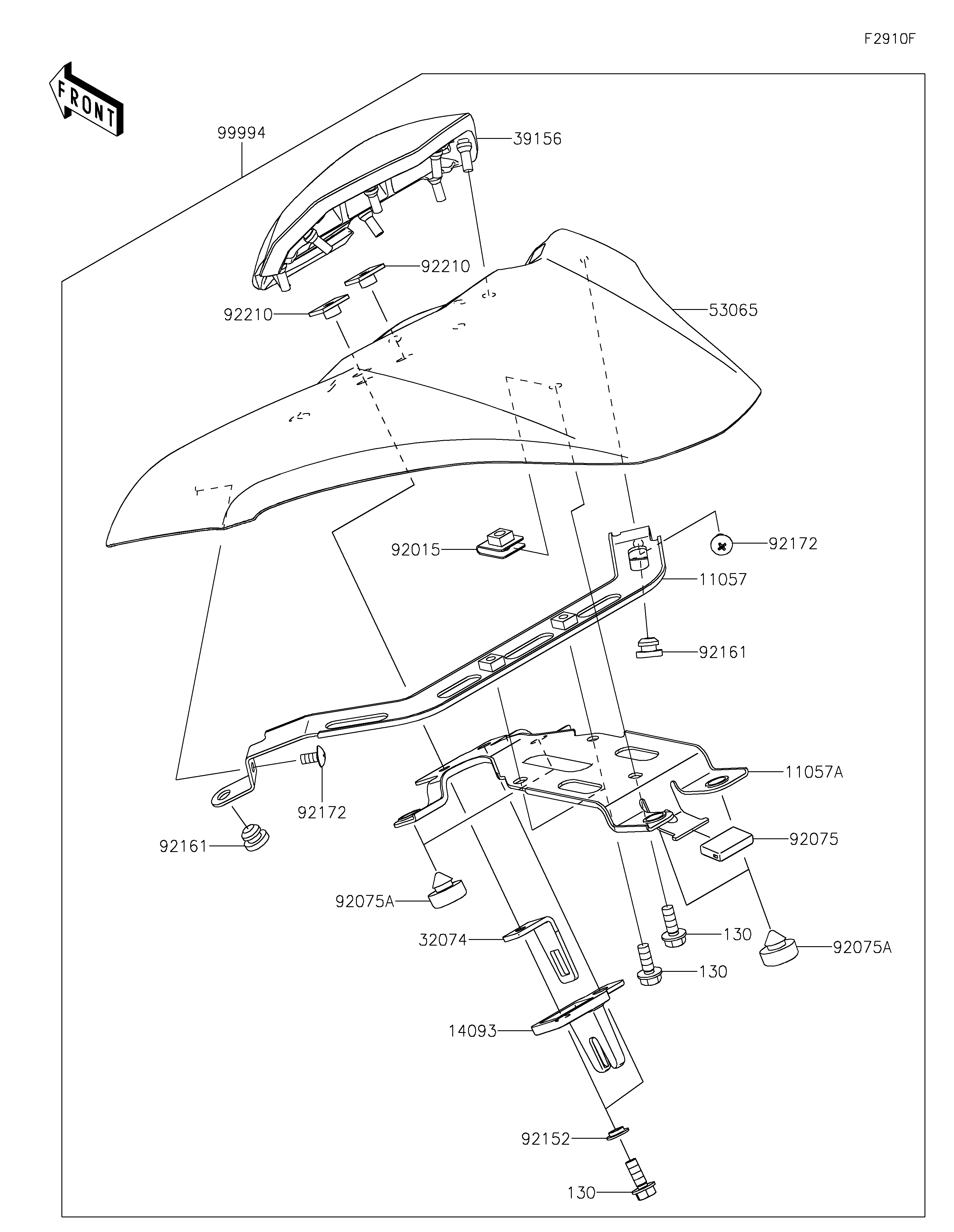

2022 Z900 SE - Accessory(Pillion Seat Cover)
11057
11057A
14093
32074
39156
53065
92015
92075
92075A
92075A
92152
92161
92161
92172
92172
92210
92210
99994
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-0269 | 1 | ||
| BRACKET,MOUNT | 11057A | 11057-0270 | 1 | ||
| COVER | 14093 | 14093-0515 | 1 | ||
| BRACKET-LOCK | 32074 | 32074-0017 | 1 | ||
| PAD | 39156 | 39156-2122 | 1 | ||
| COVER SEAT,C.L.GREEN | 53065 | 53065-0040-51P | 1 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1531 | 1 | ||
| DAMPER | 92075 | 92075-1446 | 1 | ||
| DAMPER,10X20X8 | 92075A | 92075-1927 | 4 | ||
| COLLAR | 92152 | 92152-0250 | 2 | ||
| DAMPER | 92161 | 92161-1084 | 2 | ||
| SCREW,5X10 | 92172 | 92172-0864 | 2 | ||
| NUT,PLATE,6MM | 92210 | 92210-1352 | 2 | ||
| PILLION SEAT COVER,C.L.GRN | 99994 | 99994-0835-51P | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 5 |
