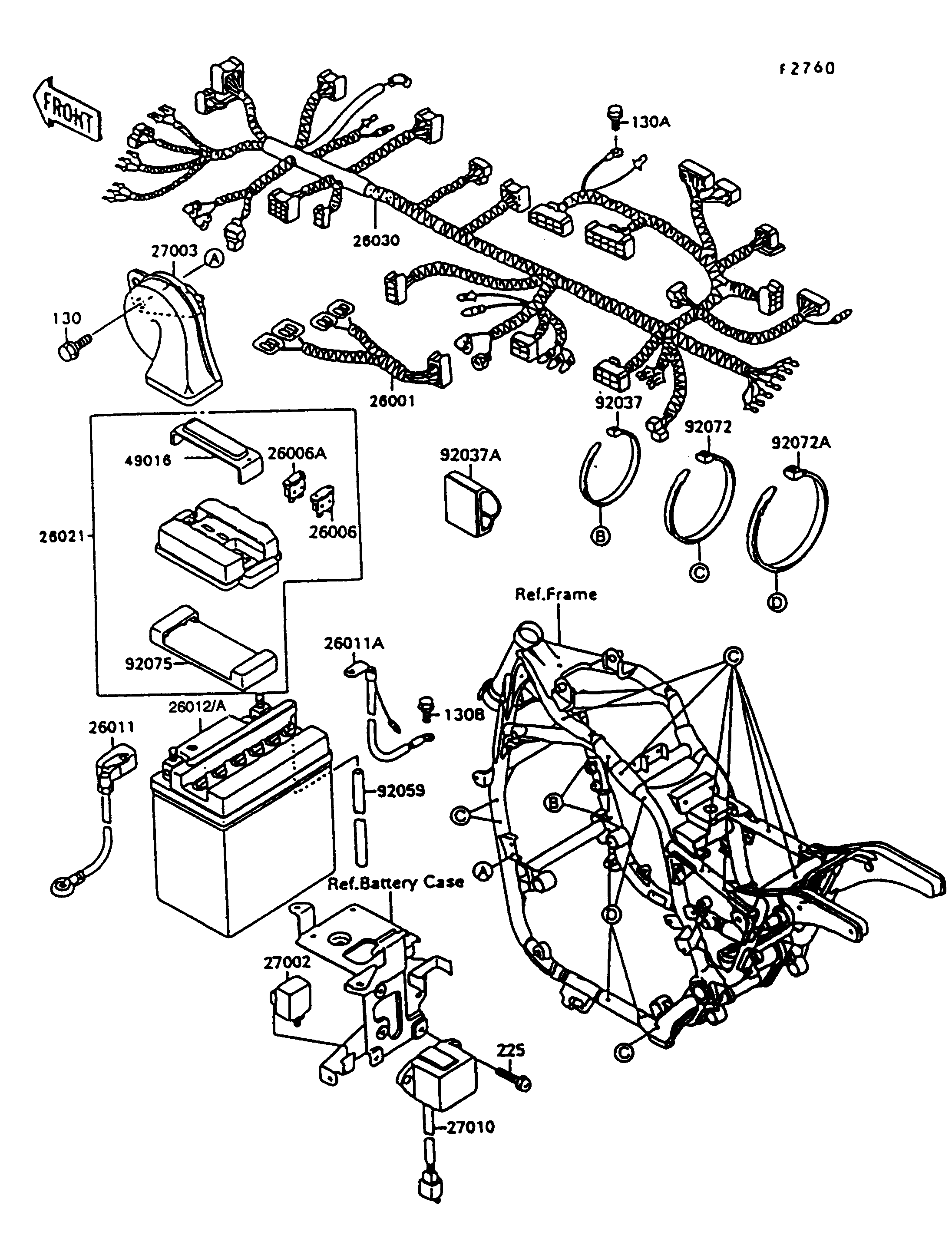

1998 Vulcan 1500 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
225
26001
26006
26006A
26011
26011A
26012A
26021
26030
27002
27003
27010
49016
92037
92037A
92059
92072
92072A
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10,BLACK 130 130C0610 2
BOLT-FLANGED 130A 130J0610 1
BOLT-FLANGED,6X10 130B 130V0610 1
SCREW-PAN-WSP-CROS 225 225B0620 2
HARNESS,IGNITION 26001 26001-1862 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(+) 26011 26011-1391 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1392 1
BATTERY,Y50-N18L-A,12V 20AH 26012A 26012-1339 1
JUNCTION BOX 26021 26021-1089 1
HARNESS,MAIN 26030 26030-1331 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1053 1
HORN,LOW TONE 27003 27003-1264 1
SWITCH,RESERVE LIGHTING 27010 27010-1069 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP,BAND,L=137 92037 92037-1817 2
CLAMP,WIRING HARNESS 92037A 92037-1954 4
TUBE,5X8X570 92059 92059-1840 1
BAND,L=185 92072 92072-1195 10
BAND,L=365 92072A 92072-1197 4
DAMPER,JUNCTION BOX 92075 92075-1688 1
