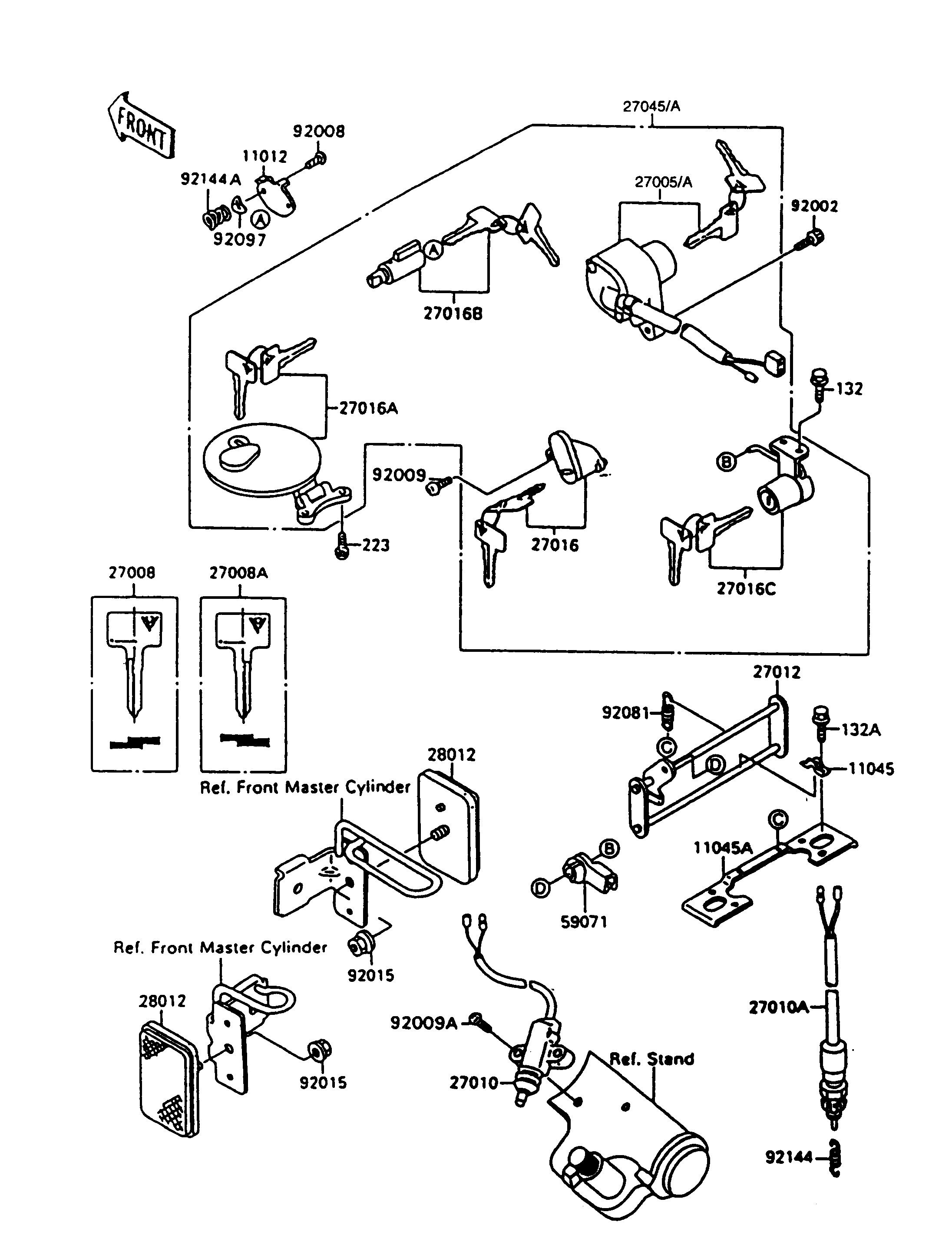

1998 Vulcan 1500 - Ignition Switch/Locks/Reflectors
132
132A
223
11012
11045
11045A
27005A
27008
27008A
27010
27010A
27012
27016
27016A
27016B
27016C
27045A
28012
28012
59071
92002
92008
92009
92009A
92015
92015
92081
92097
92144
92144A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0608 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132J0612 | 4 | ||
SCREW-PAN-WS-CROS | 223 | 223B0410 | 2 | ||
CAP,STEERING LOCK | 11012 | 11012-1586 | 1 | ||
BRACKET,SEAT HOOK | 11045 | 11045-1700 | 2 | ||
BRACKET,SEAT HOOK | 11045A | 11045-1701 | 1 | ||
SWITCH-ASSY-IGNITION | 27005A | 27005-1205 | 1 | ||
KEY-LOCK,BLANK,#A | 27008 | 27008-1138 | 1 | (OPTION) | |
KEY-LOCK,BLANK,#B | 27008A | 27008-1139 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-1223 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-1238 | 1 | ||
HOOK,SEAT | 27012 | 27012-1371 | 1 | ||
LOCK-ASSY,HELMET | 27016 | 27016-5129 | 1 | ||
LOCK-ASSY,FUEL TANK COVER | 27016A | 27016-5130 | 1 | ||
LOCK-ASSY,STEERING | 27016B | 27016-5131 | 1 | ||
LOCK-ASSY,SEAT | 27016C | 27016-5132 | 1 | ||
SWITCH-ASSY | 27045A | 27045-5046 | 1 | ||
REFLECTOR-REFLEX,FR | 28012 | 28012-1009 | 2 | ||
JOINT | 59071 | 59071-1103 | 1 | ||
BOLT,SOCKET,5X12 | 92002 | 92002-1173 | 1 | ||
SCREW,3.51MM | 92008 | 92008-007 | 1 | ||
SCREW,5X12 | 92009 | 92009-1296 | 1 | ||
SCREW,5X20 | 92009A | 92009-1459 | 2 | ||
NUT,FLANGED,5MM | 92015 | 92015-1656 | 2 | ||
SPRING,HOOK RETURN | 92081 | 92081-1466 | 2 | ||
WASHER,WAVE | 92097 | 92097-003 | 1 | ||
SPRING,REAR BRAKE SWITCH | 92144 | 92144-1141 | 1 | ||
SPRING,STEERING LOCK | 92144A | 92144-1222 | 1 |
