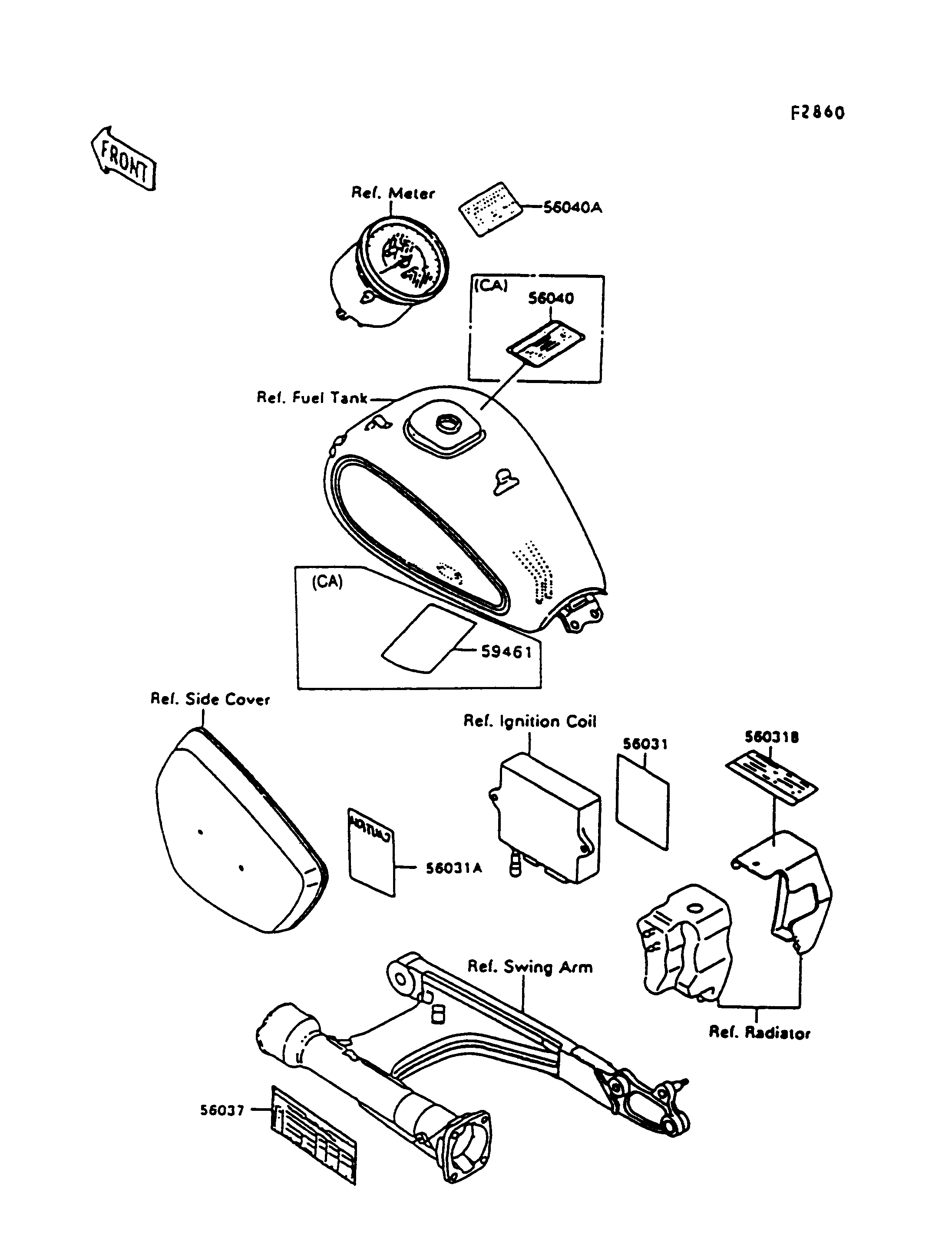

56031
56031A
56031B
56037
56040A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,DAILY SAFETY 56031 56031-1559 1
LABEL-MANUAL,BATTERY VENT 56031A 56031-1560 1
LABEL-MANUAL,OIL&OIL FILTER 56031B 56031-1901 1
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1698 1
LABEL-WARNING,BREAK IN CAUTION 56040A 56040-1220 1
LABEL-WARNING,EVAPO 56040 56040-1121 1
LABEL-CERTIFICATION,EVAPO ROUT 59461 59461-1921 1
