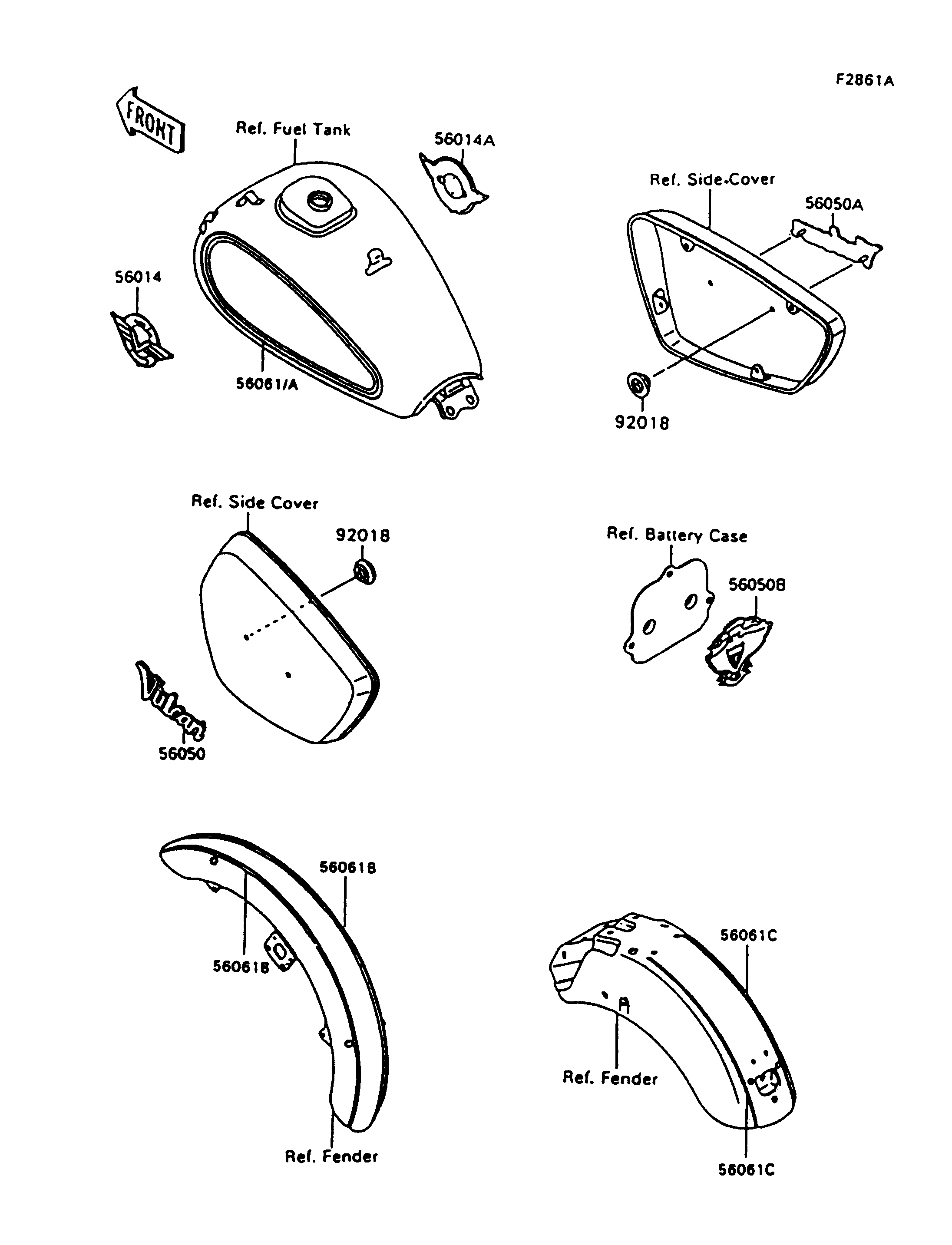

1996 Vulcan 1500 - Decals(Blue/Silver)(VN1500-A10)

56014
56014A
56050
56050A
56050B
56061
56061A
56061B
56061B
56061C
56061C
92018
92018
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH,FOR EBONY 56014 56014-1213 1
EMBLEM,FUEL TANK,RH,FOR EBONY 56014A 56014-1214 1
MARK,SIDE COVER,LH 56050 56050-1006 1
MARK,SIDE COVER,RH 56050A 56050-1007 1
MARK,BACK REST COVER,BLUE&EBON 56050B 56050-1009 1
PATTERN,FUEL TANK,LH 56061 56061-1472 1
PATTERN,FUEL TANK,RH 56061A 56061-1473 1
PATTERN,FR FENDER 56061B 56061-1474 2
PATTERN,RR FENDER 56061C 56061-1475 2
NUT,PUSH,3MM 92018 92018-005 4
